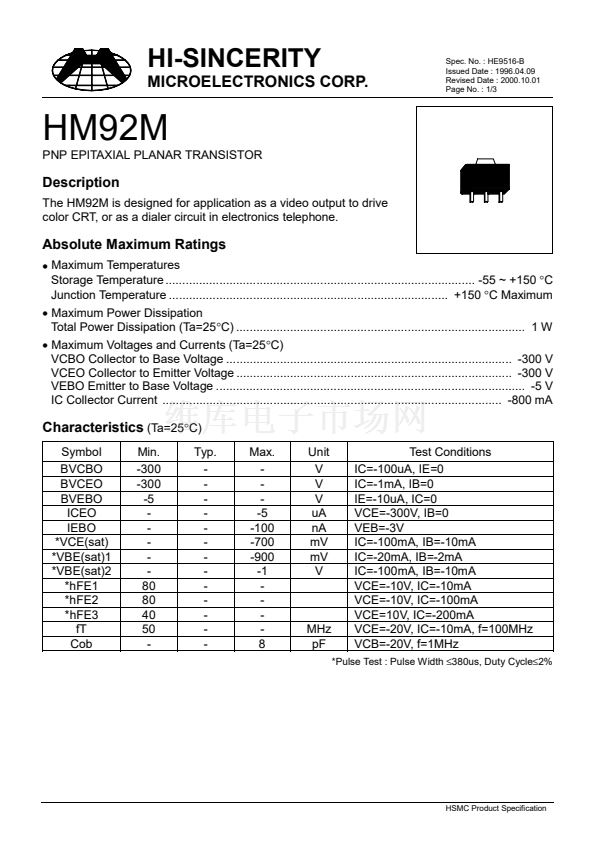

Total Power Dissipation (Ta=25擄C) ...................................................................................... 1 W
鈥?/div>
Maximum Voltages and Currents (Ta=25擄C)
VCBO Collector to Base Voltage ..................................................................................... -300 V
VCEO Collector to Emitter Voltage .................................................................................. -300 V
VEBO Emitter to Base Voltage ............................................................................................ -5 V
IC Collector Current ..................................................................................................... -800 mA
Characteristics
(Ta=25擄C)
Symbol
BVCBO
BVCEO
BVEBO
ICEO
IEBO
*VCE(sat)
*VBE(sat)1
*VBE(sat)2
*hFE1
*hFE2
*hFE3
fT
Cob
Min.
-300
-300
-5
-
-
-
-
-
80
80
40
50
-
Typ.
-
-
-
-
-
-
-
-
-
-
-
-
-
Max.
-
-
-
-5
-100
-700
-900
-1
-
-
-
-
8
Unit
V
V
V
uA
nA
mV
mV
V
Test Conditions
IC=-100uA, IE=0
IC=-1mA, IB=0
IE=-10uA, IC=0
VCE=-300V, IB=0
VEB=-3V
IC=-100mA, IB=-10mA
IC=-20mA, IB=-2mA
IC=-100mA, IB=-10mA
VCE=-10V, IC=-10mA
VCE=-10V, IC=-100mA
VCE=10V, IC=-200mA
VCE=-20V, IC=-10mA, f=100MHz
VCB=-20V, f=1MHz
*Pulse Test : Pulse Width
鈮?80us,
Duty Cycle鈮?%
MHz
pF
HSMC Product Specification
