HLMT-QH00 Datasheet

  • HLMT-QH00

  • Subminiature High Performance AlInGaP LED Lamps

  • 7頁

  • AGILENT   AGILENT

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

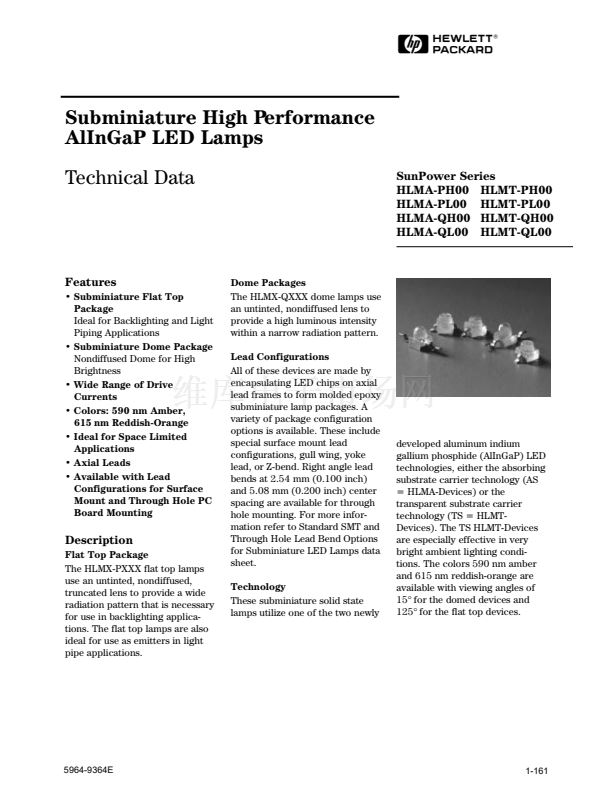

H
Subminiature High Performance
AlInGaP LED Lamps
Technical Data
SunPower Series
HLMA-PH00 HLMT-PH00
HLMA-PL00 HLMT-PL00
HLMA-QH00 HLMT-QH00
HLMA-QL00 HLMT-QL00
Features
鈥?/div>
Subminiature Flat Top
Package
Ideal for Backlighting and Light
Piping Applications
鈥?/div>
Subminiature Dome Package
Nondiffused Dome for High
Brightness
鈥?Wide Range of Drive
Currents
鈥?Colors: 590 nm Amber,
615 nm Reddish-Orange
鈥?Ideal for Space Limited
Applications
鈥?Axial Leads
鈥?Available with Lead
Configurations for Surface
Mount and Through Hole PC
Board Mounting
Dome Packages
The HLMX-QXXX dome lamps use
an untinted, nondiffused lens to
provide a high luminous intensity
within a narrow radiation pattern.
Lead Configurations
All of these devices are made by
encapsulating LED chips on axial
lead frames to form molded epoxy
subminiature lamp packages. A
variety of package configuration
options is available. These include
special surface mount lead
configurations, gull wing, yoke
lead, or Z-bend. Right angle lead
bends at 2.54 mm (0.100 inch)
and 5.08 mm (0.200 inch) center
spacing are available for through
hole mounting. For more infor-
mation refer to Standard SMT and
Through Hole Lead Bend Options
for Subminiature LED Lamps data
sheet.
Technology
These subminiature solid state
lamps utilize one of the two newly
Description
Flat Top Package
The HLMX-PXXX flat top lamps
use an untinted, nondiffused,
truncated lens to provide a wide
radiation pattern that is necessary
for use in backlighting applica-
tions. The flat top lamps are also
ideal for use as emitters in light
pipe applications.
developed aluminum indium
gallium phosphide (AlInGaP) LED
technologies, either the absorbing
substrate carrier technology (AS
= HLMA-Devices) or the
transparent substrate carrier
technology (TS = HLMT-
Devices). The TS HLMT-Devices
are especially effective in very
bright ambient lighting condi-
tions. The colors 590 nm amber
and 615 nm reddish-orange are
available with viewing angles of
15擄 for the domed devices and
125擄 for the flat top devices.
5964-9364E
1-161

HLMT-QH00 產品屬性

  • HLMx-Qx00/Px00

  • 1,000

  • 光電元件

  • LED -

  • -

  • 紅

  • 800mcd

  • 2V

  • 20mA

  • 615nm

  • 621nm

  • 15°

  • 透明

  • 圓形，1.78mm

  • 軸向，扁平引線

  • 1.99mm L x 2.21mm W

  • 2.92mm

  • 通孔，軸向

  • 散裝

  • 800 mlm
