HEDS-1500 Datasheet

  • HEDS-1500

  • 655 nm Precision Optical Reflective Sensor

  • 161.39KB

  • 6頁

  • AGILENT   AGILENT

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

655 nm Precision Optical
Reflective Sensor
Technical Data
HEDS-1500
Features
鈥?Focused Emitter and
Detector in a Single Package
鈥?655 nm Visible Emitter
鈥?0.178 mm (0.007) Resolution
鈥?TO-5 Miniature Sealed
Package
鈥?Photodiode Output
emitter and a matched I.C. photo-
detector. A bifurcated aspheric
lens is used to image the active
areas of the emitter and the
detector to a single spot 4.27 mm
(0.168 in.) in front of the pack-
age. The output signal is a current
generated by the photodiode.
Applications
Applications for the HEDS-1500
include bar code scanning,
pattern recognition and verifica-
tion, object sizing, optical limit
switching, tachometry, textile
thread counting and defect
detection, dimensional monitor-
ing, line locating, paper edge
detection, and any application
where precision optical reflective
sensing is desired.
Mechanical
Considerations
The HEDS-1500 is packaged in a
high profile 8 pin TO-5 metal can
with a glass window. The emitter
and photodetector chips are
mounted on the header at the
base of the package. Positioned
above these active elements is a
Description
The HEDS-1500 is a fully inte-
grated module designed for
applications requiring optical
reflective sensing. The module
contains a 655 nm visible LED
Package Dimensions
MAXIMUM SIGNAL POINT
9.40 (0.370)
8.51 (0.335)
5.08
(0.200)
0.86 (0.034)
0.73 (0.029)
C
L
REFERENCE PLANE
5.08
(0.200)
4.27 鹵 0.25
(0.168 鹵 0.010)
4.11
(0.162)
1.14 (0.045)
0.73 (0.029)
15.24 (0.600)
12.70 (0.500)
S.P.
12.0
(0.473)
R.P.
8.33 (0.328)
7.79 (0.307)
11.50 (0.453)
11.22 (0.442)
NOTES:
1. ALL DIMENSIONS IN MILLIMETERS AND (INCHES).
2. ALL UNTOLERANCED DIMENSIONS ARE FOR REFERENCE ONLY.
3. THE REFERENCE PLANE (R.P.) IS THE TOP SURFACE OF THE PACKAGE.
4. NICKEL CAN AND GOLD PLATED LEADS.
5. S.P. = SEATING PLANE.
6. THE LEAD DIAMETER IS 0.45 mm (0.018 IN.) TYP.

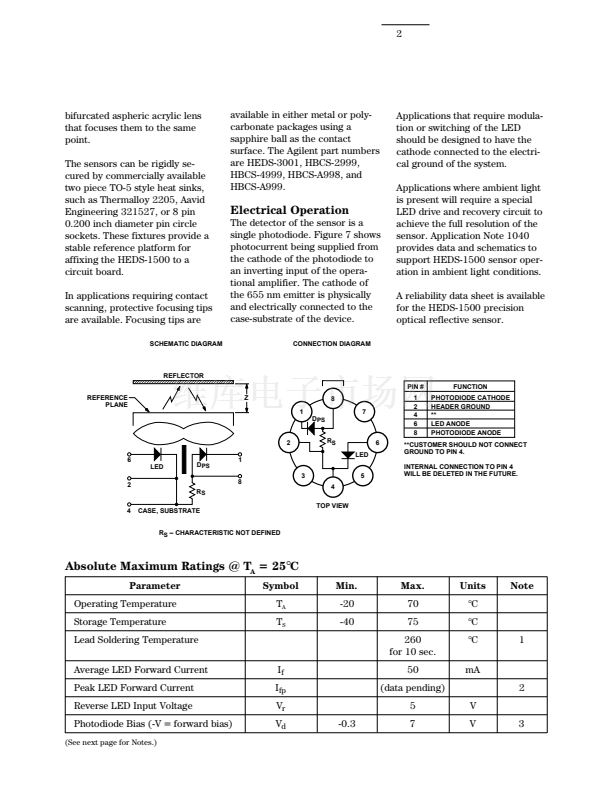

HEDS-1500 產品屬性

  • 50

  • 傳感器，轉換器

  • 光學 - 反射式 - 模擬輸出

  • -

  • 0.168"（4.27mm）

  • 反射

  • -

  • -

  • 50mA

  • 光電二極管

  • -

  • 通孔

  • TO-5

  • 散裝

  • -20°C ~ 70°C

  • 516-1270
