HEDS-1300 Datasheet

  • HEDS-1300

  • Optical Reflective Sensors

  • 8頁

  • AGILENT   AGILENT

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

H
Optical Reflective Sensors
Technical Data
HEDS-1200 High
Resolution Infrared
Sensor
HEDS-1300 Precision
Resolution Sensor
Features
鈥?Focused Emitter and
Detector in a Single Package
鈥?TO5 Package
鈥?Binning of Sensors by
Photocurrent (Ipr)
Description
Both the HEDS-1200 and HEDS-
1300 sensor are fully integrated
modules designed for applications
requiring optical reflective
sensing. The modules contain an
LED emitter (at the appropriate
wavelengths) and a matched I.C.
photodetector. A bifurcated
aspheric lens is used to image the
active areas of the emitter and the
detector to a single spot that
defines the resolution of the
sensor. The output signal is a cur-
rent generated by the photodiode.
Applications
鈥?Bar Code Scanning
鈥?Pattern Recognition and
Verification
鈥?Object Sizing
鈥?Optical Limit Switching
鈥?Optical/Surface Inspection
鈥?Tachometry
鈥?Edge/Line Sensing
鈥?Dimensional Monitoring
Selection Guide
Sensor
Part Number
Resolution
HEDS-1200
0.13 mm (0.005 in.)
820 nm
S.P.
HEDS-1300
0.19 mm (0.0075 in.)
700 nm
R.P.
Package Dimensions
MAXIMUM SIGNAL POINT 鈥?MSP
REFERENCE PLANE
LED Wavelength
9.40 (0.370)
8.51 (0.335)
5.08
(0.200)
12.0
(0.473)
C
L
1.14 (0.045)
0.73 (0.029)
5.08
(0.200)
4.27 鹵 0.25
(0.168 鹵 0.010)
Z
0.86 (0.034)
0.73 (0.029)
15.24 (0.600)
12.70 (0.500)
8.33 (0.328)
7.79 (0.307)
11.50 (0.453)
11.22 (0.442)
NOTES:
1. ALL DIMENSIONS IN MILLIMETERS AND (INCHES).
2. ALL UNTOLERANCED DIMENSIONS ARE FOR REFERENCE ONLY.
3. THE REFERENCE PLANE (R.P.) IS THE TOP SURFACE OF THE PACKAGE.
4. NICKEL CAN AND GOLD PLATED LEADS.
5. S.P. = SEATING PLANE.
6. THE LEAD DIAMETER IS 0.45 mm (0.018 IN.) TYP.

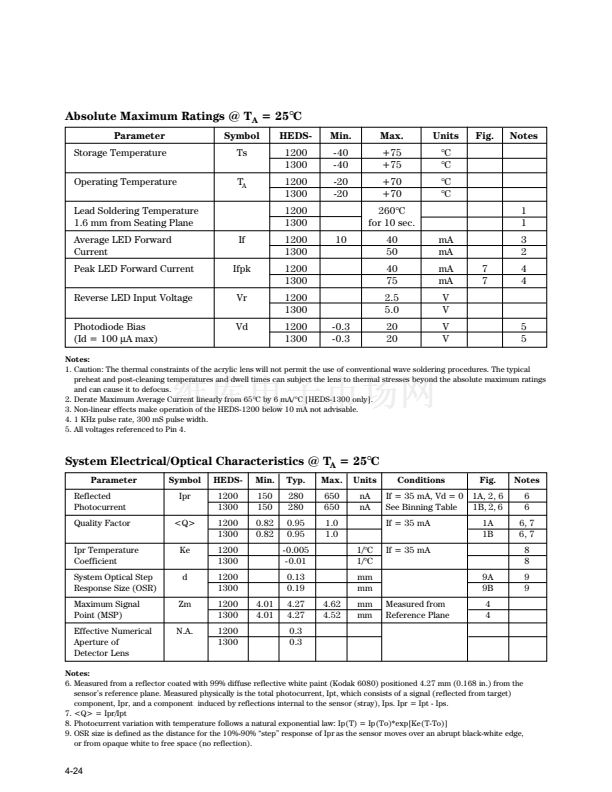

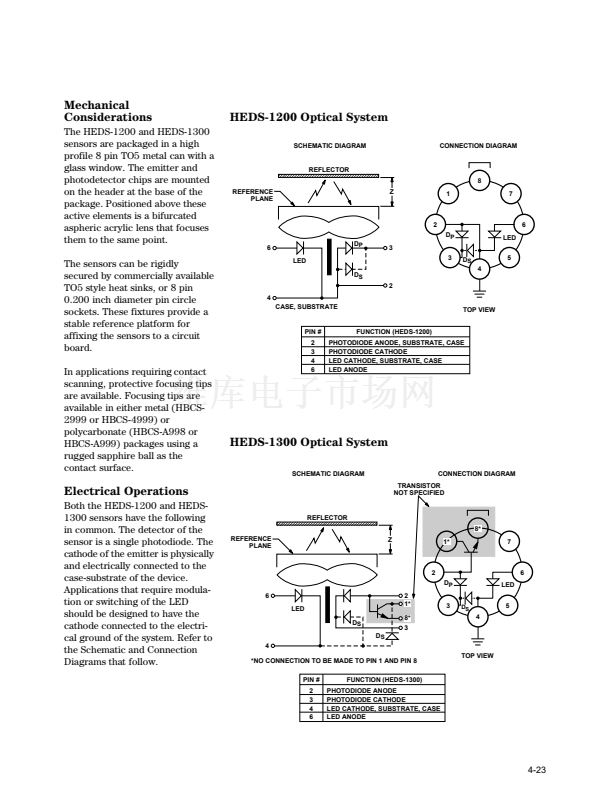

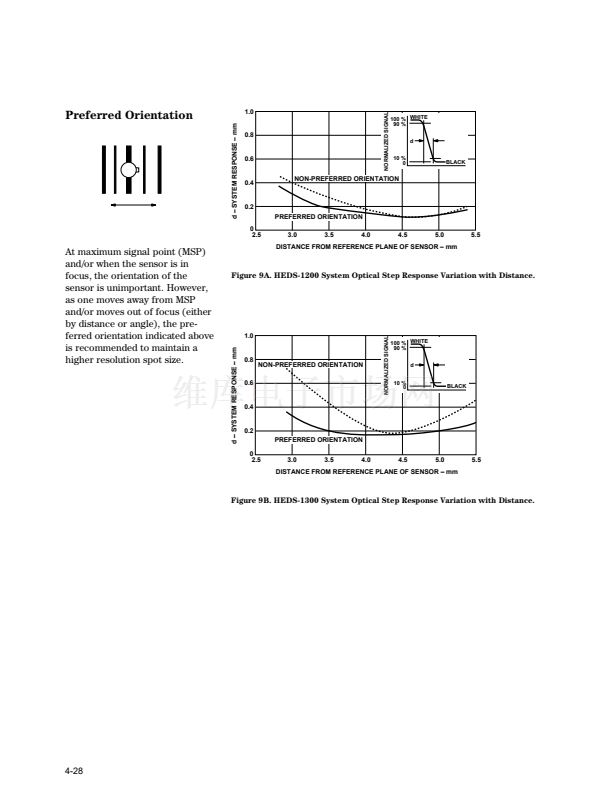

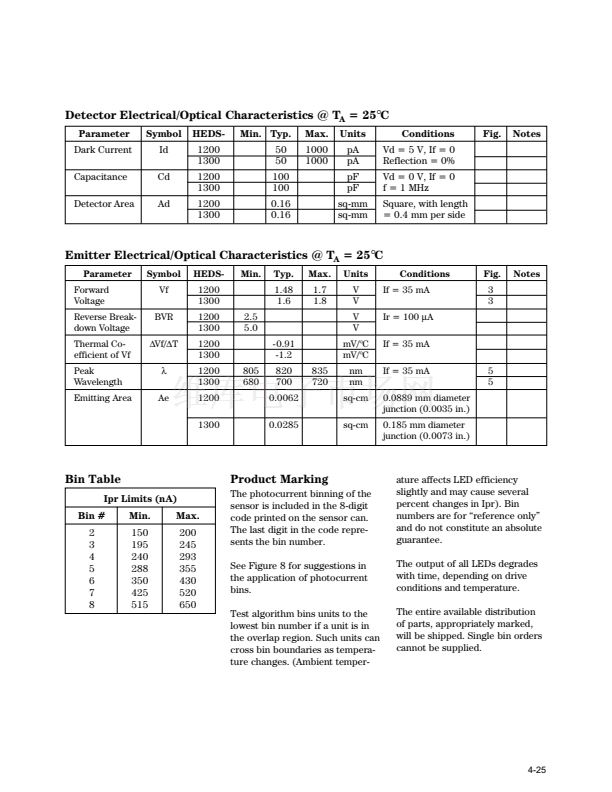

4-22
5965-5947E
