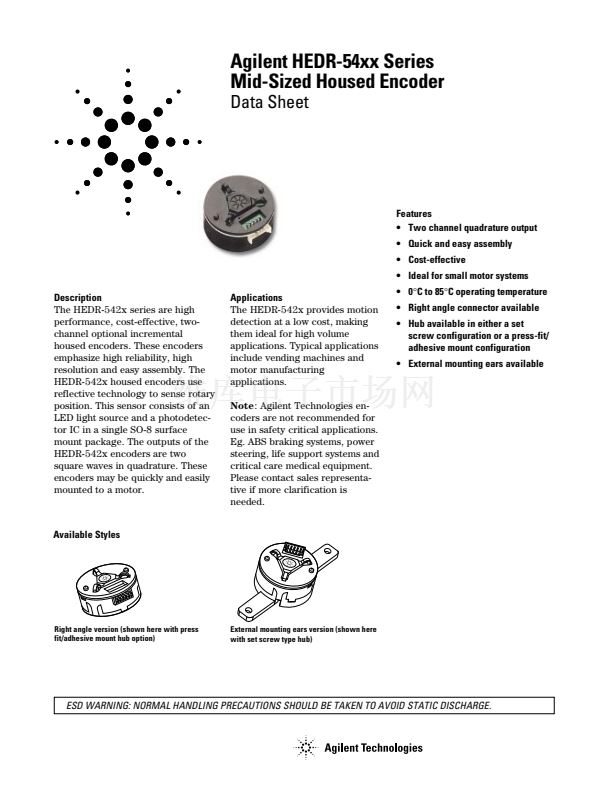

Agilent HEDR-54xx Series
Mid-Sized Housed Encoder
Data Sheet
Features
鈥?Two channel quadrature output
鈥?Quick and easy assembly
鈥?Cost-effective
鈥?Ideal for small motor systems
Description
The HEDR-542x series are high
performance, cost-effective, two-
channel optional incremental
housed encoders. These encoders
emphasize high reliability, high
resolution and easy assembly. The
HEDR-542x housed encoders use
reflective technology to sense rotary
position. This sensor consists of an
LED light source and a photodetec-
tor IC in a single SO-8 surface
mount package. The outputs of the
HEDR-542x encoders are two
square waves in quadrature. These
encoders may be quickly and easily
mounted to a motor.
Applications
The HEDR-542x provides motion
detection at a low cost, making
them ideal for high volume
applications. Typical applications
include vending machines and
motor manufacturing
applications.
Note:
Agilent Technologies en-
coders are not recommended for
use in safety critical applications.
Eg. ABS braking systems, power
steering, life support systems and
critical care medical equipment.
Please contact sales representa-
tive if more clarification is
needed.
鈥?0擄C to 85擄C operating temperature
鈥?Right angle connector available
鈥?Hub available in either a set
screw configuration or a press-fit/
adhesive mount configuration
鈥?External mounting ears available
Available Styles
Right angle version (shown here with press
fit/adhesive mount hub option)
External mounting ears version (shown here
with set screw type hub)
ESD WARNING: NORMAL HANDLING PRECAUTIONS SHOULD BE TAKEN TO AVOID STATIC DISCHARGE.

HEDR-5420-ES211 產品屬性

  • HEDR-542x

  • Product Obsolescence 30/Nov/2010

  • 105

  • 傳感器，轉換器

  • 編碼器

  • HEDR

  • 光學

  • 正交（增量）

  • 200

  • 5VDC

  • 4mm 開放式中心

  • 無

  • 無

  • 底座安裝，電機

  • 垂直

  • 端子引腳

  • -
