HE89820(S) Datasheet

  • HE89820(S)

  • 29.83KB

  • 2頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

KING BILLION ELECTRONICS CO.錛?LTD
椐?鍎?闆?瀛?鑲?錕?frac12; 鏈?闄?鍏?鍙?/div>
HE89820
HE80000 SERIES
A. HE89820 Introduction
HE89820 is a member of 8-bit Micro-controller series used for telephone communication developed by
King Billion Electronics Ltd. The built-in DTMF generator can generate the PSTN dialing tone directly.
It can be applicable as Small/ Medium class telephone or communication product etc..
The instruction set of HE89820 are quite easy to learn and simple to use. Only about thirty instructions
with four-type addressing mode are provided. Most of instructions take only 3 oscillator clocks (machine
cycles). The processing power is enough to most of battery operation system.
B. HE89820 Features
2.4V 鈥?5.5V
DC ~ 8MHz @ 5.0V
DC ~ 4MHz @ 2.4V
Internal ROM錛?/div>
8K Bytes(8K Program ROM)
Internal RAM錛?/div>
512 Bytes.
Dual Clock System
錛?/div>
Normal (Fast) clock錛?32.768K ~ 8MHz
Slow clock錛?/div>
32.768KHz
Operation Mode錛?/div>
DUAL銆丗AST銆丼LOW銆両DLE銆丼LEEP Mode.
With WDT (WATCH DOG TIMER) to prevent deadlock condition..
24 bit Bi-directional I/O port. Mask Option can select PUSH-PULL or OPEN DRAIN output mode
for each I/O pin.
Built-in DTMF Generator.
Two external interrupts and three internal timer interrupts.
Two 16-bit timer and one Time Base timer.
Instruction set錛?32 instructions, 4 addressing mode.9-bit DATA POINTER for RAM and 13-bit
TABLE POINTER for ROM.
Operation Voltage錛?/div>
System Clock錛?/div>

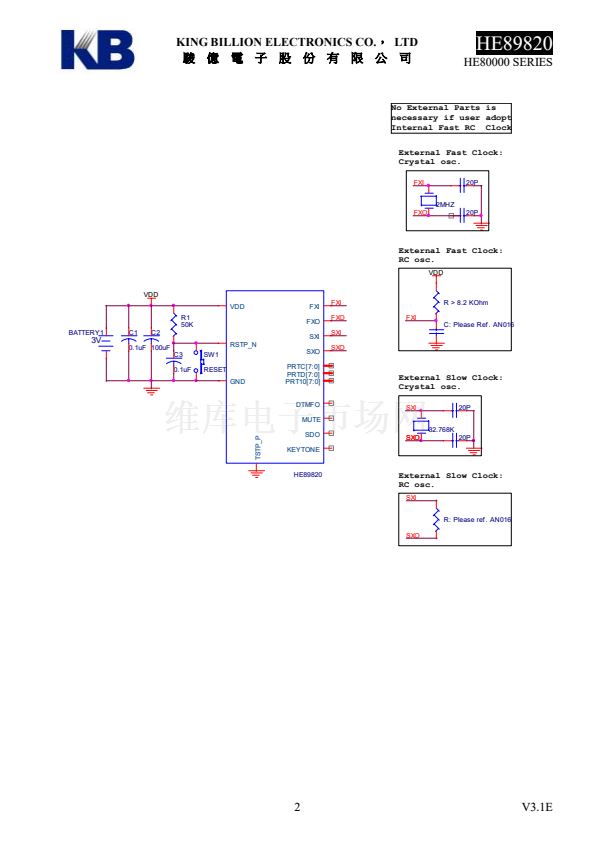

C. Application Circuit
1
V3.1E
