HE83R125(S) Datasheet

  • HE83R125(S)

  • 16頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

King Billion Electronics Co., Ltd
椐?/div>
鍎?/div>
闆?/div>
瀛?/div>
鑲?/div>
錕?frac12;
鏈?/div>
闄?/div>
鍏?/div>
鍙?/div>
HE83R125
HE80000 Series
- Table of Contents -
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
General Description ___________________________________________________________________1

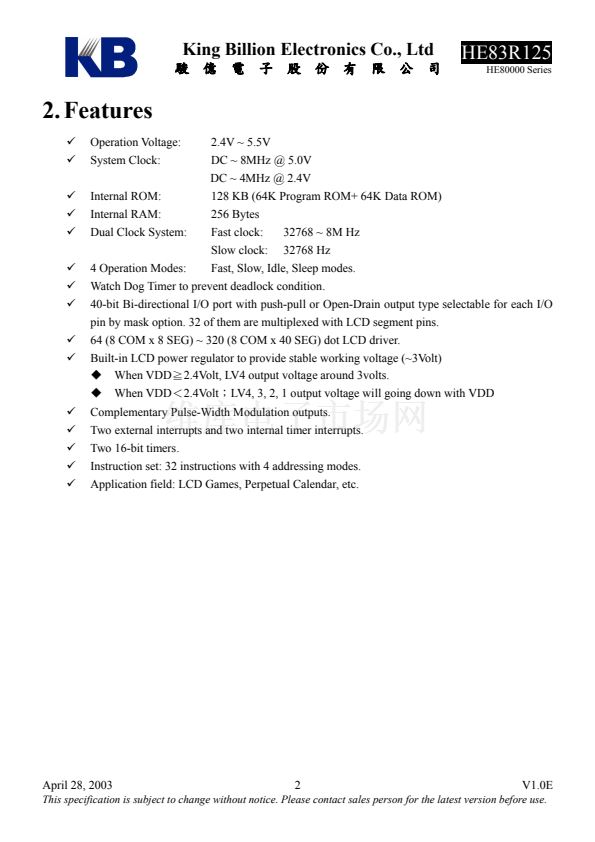

Features _____________________________________________________________________________2

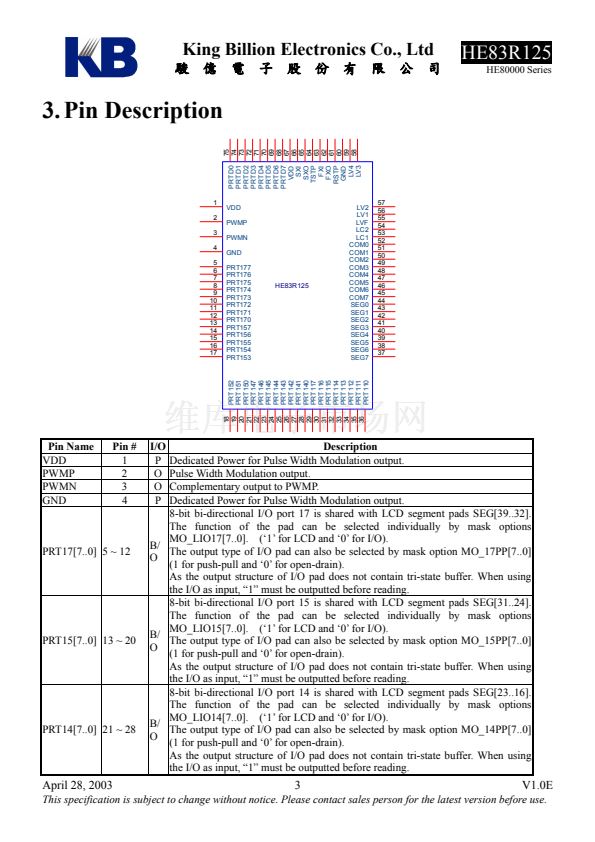

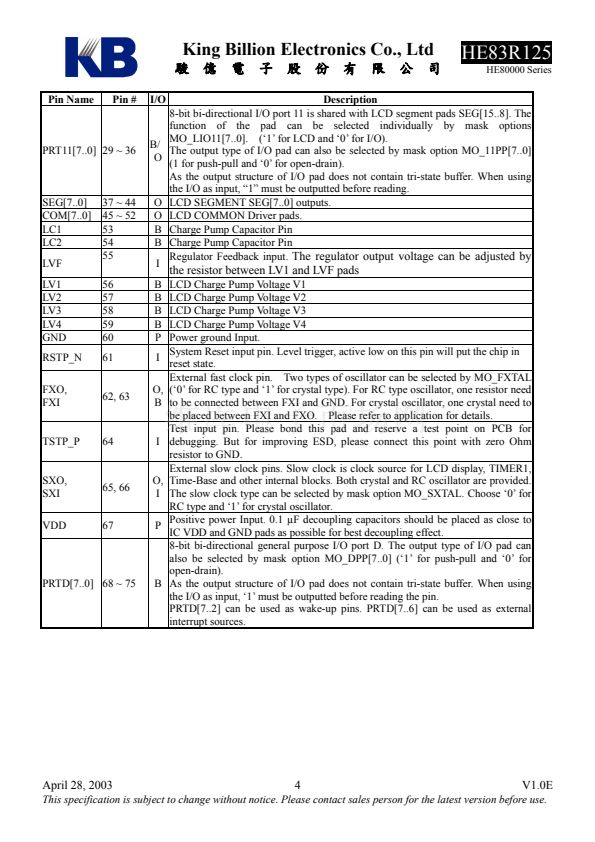

Pin Description _______________________________________________________________________2

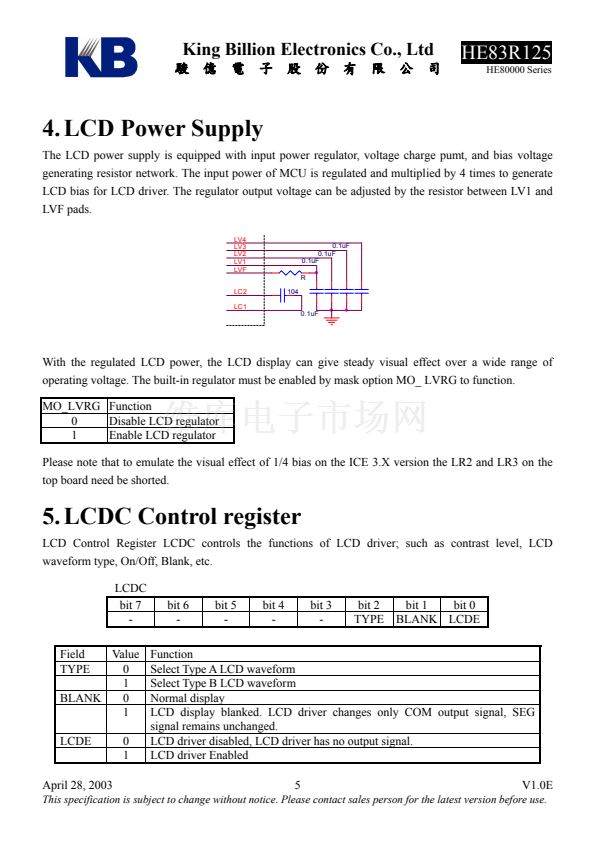

LCD Power Supply ____________________________________________________________________2
LCDC Control register_________________________________________________________________2
LCD RAM map_______________________________________________________________________2

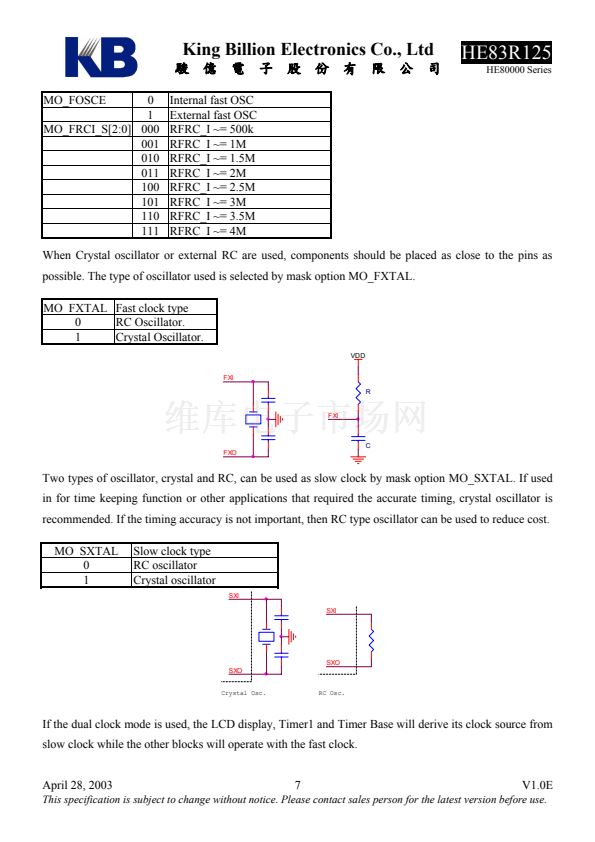

Oscillators ___________________________________________________________________________2

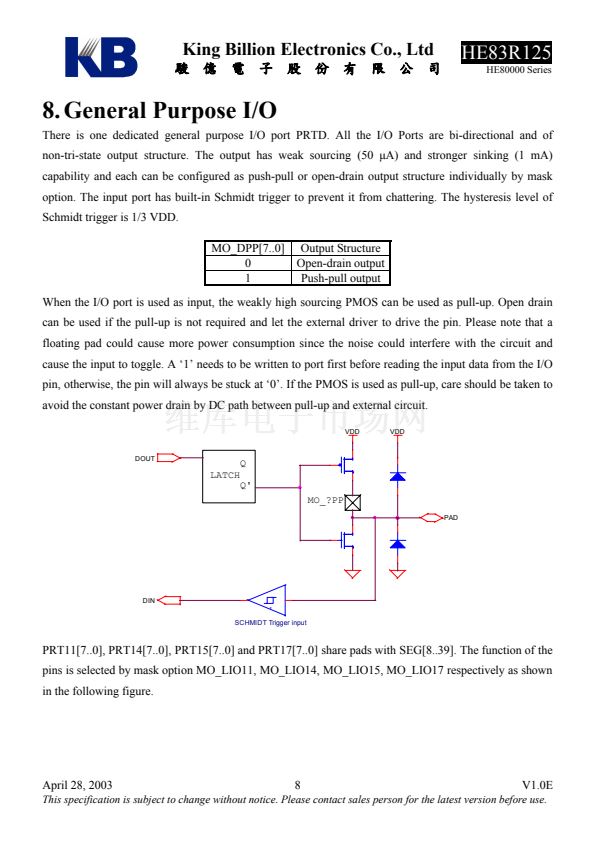

General Purpose I/O___________________________________________________________________2

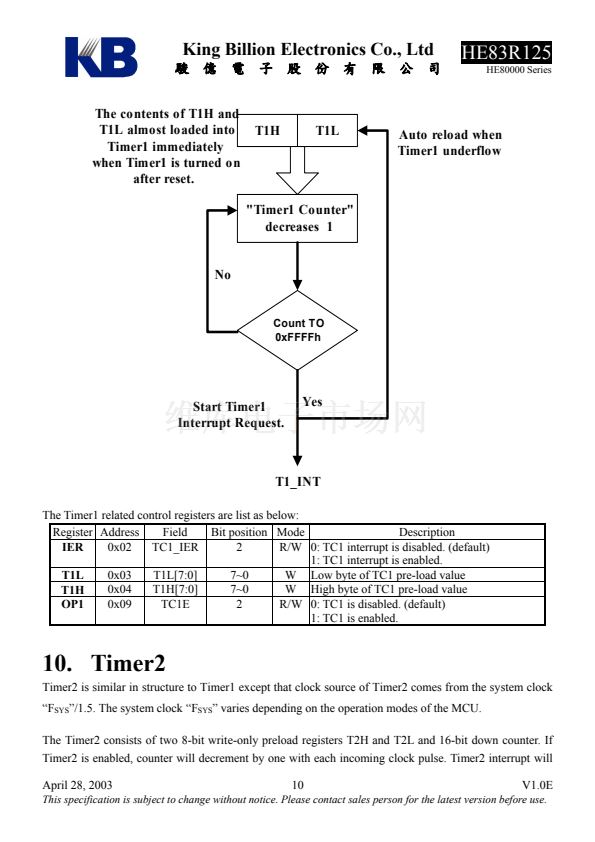

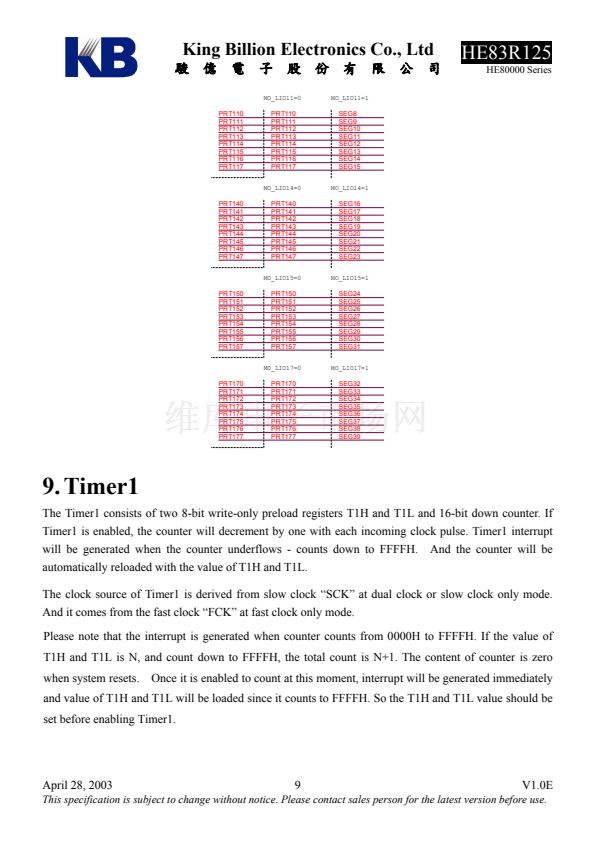

Timer1 ______________________________________________________________________________2

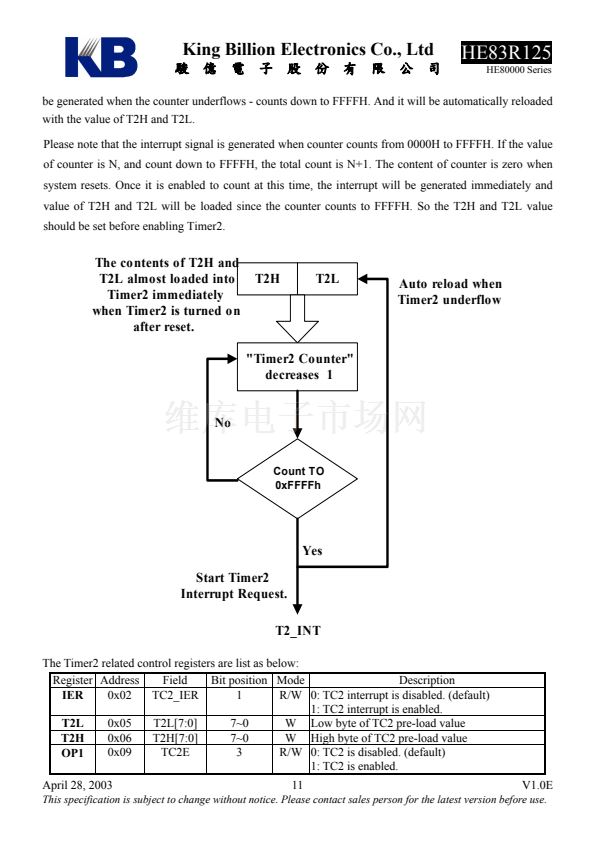

Timer2 ____________________________________________________________________________2

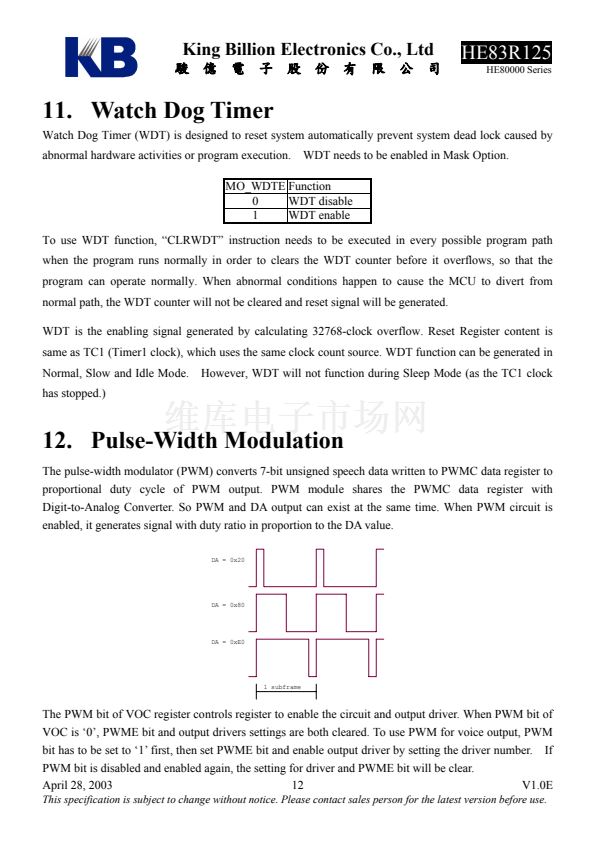

Watch Dog Timer ___________________________________________________________________2

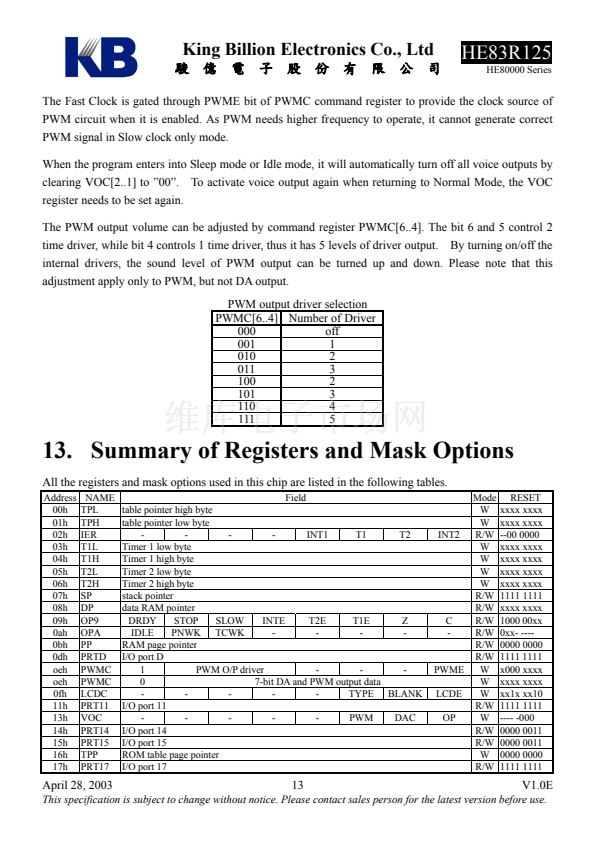

Pulse-Width Modulation _____________________________________________________________2

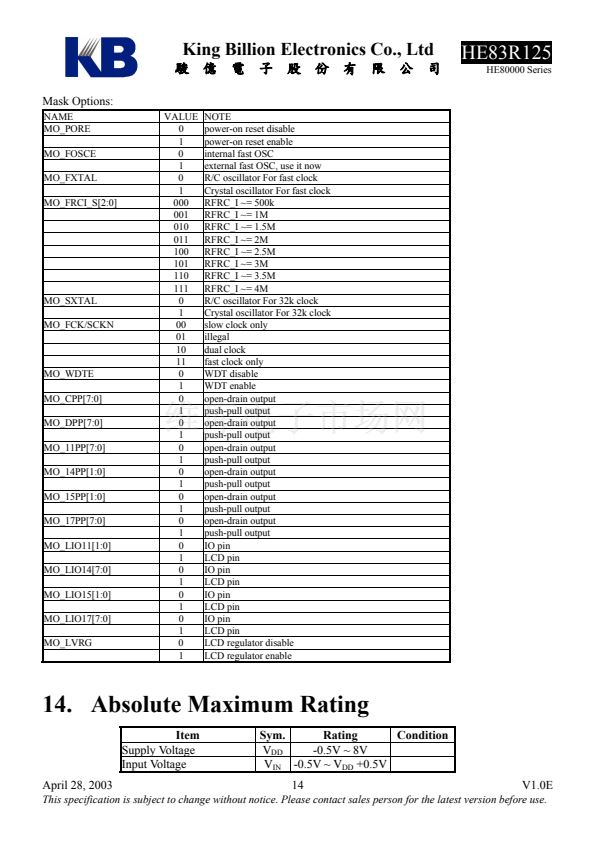

Summary of Registers and Mask Options _______________________________________________2
Absolute Maximum Rating ___________________________________________________________2
Recommended Operating Conditions __________________________________________________2
AC/DC Characteristics ______________________________________________________________2

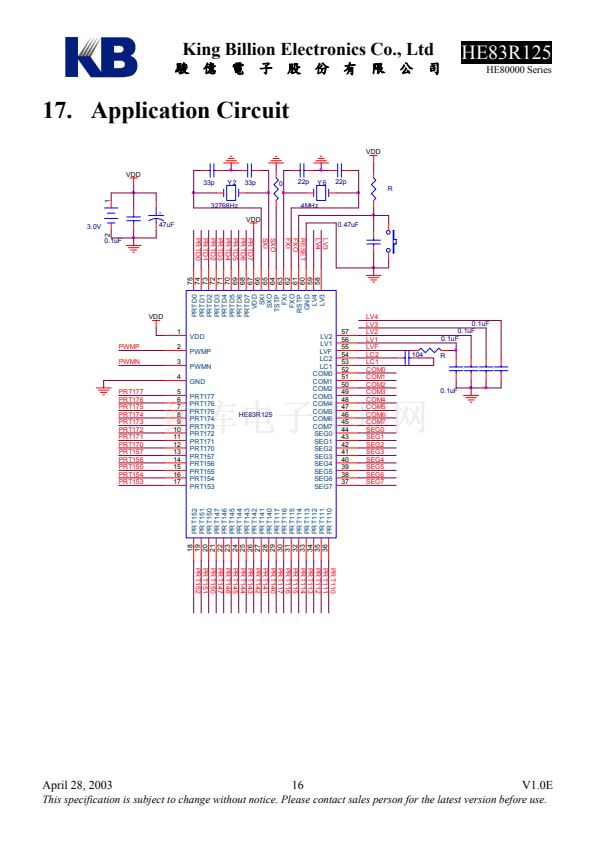

Application Circuit__________________________________________________________________2

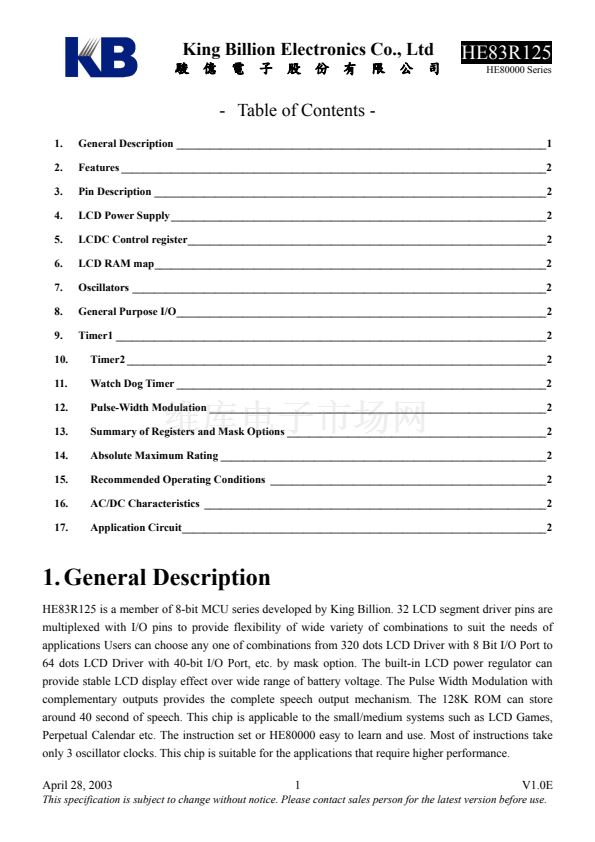

1. General Description
HE83R125 is a member of 8-bit MCU series developed by King Billion. 32 LCD segment driver pins are
multiplexed with I/O pins to provide flexibility of wide variety of combinations to suit the needs of
applications Users can choose any one of combinations from 320 dots LCD Driver with 8 Bit I/O Port to
64 dots LCD Driver with 40-bit I/O Port, etc. by mask option. The built-in LCD power regulator can
provide stable LCD display effect over wide range of battery voltage. The Pulse Width Modulation with
complementary outputs provides the complete speech output mechanism. The 128K ROM can store
around 40 second of speech. This chip is applicable to the small/medium systems such as LCD Games,
Perpetual Calendar etc. The instruction set or HE80000 easy to learn and use. Most of instructions take
only 3 oscillator clocks. This chip is suitable for the applications that require higher performance.
April 28, 2003
1
V1.0E
This specification is subject to change without notice. Please contact sales person for the latest version before use.
