HE83135
HE80000 SERIES
A. HE83135 Introduction
HE83135 is a member of 8-bit Micro-controller series that is developed by King Billion. This IC
built-in 640-dot LCD driver and has one OP comparator. The built-in OP comparator can be used
with (light銆乿oice銆乼emperature銆乭umility) sensor etc. The 7-bit current-type D/A converter and
PWM device provide. The 64K ROM Size can storage around 20 second鈥檚 speech. This IC is
applicable to the medium systems such as LCD Games and Educational Toy etc. Use external
SRAM or Flash RAM to have recording function. This IC is applicable to the medium systems
such as LCD Games, Education Toy etc. This IC is very easy to learn and use. Most of
instructions take only 3 oscillator clocks (machine cycles). As a result this IC is suitable for the
applications that require higher performance system.
B. HE83135 Features
2.2V 鈥?5.5V
DC ~ 8MHz @ 5.0V
DC ~ 4MHz @ 2.2V
Internal ROM錛?/div>
64K Bytes(64K Program ROM)
Internal RAM錛?/div>
2K Bytes
Dual Clock System
錛?/div>
Normal (Fast) clock錛?32.768K ~ 8MHz
Slow clock錛?/div>
32.768KHz
Operation Mode錛?/div>
DUAL銆丗AST銆丼LOW銆両DLE銆丼LEEP Mode.
With WDT (WATCH DOG TIMER) to prevent deadlock condition.
12-bit Bi-directional I/O port. Mask Option can select PUSH-PULL or OPEN DRAIN output
mode for each I/O pin.
One built-in OP comparator.
640 dots LCD driver (A銆丅 TYPE selectable).
One 7-bit current-type DAC output.
PWM device.
Two external interrupts and two internal timers interrupts.
Two 16-bit timers.
Instruction set錛?32 instructions, 4 addressing mode. 11-bit DATA POINTER for RAM and
16-bit TABLE POINTER for ROM.
Operation Voltage錛?/div>
System Clock錛?/div>

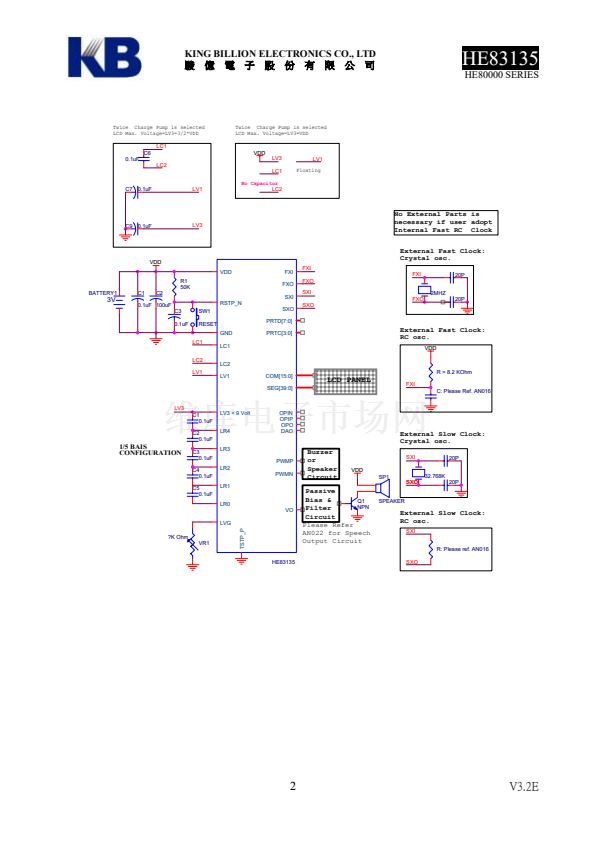

C. Application Circuit
