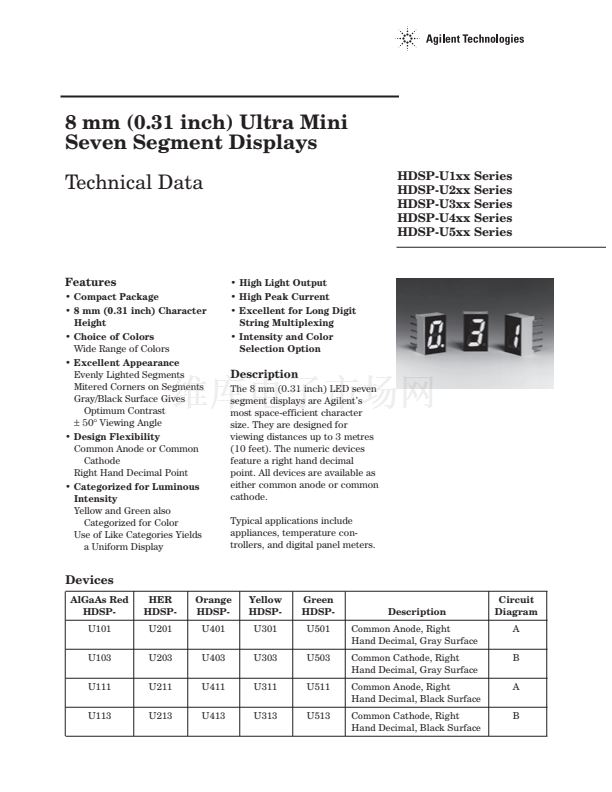

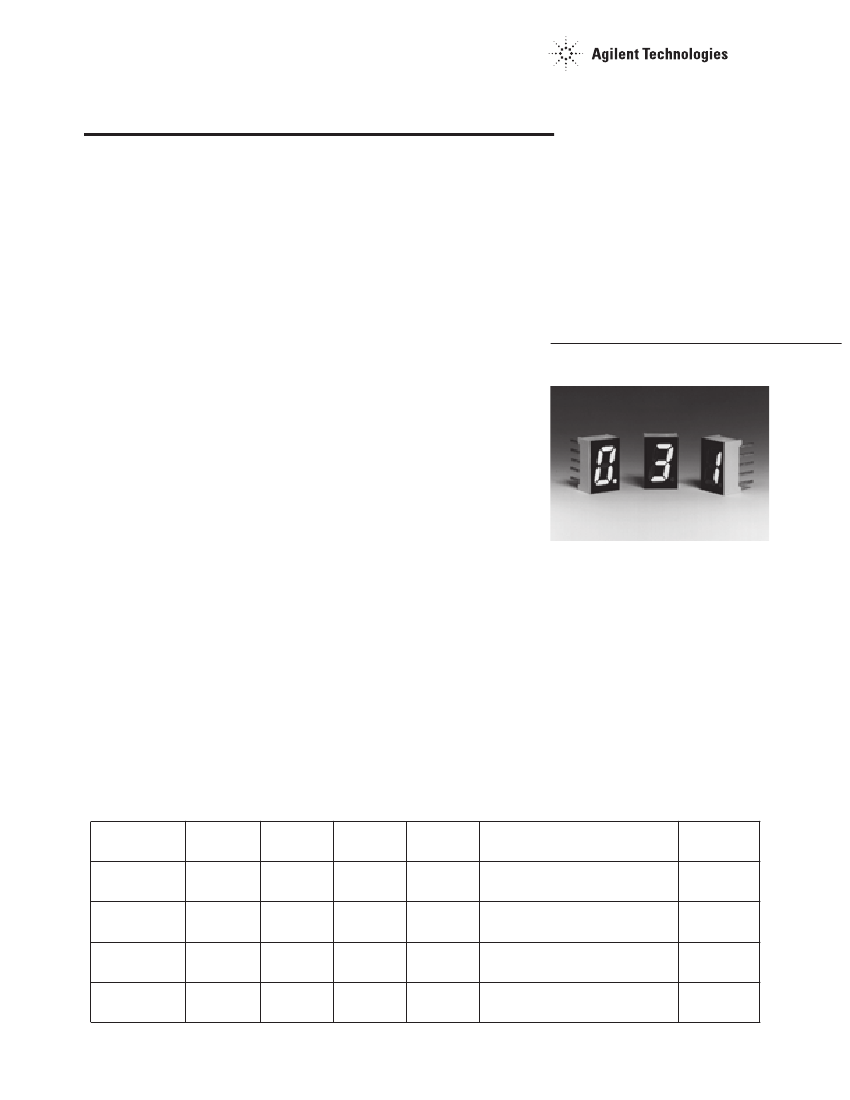

8 mm (0.31 inch) Ultra Mini

Seven Segment Displays

Technical Data

HDSP-U1xx Series

HDSP-U2xx Series

HDSP-U3xx Series

HDSP-U4xx Series

HDSP-U5xx Series

Features

鈥?Compact Package

鈥?8 mm (0.31 inch) Character

Height

鈥?Choice of Colors

Wide Range of Colors

鈥?Excellent Appearance

Evenly Lighted Segments

Mitered Corners on Segments

Gray/Black Surface Gives

Optimum Contrast

鹵

50擄 Viewing Angle

鈥?Design Flexibility

Common Anode or Common

Cathode

Right Hand Decimal Point

鈥?Categorized for Luminous

Intensity

Yellow and Green also

Categorized for Color

Use of Like Categories Yields

a Uniform Display

鈥?High Light Output

鈥?High Peak Current

鈥?Excellent for Long Digit

String Multiplexing

鈥?Intensity and Color

Selection Option

Description

The 8 mm (0.31 inch) LED seven

segment displays are Agilent鈥檚

most space-efficient character

size. They are designed for

viewing distances up to 3 metres

(10 feet). The numeric devices

feature a right hand decimal

point. All devices are available as

either common anode or common

cathode.

Typical applications include

appliances, temperature con-

trollers, and digital panel meters.

Devices

AlGaAs Red

HDSP-

U101

U103

U111

U113

HER

HDSP-

U201

U203

U211

U213

Orange

HDSP-

U401

U403

U411

U413

Yellow

HDSP-

U301

U303

U311

U313

Green

HDSP-

U501

U503

U511

U513

Description

Common Anode, Right

Hand Decimal, Gray Surface

Common Cathode, Right

Hand Decimal, Gray Surface

Common Anode, Right

Hand Decimal, Black Surface

Common Cathode, Right

Hand Decimal, Black Surface

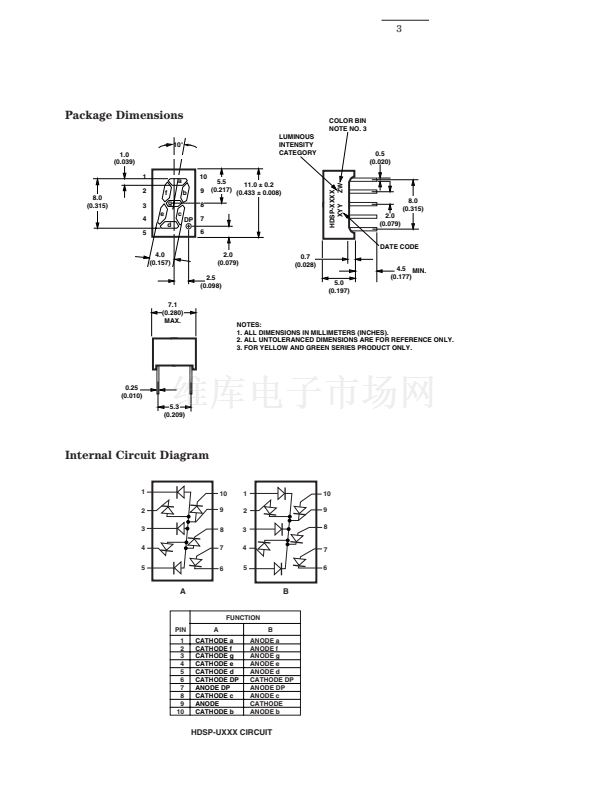

Circuit

Diagram

A

B

A

B
