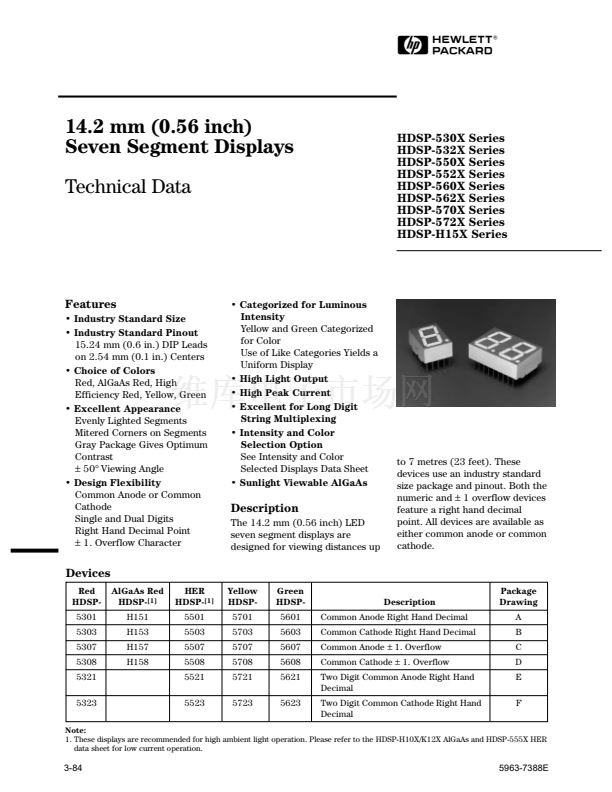

14.2 mm (0.56 inch)

Seven Segment Displays

Technical Data

HDSP-530X Series

HDSP-532X Series

HDSP-550X Series

HDSP-552X Series

HDSP-560X Series

HDSP-562X Series

HDSP-570X Series

HDSP-572X Series

HDSP-H15X Series

Features

鈥?Industry Standard Size

鈥?Industry Standard Pinout

15.24 mm (0.6 in.) DIP Leads

on 2.54 mm (0.1 in.) Centers

鈥?Choice of Colors

Red, AlGaAs Red, High

Efficiency Red, Yellow, Green

鈥?Excellent Appearance

Evenly Lighted Segments

Mitered Corners on Segments

Gray Package Gives Optimum

Contrast

鹵

50擄 Viewing Angle

鈥?/div>

Design Flexibility

Common Anode or Common

Cathode

Single and Dual Digits

Right Hand Decimal Point

鹵

1. Overflow Character

鈥?Categorized for Luminous

Intensity

Yellow and Green Categorized

for Color

Use of Like Categories Yields a

Uniform Display

鈥?High Light Output

鈥?High Peak Current

鈥?Excellent for Long Digit

String Multiplexing

鈥?Intensity and Color

Selection Option

See Intensity and Color

Selected Displays Data Sheet

鈥?Sunlight Viewable AlGaAs

Description

The 14.2 mm (0.56 inch) LED

seven segment displays are

designed for viewing distances up

to 7 metres (23 feet). These

devices use an industry standard

size package and pinout. Both the

numeric and

鹵

1 overflow devices

feature a right hand decimal

point. All devices are available as

either common anode or common

cathode.

Devices

Red

HDSP-

5301

5303

5307

5308

5321

5323

AlGaAs Red

HDSP-

[1]

H151

H153

H157

H158

HER

HDSP-

[1]

5501

5503

5507

5508

5521

5523

Yellow

HDSP-

5701

5703

5707

5708

5721

5723

Green

HDSP-

5601

5603

5607

5608

5621

5623

Description

Common Anode Right Hand Decimal

Common Cathode Right Hand Decimal

Common Anode

鹵

1. Overflow

Common Cathode

鹵

1. Overflow

Two Digit Common Anode Right Hand

Decimal

Two Digit Common Cathode Right Hand

Decimal

Package

Drawing

Note:

1. These displays are recommended for high ambient light operation. Please refer to the HDSP-H10X/K12X AlGaAs and HDSP-555X HER

data sheet for low current operation.

3-84

5963-7388E
