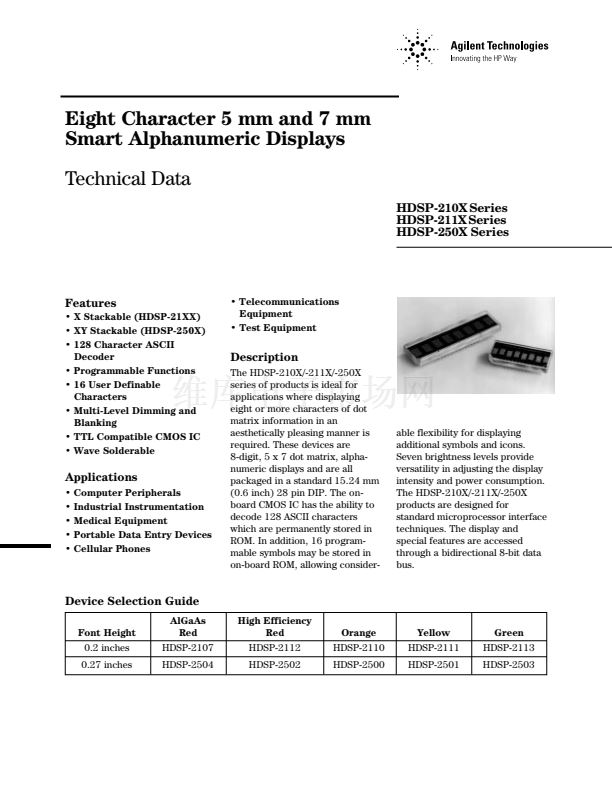

Eight Character 5 mm and 7 mm

Smart Alphanumeric Displays

Technical Data

HDSP-210X Series

HDSP-211X Series

HDSP-250X Series

Features

鈥?X Stackable (HDSP-21XX)

鈥?XY Stackable (HDSP-250X)

鈥?128 Character ASCII

Decoder

鈥?Programmable Functions

鈥?16 User Definable

Characters

鈥?Multi-Level Dimming and

Blanking

鈥?TTL Compatible CMOS IC

鈥?Wave Solderable

鈥?Telecommunications

Equipment

鈥?Test Equipment

Description

The HDSP-210X/-211X/-250X

series of products is ideal for

applications where displaying

eight or more characters of dot

matrix information in an

aesthetically pleasing manner is

required. These devices are

8-digit, 5 x 7 dot matrix, alpha-

numeric displays and are all

packaged in a standard 15.24 mm

(0.6 inch) 28 pin DIP. The on-

board CMOS IC has the ability to

decode 128 ASCII characters

which are permanently stored in

ROM. In addition, 16 program-

mable symbols may be stored in

on-board ROM, allowing consider-

Applications

鈥?Computer Peripherals

鈥?Industrial Instrumentation

鈥?Medical Equipment

鈥?Portable Data Entry Devices

鈥?Cellular Phones

able flexibility for displaying

additional symbols and icons.

Seven brightness levels provide

versatility in adjusting the display

intensity and power consumption.

The HDSP-210X/-211X/-250X

products are designed for

standard microprocessor interface

techniques. The display and

special features are accessed

through a bidirectional 8-bit data

bus.

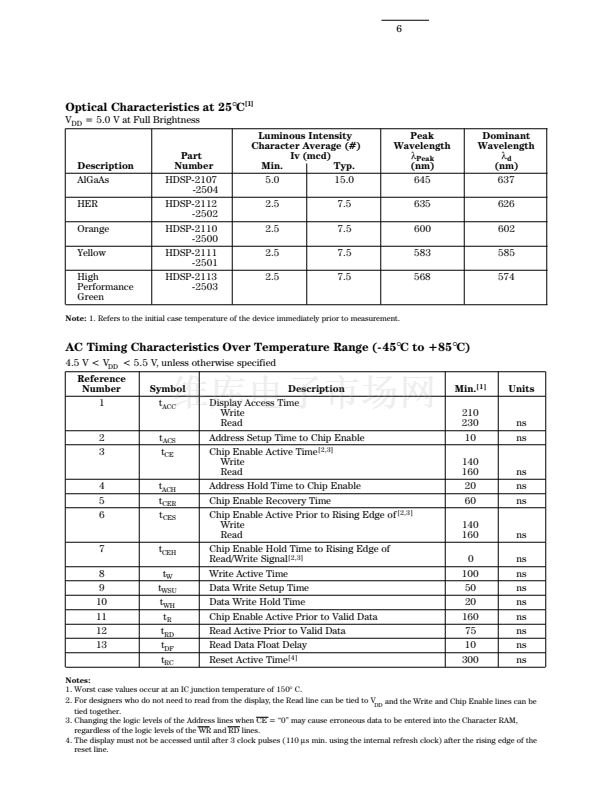

Device Selection Guide

Font Height

0.2 inches

0.27 inches

AlGaAs

Red

HDSP-2107

HDSP-2504

High Efficiency

Red

HDSP-2112

HDSP-2502

Orange

HDSP-2110

HDSP-2500

Yellow

HDSP-2111

HDSP-2501

Green

HDSP-2113

HDSP-2503
