Agilent HDMP-2634
2.5/1.25 GBd Serdes Circuit
Data Sheet
Description
This data sheet describes the
HDMP-2634 Serdes device for
2.5 GBd serial data rates.
The HDMP-2634 Serdes is a silicon
bipolar integrated circuit in a metal-
lized QFP package. It provides a
low-cost physical layer solution for
2.5 GBd serial link interfaces includ-
ing a complete Serialize/Deserialize
(Serdes) function with transmit and
receive sections in a single device.
The HDMP-2634 is also capable of
operating on 1.25 GBd serial links.
Input pins TX_RATE and RX_RATE
select the data rates on the transmit
and receive sides, respectively.

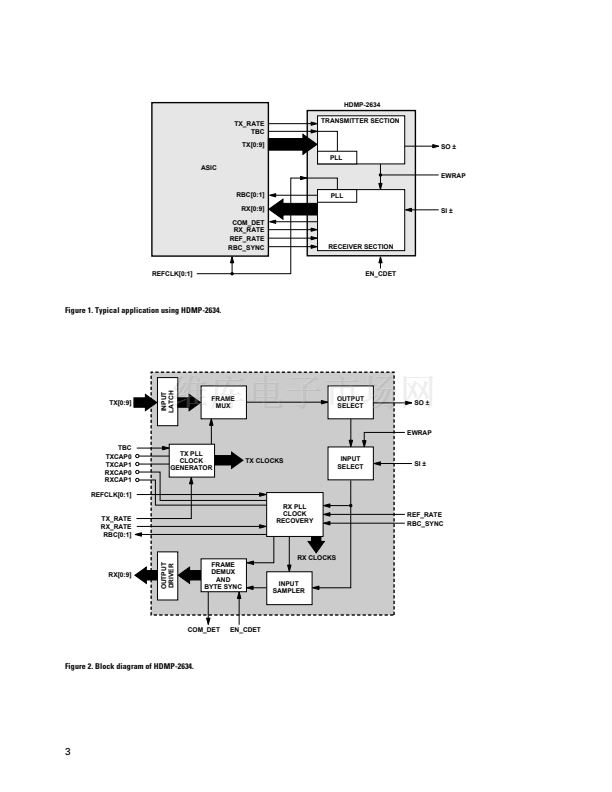

As shown in Figure 1, the transmit-
ter section accepts 10-bit wide par-
allel SSTL_2 data (TX[0:9]) and a
125 MHz SSTL_2 byte clock (TBC)
and serializes them into a high-
speed serial stream. The parallel
data is expected to be 鈥?B/10B鈥?/div>
encoded data or equivalent. At the
source, TX[0:9] and TBC switch
synchronously with respect to a 125
MHz clock internal to the sender.
New data are emitted on both edges
of TBC; this is called Double Data
Rate (DDR). The HDMP-2634 finds
a sampling window between the
two edges of TBC to latch TX[0:9]
data into the input register of the
transmitter section when
TX_RATE=1. If TX_RATE=0, the
user must ensure no data transi-
tions on the falling edge of TBC
and this edge is used to latch in
parallel data resulting in a 1.25
GBd serial stream.
The transmitter section鈥檚 PLL
locks to the 125 MHz TBC. This
clock is then multiplied by 20 to
generate the 2500 MHz serial
clock for the high-speed serial
outputs. The high-speed outputs
are capable of interfacing directly
to copper cables or PCB traces
for electrical transmission or to
a separate fiber optic module
for optical transmission. The
high-speed outputs include user-
controllable skin-loss equalization
to improve performance when
driving copper lines.
The receiver section accepts a
serial electrical data stream at
1.25 or 2.5 GBd and recovers
10-bit wide parallel data. The
receiver PLL locks onto the incom-
ing serial signal and recovers the

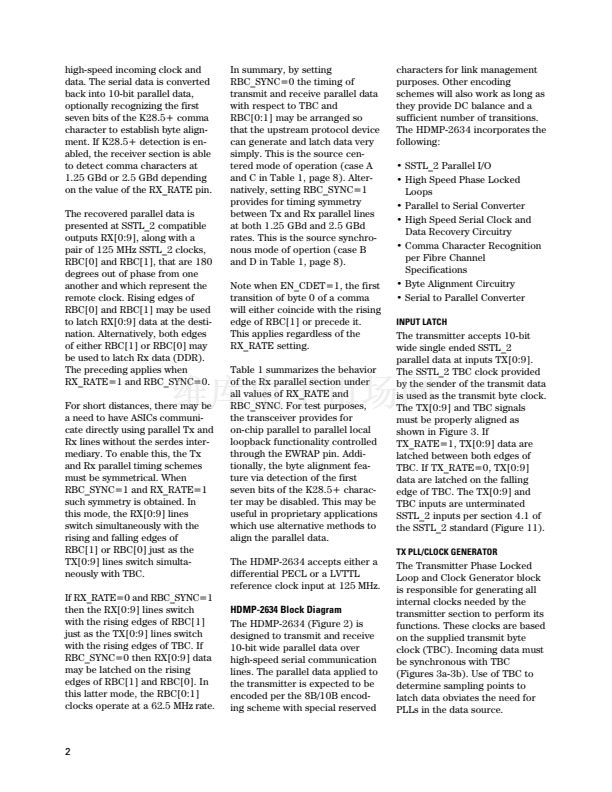

Features
鈥?10-bit wide parallel Tx, Rx busses
鈥?125 MHz TBC and RBC[0:1]
鈥?Option to set Tx and Rx serial
data rates separately
鈥?Parallel data I/O, clocks and
control compatible with SSTL_2
鈥?Differential PECL or LVTTL REFCLK
at 125 MHz
鈥?Double data rate transfers
鈥?Source synchronous clocking of
transmit data
鈥?Source centered or source
synchronous clocking of
receive data
鈥?Dual or single receive byte
clocks
鈥?Parallel loopback mode
鈥?Differential BLL serial I/O with
on-chip source termination
鈥?14 mm, 64-pin MQFP package
鈥?Single +3.3 V power supply
Applications
鈥?Gigabit ethernet channel
aggregation trunks
鈥?Fast serial backplanes
鈥?Clusters
Ordering Information
Part Number
Parallel I/O
HDMP-2634
SSTL_2
