Four Character 5.0 mm
(0.2 inch) Smart
5 x 7 Alphanumeric Displays
Technical Data
HDLX-2416 Series
Features
鈥?Enhanced Drop-in Replace-
ment to HPDL-2416
鈥?/div>
Smart Alphanumeric
Display
Built-in RAM, ASCII Decoder,
and LED Drive Circuitry
鈥?/div>
CMOS IC for Low Power
Consumption
鈥?/div>
Software Controlled
Dimming Levels and Blank
鈥?/div>

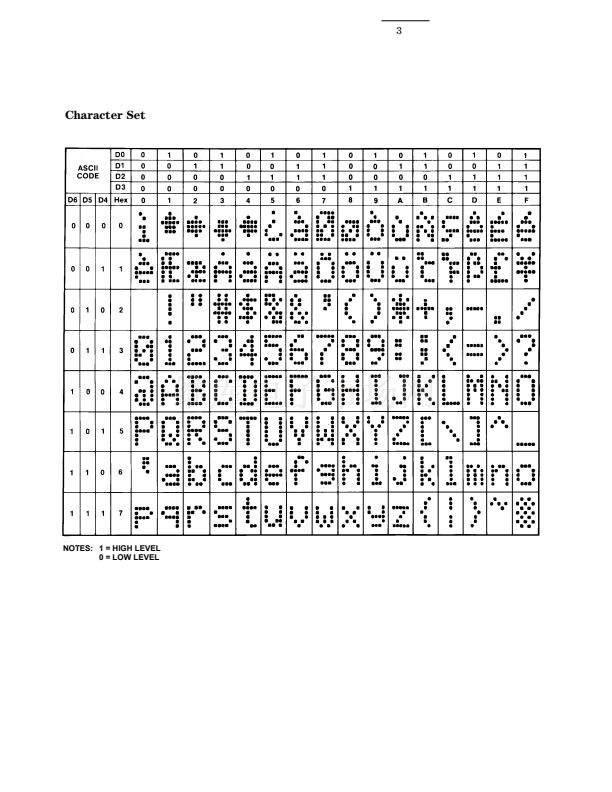

128 ASCII Character Set
鈥?/div>
End-Stackable
鈥?/div>
Categorized for Luminous
Intensity; Yellow and
Green Categorized for
Color
鈥?/div>
Low Power and Sunlight
Viewable AlGaAs Versions
鈥?/div>
Wide Operating
Temperature Range
-40擄C to +85擄C
鈥?/div>
Excellent ESD Protection
鈥?/div>
Wave Solderable
鈥?/div>
Wide Viewing Angle
(50
擄
typ)
Description
These are 5.0 mm (0.2 inch) four
character 5 x 7 dot matrix
displays driven by an on-board
CMOS IC. These displays are pin
for pin compatible with the
HPDL-2416. The IC stores and
decodes 7 bit ASCII data and
displays it using a 5 x 7 font.
Multiplexing circuitry, and
drivers are also part of the IC.
The IC has fast setup and hold
times which makes it easy to
interface to a microprocessor.
Absolute Maximum Ratings
Supply Voltage, V
DD
to Ground
[1]
..................................... -0.5 V to 7.0 V
Input Voltage, Any Pin to Ground .......................... -0.5 V to V
DD
+ 0.5 V
Free Air Operating Temperature Range, T
A
................
-40擄C to +85擄C
Storage Temperature, T
S
........................................
-40擄C to 100擄C
CMOS IC Junction Temperature, T
J
(IC) ................................... +150擄C
Relative Humidity (non-condensing) at 65擄C ................................... 85%
Maximum Solder Temperature, 1.59 mm
(0.063 in.) below Seating Plane, t
<
5 sec. ............................... 260擄C
ESD Protection, R = 1.5 k鈩? C = 100 pF ............. V
Z
= 2 kV (each pin)
Note:
1. Maximum Voltage is with no LEDs illuminated.
Devices:
Standard Red
HDLR-2416
AlGaAs Red
HDLS-2416
HDLU-2416
High Efficiency Red
HDLO-2416
Orange
HDLA-2416
Yellow
HDLY-2416
Green
HDLG-2416
ESD WARNING: STANDARD CMOS HANDLING PRECAUTIONS SHOULD BE OBSERVED WITH
THE HDLX-2416
