HD75159

Dual Differential Line Drivers With 3 State Outputs

ADE-205-589 (Z)

1st. Edition

Dec. 2000

Description

The HD75159 features dual differential line drivers with three state outputs, which satisfy the requirements

of EIA(standard) RS-422A. Each driver has an output control. When the output control is low, the

associated outputs are in a high impedance state. This permits many devices to be connected together on

the same transmission line for party line applications.

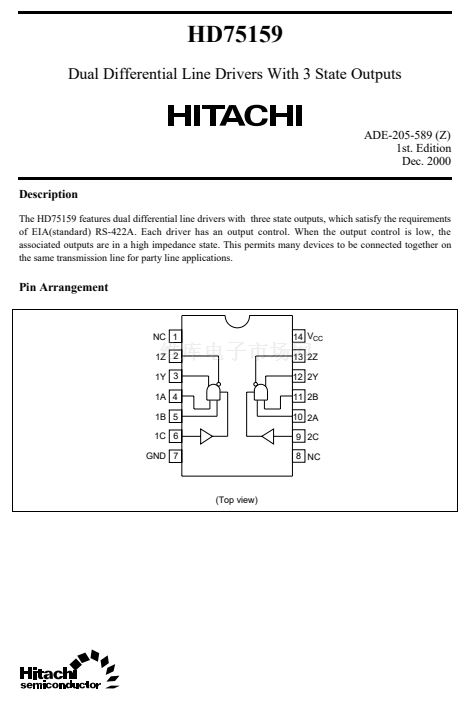

Pin Arrangement

NC 1

1Z 2

1Y 3

1A 4

1B 5

1C 6

GND 7

14 V

CC

13 2Z

12 2Y

11 2B

10 2A

9 2C

8 NC

(Top view)
