HD74LV1G86A_08 Datasheet

  • HD74LV1G86A_08

  • 2-input Exclusive-OR Gate

  • 8頁

  • RENESAS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

HD74LV1G86A
2鈥搃nput Exclusive鈥揙R Gate
REJ03D0070-0700
Rev.7.00
Mar 21, 2008
Description
The HD74LV1G86A performs the Boolean functions Y = A
鈯?/div>
B or Y =
AB
+ AB in positive logic. A common
application is as a true / complement element. If one of the inputs is low, the other input will be reproduced in true
form at the output. If one of the inputs is high, the signal on the other input will be reproduced inverted form at the
output. Low voltage and high-speed operation is suitable for the battery powered products (e.g., notebook computers),
and the low power consumption extends the battery life.
Features
鈥?/div>
The basic gate function is lined up as Renesas uni logic series.
鈥?/div>
Supplied on emboss taping for high-speed automatic mounting.
鈥?/div>
Electrical characteristics equivalent to the HD74LV86A
Supply voltage range : 1.65 to 5.5 V
Operating temperature range : 鈥?0 to +85擄C
鈥?/div>
All inputs V
IH
(Max.) = 5.5 V (@V
CC
= 0 V to 5.5 V)
All outputs V
O
(Max.) = 5.5 V (@V
CC
= 0 V)
鈥?/div>
Output current 鹵6 mA (@V
CC
= 3.0 V to 3.6 V), 鹵12 mA (@V
CC
= 4.5 V to 5.5 V)
鈥?/div>
All the logical input has hysteresis voltage for the slow transition.
鈥?/div>
Ordering Information
Part Name
HD74LV1G86ACME
HD74LV1G86AVSE
Note:
Package Type
CMPAK鈥? pin
VSON鈥? pin
Package Code
(Previous Code)
PTSP0005ZC-A
(CMPAK-5V)
PUSN0005KA-A
(TNP-5DV)
Package
Abbreviation
CM
VS
Taping Abbreviation
(Quantity)
E (3000 pcs/reel)
E (3000 pcs/reel)
Please consult the sales office for the above package availability.

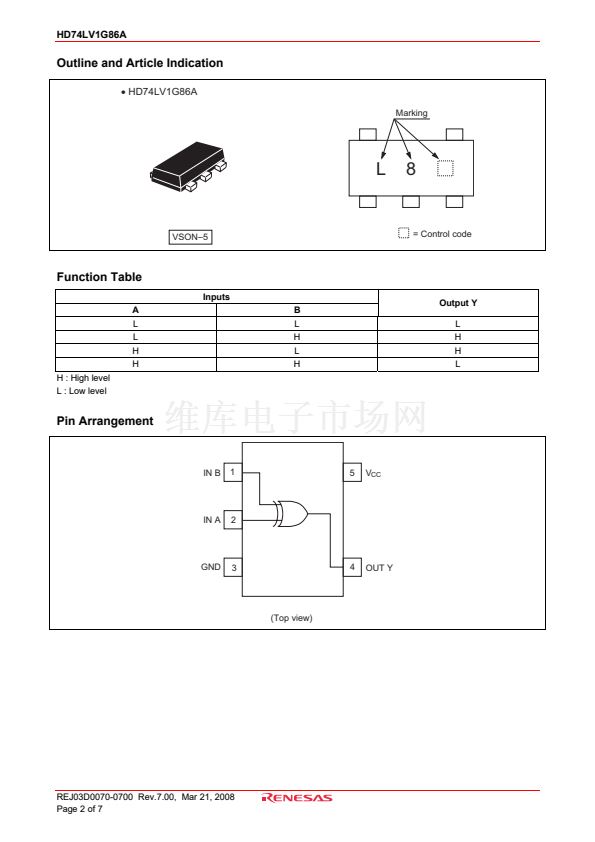

Outline and Article Indication
鈥?HD74LV1G86A
Index band
Marking
L
8
CMPAK鈥?
= Control code
REJ03D0070-0700 Rev.7.00, Mar 21, 2008
Page 1 of 7
