HD74CBT3384A
10-bit FET Bus Switch
ADE-205-652 (Z)
Preliminary
Rev. 0
Jan. 2002
Description
The HD74CBT3384A provides ten bits of high-speed TTL-compatible bus switching. The low on-state
resistance of the switch allows connections to be made with minimal propagation delay.

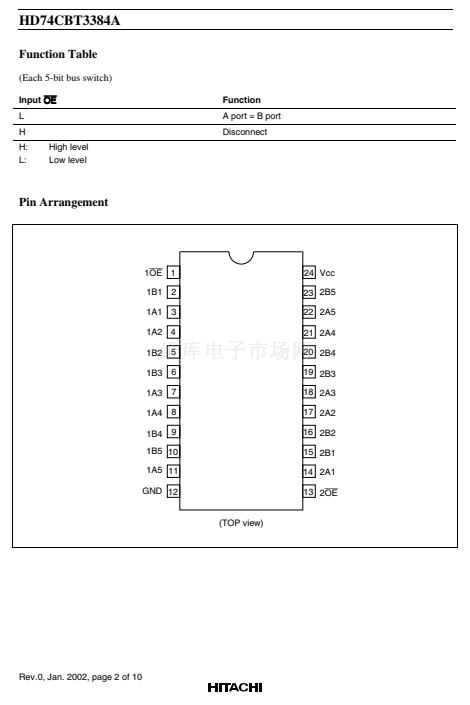

The device is organized as two 5-bit switches with separate output-enable (OE) inputs. When
OE
is low,
the switch is on, and port A is connected to port B. When
OE
is high, the switch is open, and the high-
impedance state exists between the two ports.
Features
鈥?/div>
Minimal propagation delay through the switch.
鈥?/div>
5
鈩?/div>
switch connection between two ports.
鈥?/div>
TTL-compatible input levels.
鈥?/div>
Ultra low quiescent power.
-Ideally suited for notebook applications.
鈥?/div>
Package type
Product code example: HD74CBT3384ATEL
Package type
TSSOP-24pin
Package code
TTP-24DBV
Package suffix
T
Taping code
EL (1,000pcs / Reel)
