HD74ALVCH162501 Datasheet

  • HD74ALVCH162501

  • 18-bit Universal Bus Transceivers with 3-state Outputs

  • 13頁

  • HITACHI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

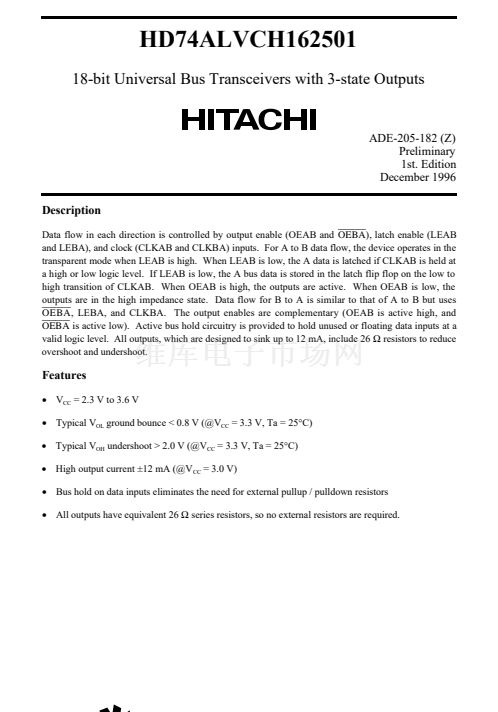

HD74ALVCH162501
18-bit Universal Bus Transceivers with 3-state Outputs
ADE-205-182 (Z)
Preliminary
1st. Edition
December 1996
Description

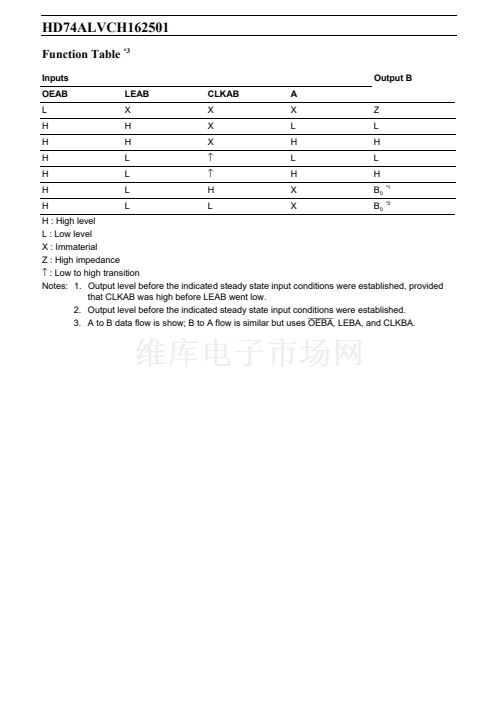

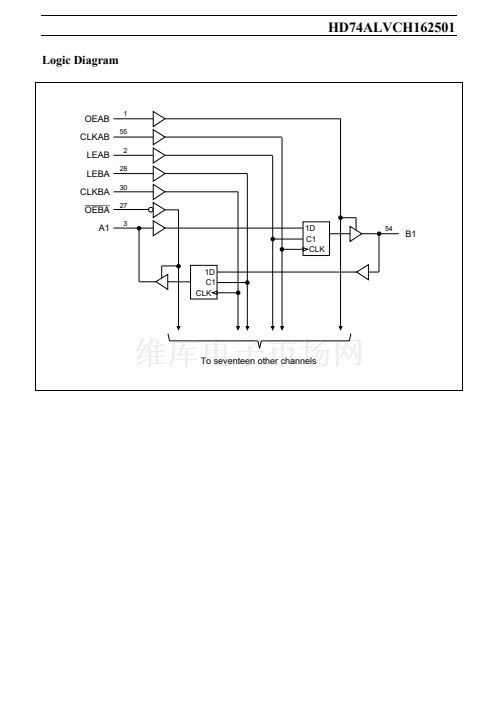

Data flow in each direction is controlled by output enable (OEAB and
OEBA),
latch enable (LEAB
and LEBA), and clock (CLKAB and CLKBA) inputs. For A to B data flow, the device operates in the
transparent mode when LEAB is high. When LEAB is low, the A data is latched if CLKAB is held at
a high or low logic level. If LEAB is low, the A bus data is stored in the latch flip flop on the low to
high transition of CLKAB. When OEAB is high, the outputs are active. When OEAB is low, the
outputs are in the high impedance state. Data flow for B to A is similar to that of A to B but uses
OEBA,
LEBA, and CLKBA. The output enables are complementary (OEAB is active high, and
OEBA
is active low). Active bus hold circuitry is provided to hold unused or floating data inputs at a
valid logic level. All outputs, which are designed to sink up to 12 mA, include 26
鈩?/div>
resistors to reduce
overshoot and undershoot.

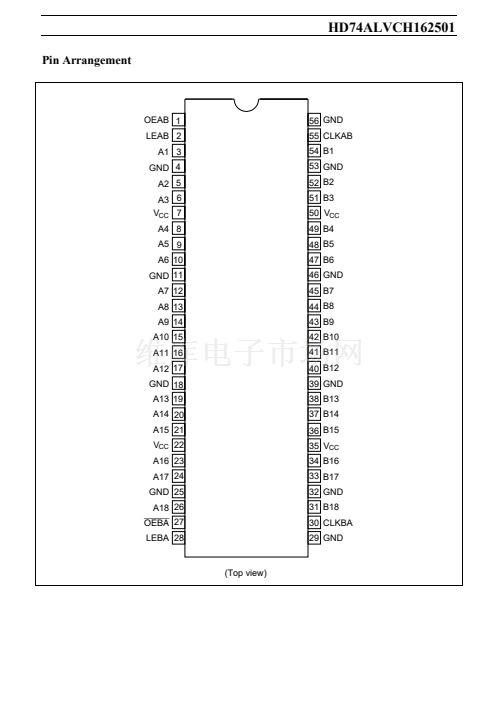

Features
鈥?/div>
V
CC
= 2.3 V to 3.6 V
鈥?/div>
Typical V
OL
ground bounce < 0.8 V (@V
CC
= 3.3 V, Ta = 25擄C)
鈥?/div>
Typical V
OH
undershoot > 2.0 V (@V
CC
= 3.3 V, Ta = 25擄C)
鈥?/div>
High output current 鹵12 mA (@V
CC
= 3.0 V)
鈥?/div>
Bus hold on data inputs eliminates the need for external pullup / pulldown resistors
鈥?/div>
All outputs have equivalent 26
鈩?/div>
series resistors, so no external resistors are required.
