HD404818 Series
4-Bit Single-Chip Microcomputer
Preliminary
Rev. 2.0
Sept. 1998
Description
T he H D4 04 81 8 Se ri es of 4-bit single-chip HMCS400 series microcomputers provide high program
productivity. It incorporates a large size memory, LCD controller/driver, voltage comparator, and 32-kHz
watch oscillator circuit.
The HD404818 Series has both standard voltage versions and low voltage versions available. The standard
voltage versions operate at 4.0 V to 6.0 V (mask ROM version) and 4.0 V to 5.5 V (PROM version), while
the low voltage versions operate at 2.7 V to 6.0 V (mask ROM) and 3.0 V to 5.5 V (PROM). Low voltage
versions include an L in their product name.
Standard voltage versions: HD404812, HD404814, HD404816, HD404818, HD4074818
Low voltage versions: HD40L4812, HD40L4814, HD40L4816, HD40L4818, HD407L4818
The HD4074818 and HD407L4818, containing PROMs, are ZTAT鈩?microcomputers which can
dramatically shorten system development time and smoothly proceed from debugging to mass production.
ZTAT
TM
: Zero Turn Around Time ZTAT is a trademark of Hitachi Ltd.

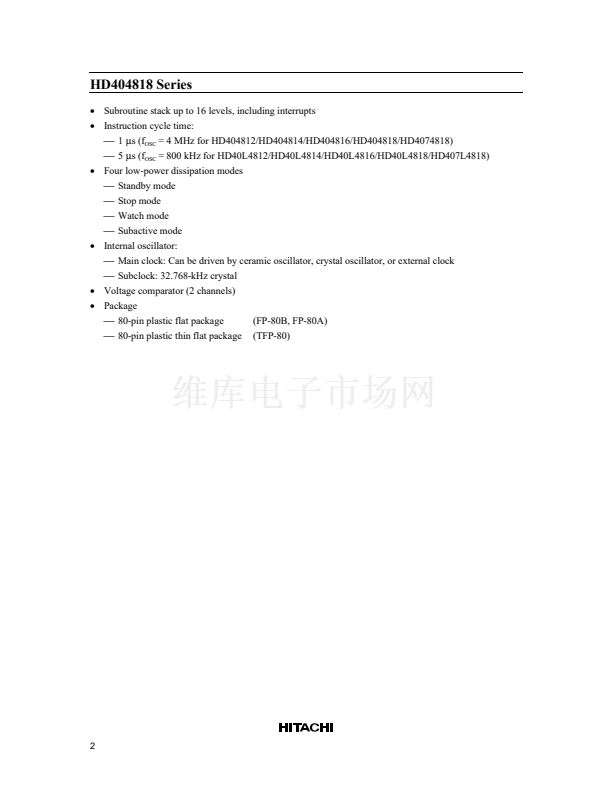

Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
2048-word
脳
10-bit ROM (HD404812, HD40L4812)
4096-word
脳
10-bit ROM (HD404814, HD40L4814)
6144-word
脳
10-bit ROM (HD404816, HD40L4816)
8192-word
脳
10-bit ROM (HD404818, HD40L4818, HD4074818, HD407L4818)
1184-digit
脳
4-bit RAM
30 I/O pins, including 10 high-current output pins, all CMOS and programmable as I/O pull-up MOS
LCD controller/driver (32 segments
脳
4 commons)
Three timer/counters
Clock-synchronous 8-bit serial interface
Six interrupt sources
錚?/div>
Two by external sources
錚?/div>
Four by internal sources
