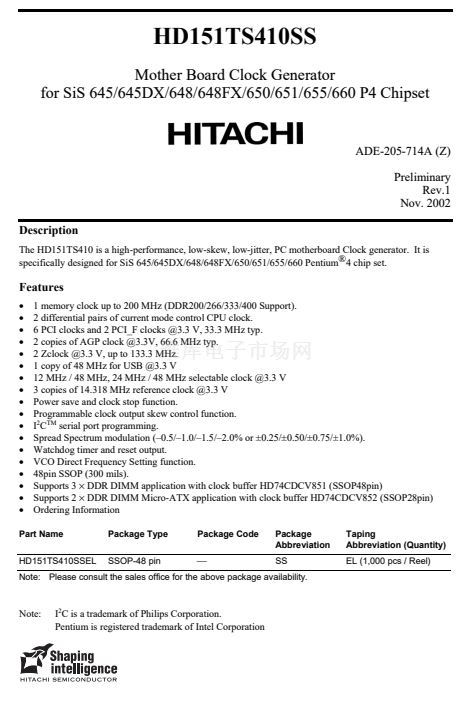

HD151TS410SS
Mother Board Clock Generator
for SiS 645/645DX/648/648FX/650/651/655/660 P4 Chipset
ADE-205-714A (Z)
Preliminary
Rev.1
Nov. 2002
Description
The HD151TS410 is a high-performance, low-skew, low-jitter, PC motherboard Clock generator. It is
specifically designed for SiS 645/645DX/648/648FX/650/651/655/660 Pentium廬4 chip set.
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
1 memory clock up to 200 MHz (DDR200/266/333/400 Support).
2 differential pairs of current mode control CPU clock.
6 PCI clocks and 2 PCI_F clocks @3.3 V, 33.3 MHz typ.
2 copies of AGP clock @3.3V, 66.6 MHz typ.
2 Zclock @3.3 V, up to 133.3 MHz.
1 copy of 48 MHz for USB @3.3 V
12 MHz / 48 MHz, 24 MHz / 48 MHz selectable clock @3.3 V
3 copies of 14.318 MHz reference clock @3.3 V
Power save and clock stop function.
Programmable clock output skew control function.
I
2
C
TM
serial port programming.
Spread Spectrum modulation (鈥?.5/鈥?.0/鈥?.5/鈥?.0% or 鹵0.25/鹵0.50/鹵0.75/鹵1.0%).
Watchdog timer and reset output.
VCO Direct Frequency Setting function.
48pin SSOP (300 mils).
Supports 3
脳
DDR DIMM application with clock buffer HD74CDCV851 (SSOP48pin)
Supports 2
脳
DDR DIMM Micro-ATX application with clock buffer HD74CDCV852 (SSOP28pin)
Ordering Information
Package Type
SSOP-48 pin
Package Code
錚?/div>
Package
Abbreviation
SS
Taping
Abbreviation (Quantity)
EL (1,000 pcs / Reel)
Part Name
HD151TS410SSEL
Note: Please consult the sales office for the above package availability.
Note:
I
2
C is a trademark of Philips Corporation.
Pentium is registered trademark of Intel Corporation
