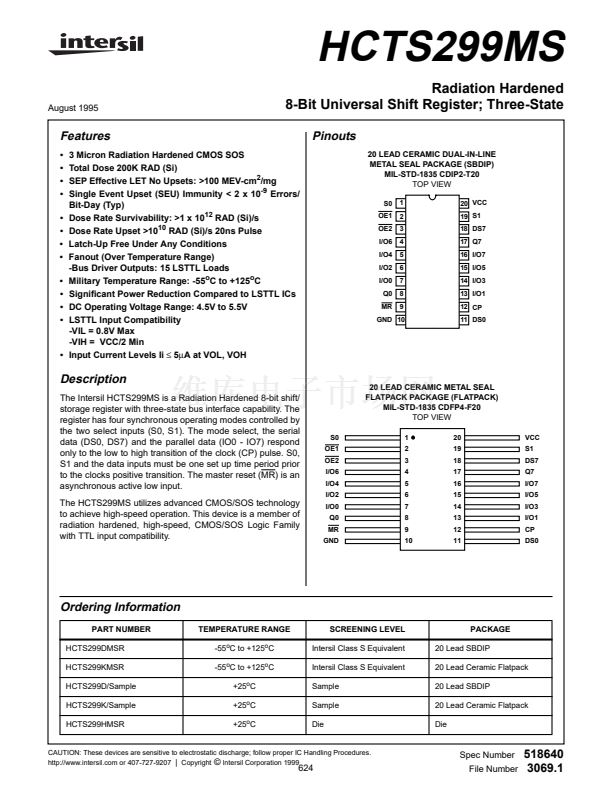

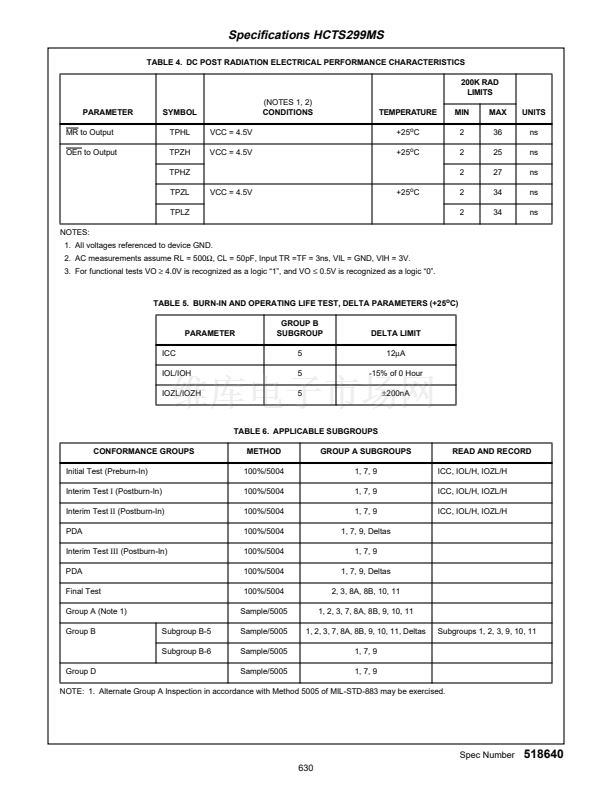

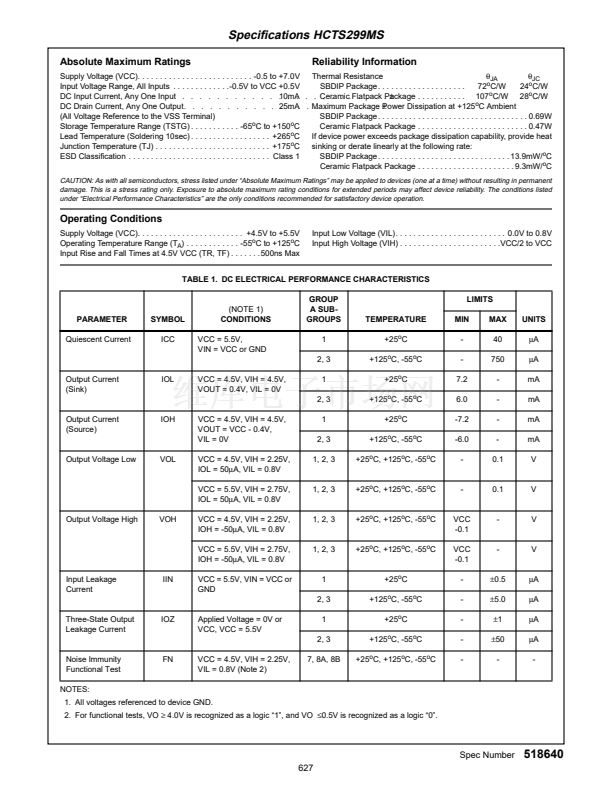

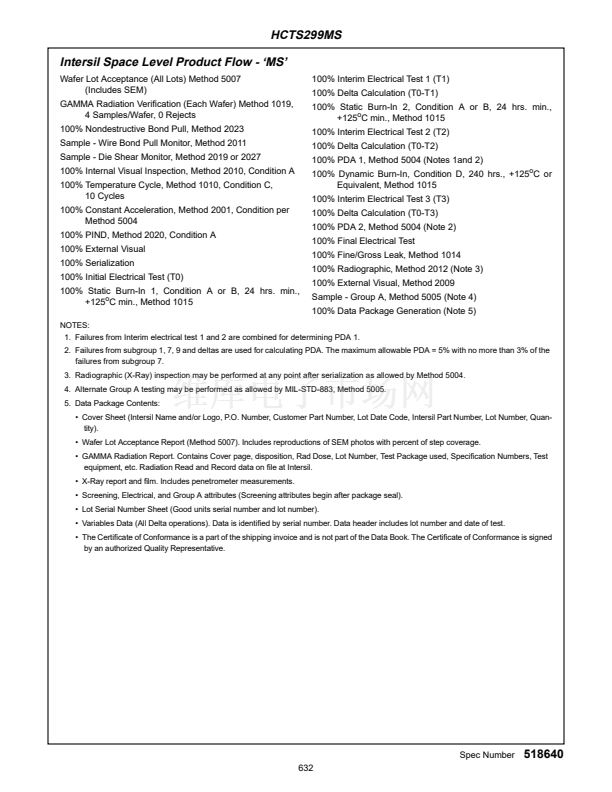

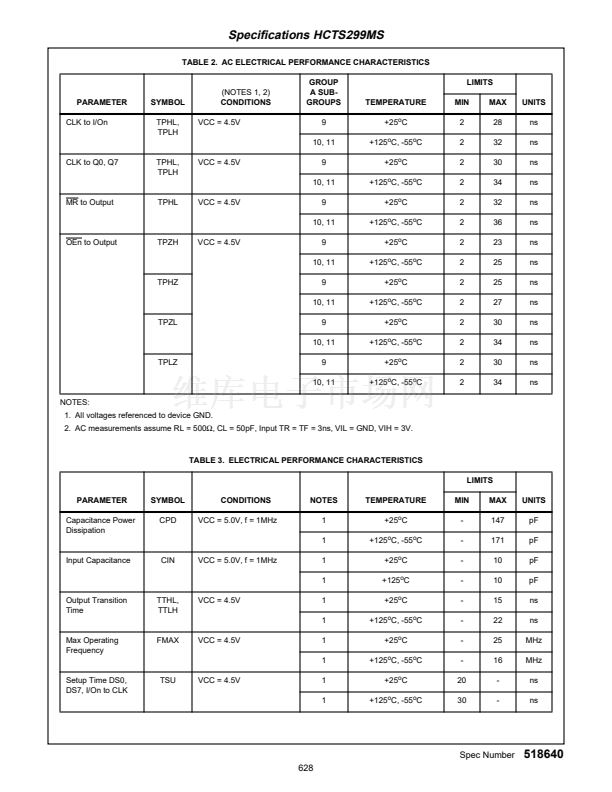

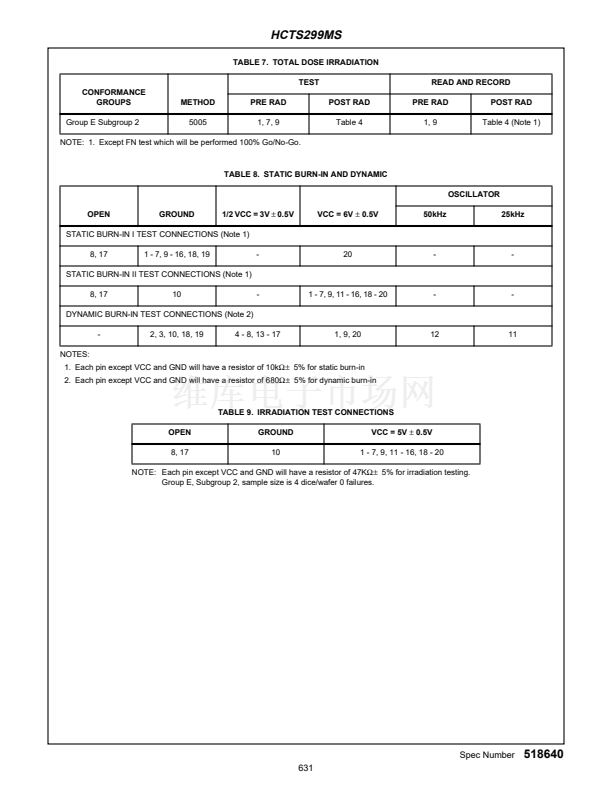

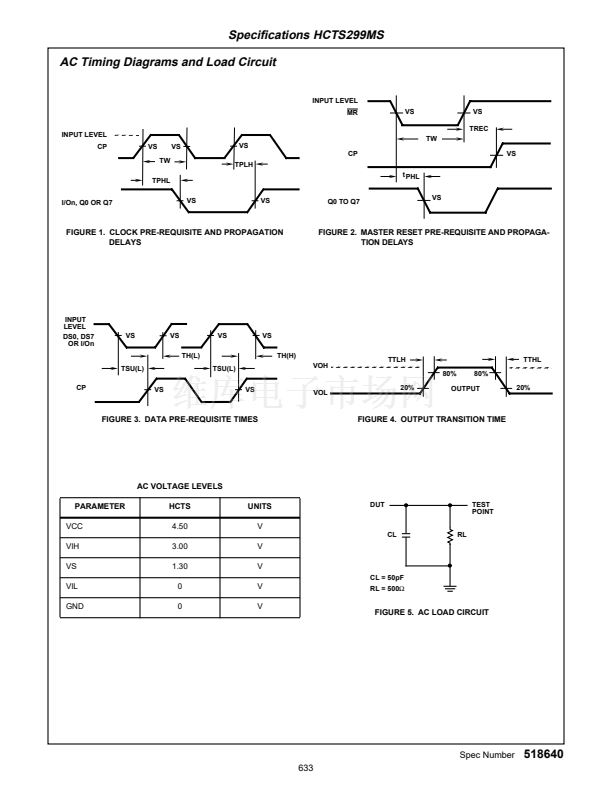

HCTS299MS
August 1995
Radiation Hardened
8-Bit Universal Shift Register; Three-State
Pinouts
20 LEAD CERAMIC DUAL-IN-LINE
METAL SEAL PACKAGE (SBDIP)
MIL-STD-1835 CDIP2-T20
TOP VIEW
S0
OE1
OE2
I/O6
I/O4
I/O2
I/O0
Q0
MR
1
2
3
4
5
6
7
8
9
20 VCC
19 S1
18 DS7
17 Q7
16 I/O7
15 I/O5
14 I/O3
13 I/O1
12 CP
11 DS0
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
3 Micron Radiation Hardened CMOS SOS
Total Dose 200K RAD (Si)
SEP Effective LET No Upsets: >100 MEV-cm
2
/mg
Single Event Upset (SEU) Immunity < 2 x 10
-9
Errors/
Bit-Day (Typ)
Dose Rate Survivability: >1 x 10
12
RAD (Si)/s
Dose Rate Upset >10
10
RAD (Si)/s 20ns Pulse
Latch-Up Free Under Any Conditions
Fanout (Over Temperature Range)
-Bus Driver Outputs: 15 LSTTL Loads
Military Temperature Range: -55
o
C to +125
o
C
Signi鏗乧ant Power Reduction Compared to LSTTL ICs
DC Operating Voltage Range: 4.5V to 5.5V
LSTTL Input Compatibility
-VIL = 0.8V Max
-VIH = VCC/2 Min
Input Current Levels Ii
鈮?/div>
5碌A(chǔ) at VOL, VOH
GND 10
鈥?/div>
Description

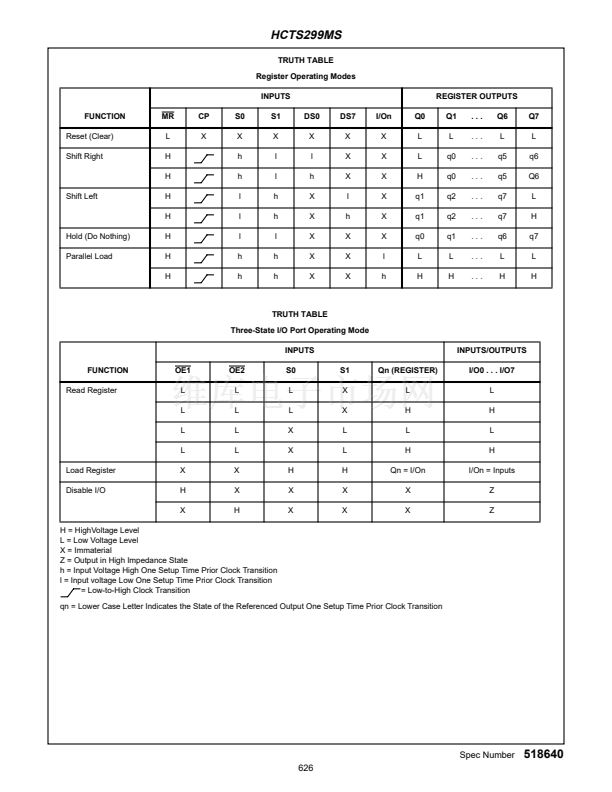

The Intersil HCTS299MS is a Radiation Hardened 8-bit shift/
storage register with three-state bus interface capability. The
register has four synchronous operating modes controlled by
the two select inputs (S0, S1). The mode select, the serial
data (DS0, DS7) and the parallel data (IO0 - IO7) respond
only to the low to high transition of the clock (CP) pulse. S0,
S1 and the data inputs must be one set up time period prior
to the clocks positive transition. The master reset (MR) is an
asynchronous active low input.
The HCTS299MS utilizes advanced CMOS/SOS technology
to achieve high-speed operation. This device is a member of
radiation hardened, high-speed, CMOS/SOS Logic Family
with TTL input compatibility.
20 LEAD CERAMIC METAL SEAL
FLATPACK PACKAGE (FLATPACK)
MIL-STD-1835 CDFP4-F20
TOP VIEW
S0
OE1
OE2
I/O6
I/O4
I/O2
I/O0
Q0
MR
GND
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
VCC
S1
DS7
Q7
I/O7
I/O5
I/O3
I/O1
CP
DS0
Ordering Information
PART NUMBER
HCTS299DMSR
HCTS299KMSR
HCTS299D/Sample
HCTS299K/Sample
HCTS299HMSR
TEMPERATURE RANGE
-55
o
C to +125
o
C
-55
o
C to +125
o
C
+25
o
C
+25
o
C
+25
o
C
SCREENING LEVEL
Intersil Class S Equivalent
Intersil Class S Equivalent
Sample
Sample
Die
PACKAGE
20 Lead SBDIP
20 Lead Ceramic Flatpack
20 Lead SBDIP
20 Lead Ceramic Flatpack
Die
DB NA
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
http://www.intersil.com or 407-727-9207
|
Copyright
漏
Intersil Corporation 1999
Spec Number
File Number
624
518640
3069.1
