HCTS163D Datasheet

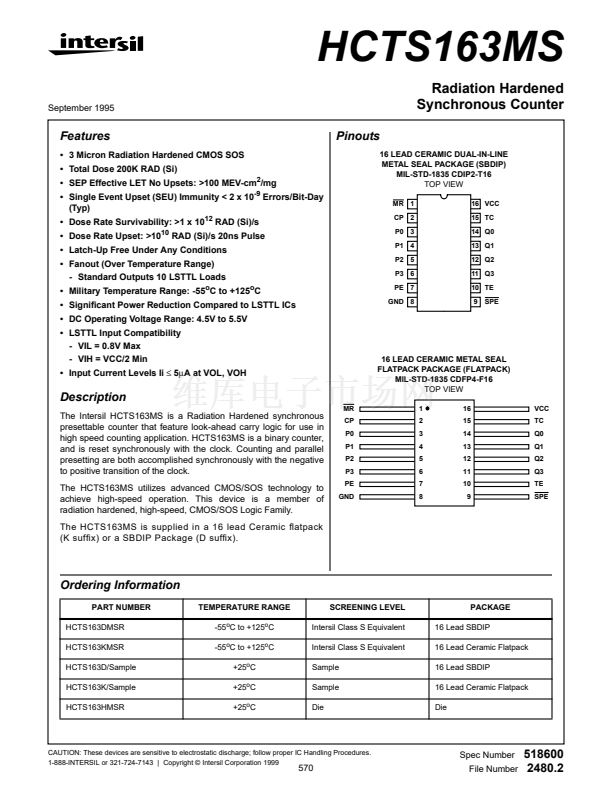

  • HCTS163D

  • Radiation Hardened Synchronous Counter

  • 9頁

  • INTERSIL   INTERSIL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

HCTS163MS
September 1995
Radiation Hardened
Synchronous Counter
Pinouts
16 LEAD CERAMIC DUAL-IN-LINE
METAL SEAL PACKAGE (SBDIP)
MIL-STD-1835 CDIP2-T16
TOP VIEW
MR 1
CP 2
P0 3
P1 4
P2 5
P3 6
PE 7
GND 8
16 VCC
15 TC
14 Q0
13 Q1
12 Q2
11 Q3
10 TE
9
SPE
Features
鈥?3 Micron Radiation Hardened CMOS SOS
鈥?Total Dose 200K RAD (Si)
鈥?SEP Effective LET No Upsets: >100 MEV-cm
2
/mg
鈥?Single Event Upset (SEU) Immunity < 2 x 10
-9
Errors/Bit-Day
(Typ)
鈥?Dose Rate Survivability: >1 x 10
12
RAD (Si)/s
鈥?Dose Rate Upset: >10
10
RAD (Si)/s 20ns Pulse
鈥?Latch-Up Free Under Any Conditions
鈥?Fanout (Over Temperature Range)
- Standard Outputs 10 LSTTL Loads
鈥?Military Temperature Range: -55
o
C to +125
o
C
鈥?Signi鏗乧ant Power Reduction Compared to LSTTL ICs
鈥?DC Operating Voltage Range: 4.5V to 5.5V
鈥?LSTTL Input Compatibility
- VIL = 0.8V Max
- VIH = VCC/2 Min
鈥?Input Current Levels Ii
鈮?/div>
5碌A(chǔ) at VOL, VOH
Description
MR
16 LEAD CERAMIC METAL SEAL
FLATPACK PACKAGE (FLATPACK)
MIL-STD-1835 CDFP4-F16
TOP VIEW
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
VCC
TC
Q0
Q1
Q2
Q3
TE
SPE
The Intersil HCTS163MS is a Radiation Hardened synchronous
presettable counter that feature look-ahead carry logic for use in
high speed counting application. HCTS163MS is a binary counter,
and is reset synchronously with the clock. Counting and parallel
presetting are both accomplished synchronously with the negative
to positive transition of the clock.
The HCTS163MS utilizes advanced CMOS/SOS technology to
achieve high-speed operation. This device is a member of
radiation hardened, high-speed, CMOS/SOS Logic Family.
The HCTS163MS is supplied in a 16 lead Ceramic 鏗俛tpack
(K suf鏗亁) or a SBDIP Package (D suf鏗亁).
CP
P0
P1
P2
P3
PE
GND
Ordering Information
PART NUMBER
HCTS163DMSR
HCTS163KMSR
HCTS163D/Sample
HCTS163K/Sample
HCTS163HMSR
TEMPERATURE RANGE
-55
o
C to +125
o
C
-55
o
C to +125
o
C
+25
o
C
+25
o
C
+25
o
C
SCREENING LEVEL
Intersil Class S Equivalent
Intersil Class S Equivalent
Sample
Sample
Die
PACKAGE
16 Lead SBDIP
16 Lead Ceramic Flatpack
16 Lead SBDIP
16 Lead Ceramic Flatpack
Die
DB NA
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143 | Copyright 漏 Intersil Corporation 1999
Spec Number
File Number
570
518600
2480.2
