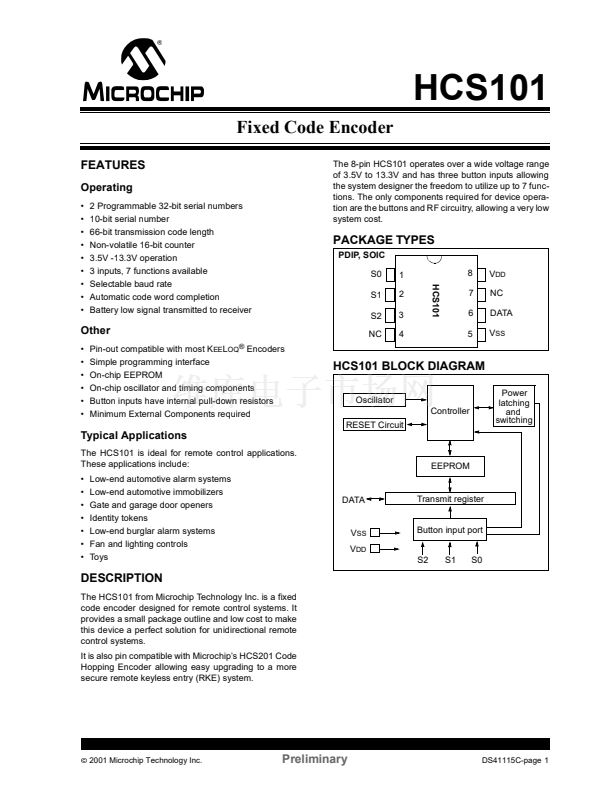

HCS101
Fixed Code Encoder
FEATURES
Operating
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
2 Programmable 32-bit serial numbers
10-bit serial number
66-bit transmission code length
Non-volatile 16-bit counter
3.5V -13.3V operation
3 inputs, 7 functions available
Selectable baud rate
Automatic code word completion
Battery low signal transmitted to receiver
The 8-pin HCS101 operates over a wide voltage range
of 3.5V to 13.3V and has three button inputs allowing
the system designer the freedom to utilize up to 7 func-
tions. The only components required for device opera-
tion are the buttons and RF circuitry, allowing a very low
system cost.
PACKAGE TYPES
PDIP, SOIC
S0
S1
S2
NC
1
HCS101
2
3
4
8
7
6
5
V
DD
NC
DATA
V
SS
Other
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Pin-out compatible with most K
EE
L
OQ廬
Encoders
Simple programming interface
On-chip EEPROM
On-chip oscillator and timing components
Button inputs have internal pull-down resistors
Minimum External Components required
HCS101 BLOCK DIAGRAM
Oscillator
Controller
RESET Circuit
Power
latching
and
switching
Typical Applications
The HCS101 is ideal for remote control applications.
These applications include:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Low-end automotive alarm systems
Low-end automotive immobilizers
Gate and garage door openers
Identity tokens
Low-end burglar alarm systems
Fan and lighting controls
Toys
EEPROM
DATA
Transmit register
V
SS
V
DD
Button input port
S2
S1
S0
DESCRIPTION
The HCS101 from Microchip Technology Inc. is a fixed
code encoder designed for remote control systems. It
provides a small package outline and low cost to make
this device a perfect solution for unidirectional remote
control systems.
It is also pin compatible with Microchip鈥檚 HCS201 Code
Hopping Encoder allowing easy upgrading to a more
secure remote keyless entry (RKE) system.
2001 Microchip Technology Inc.
Preliminary
DS41115C-page 1
漏
