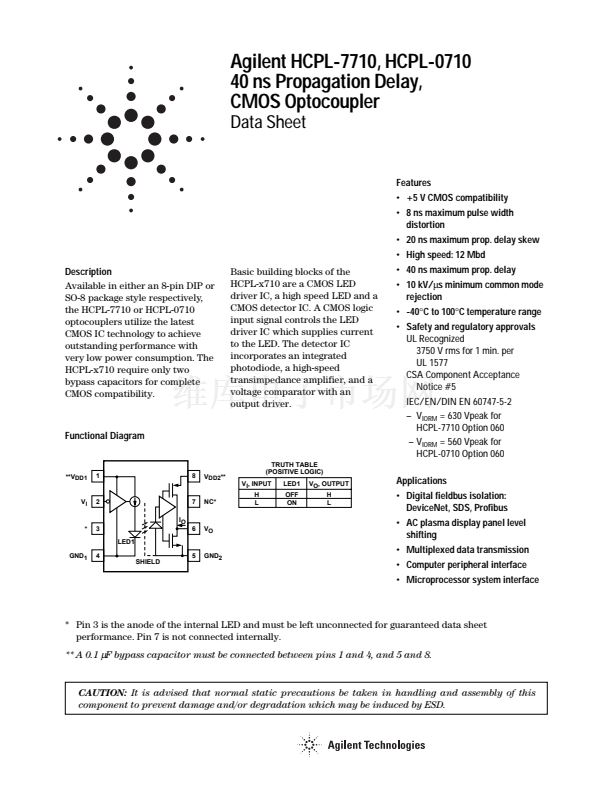

Agilent HCPL-7710, HCPL-0710
40 ns Propagation Delay,
CMOS Optocoupler
Data Sheet

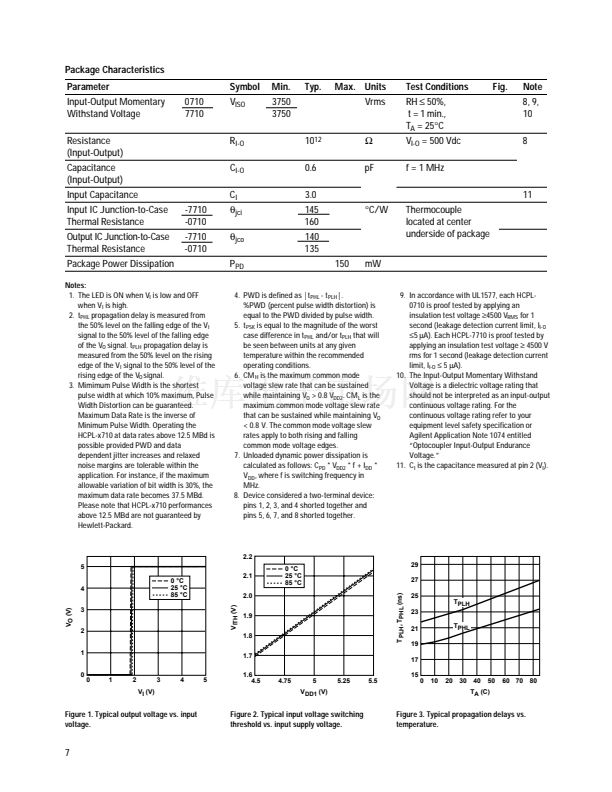

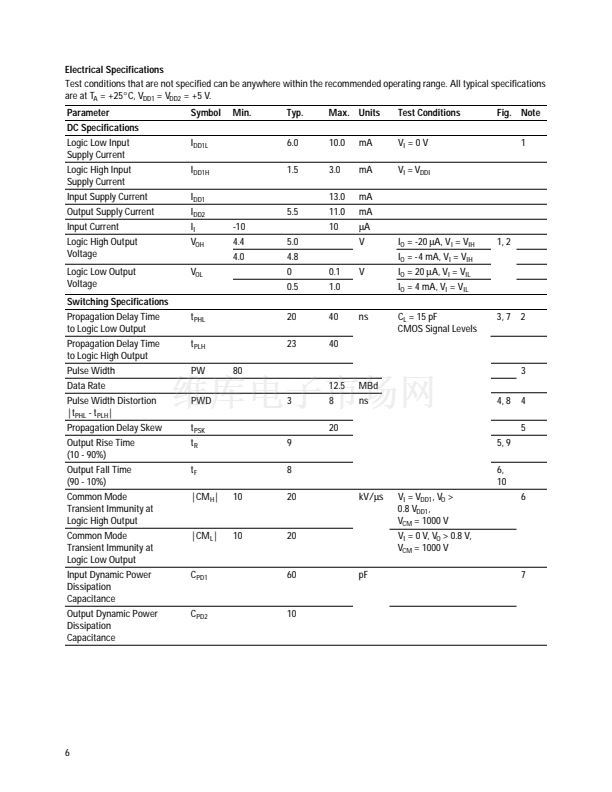

Features
鈥?+5 V CMOS compatibility
鈥?8 ns maximum pulse width
distortion
鈥?20 ns maximum prop. delay skew
鈥?High speed: 12 Mbd
Description

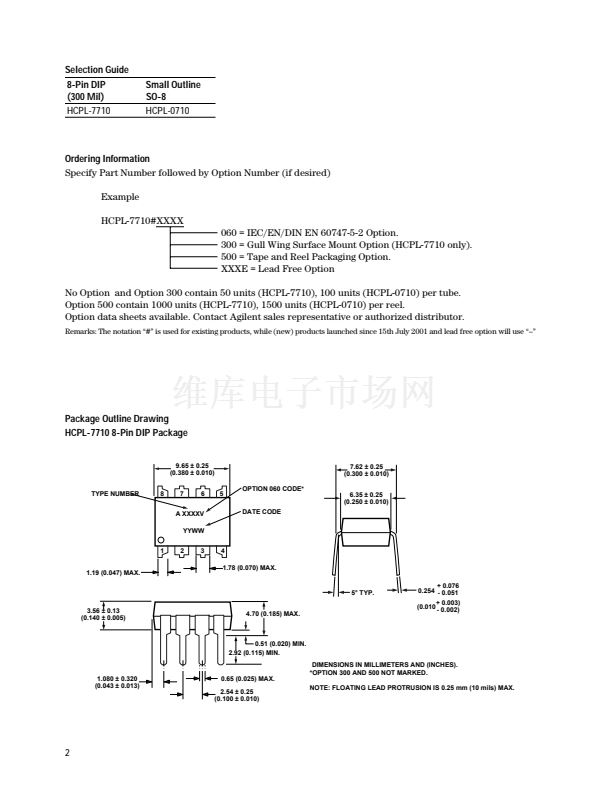

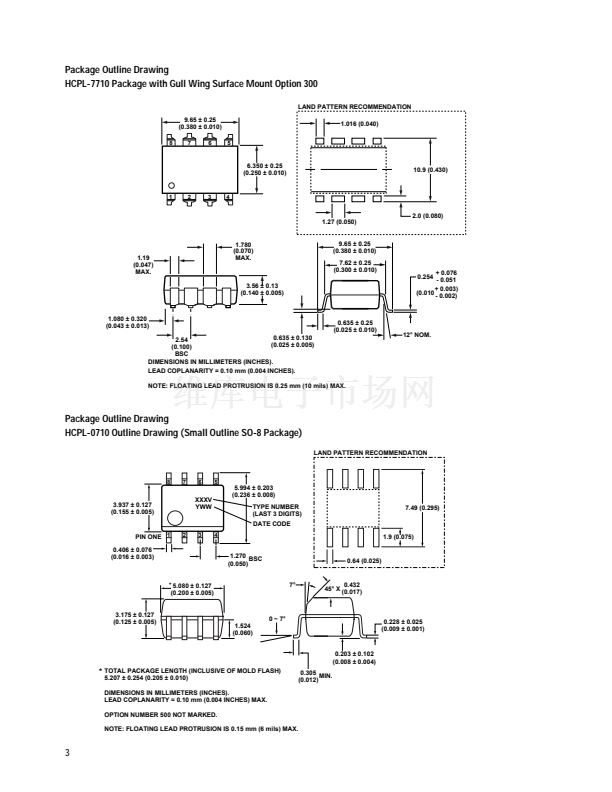

Available in either an 8-pin DIP or
SO-8 package style respectively,
the HCPL-7710 or HCPL-0710
optocouplers utilize the latest
CMOS IC technology to achieve
outstanding performance with
very low power consumption. The
HCPL-x710 require only two
bypass capacitors for complete
CMOS compatibility.
Basic building blocks of the
HCPL-x710 are a CMOS LED
driver IC, a high speed LED and a
CMOS detector IC. A CMOS logic
input signal controls the LED
driver IC which supplies current
to the LED. The detector IC
incorporates an integrated
photodiode, a high-speed
transimpedance amplifier, and a
voltage comparator with an
output driver.
鈥?40 ns maximum prop. delay
鈥?10 kV/碌s minimum common mode
rejection
鈥?-40擄C to 100擄C temperature range

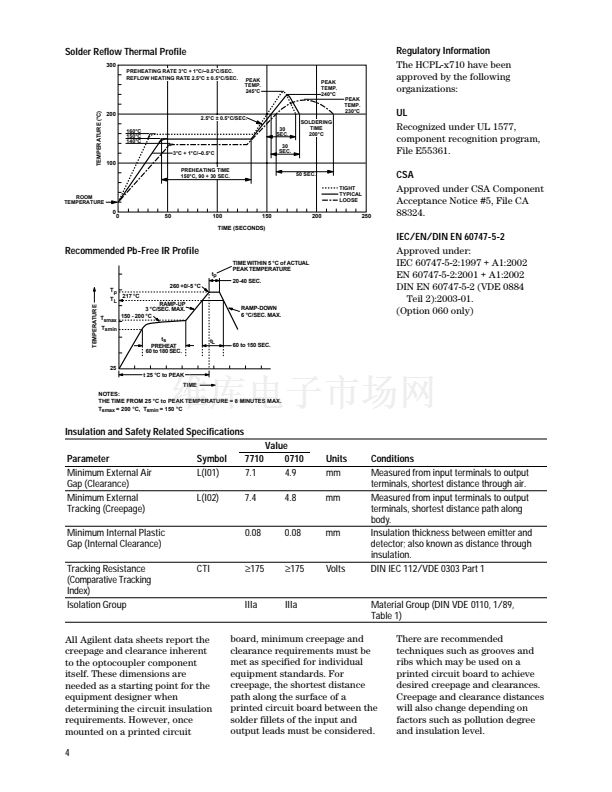

鈥?Safety and regulatory approvals
UL Recognized
3750 V rms for 1 min. per
UL 1577
CSA Component Acceptance
Notice #5

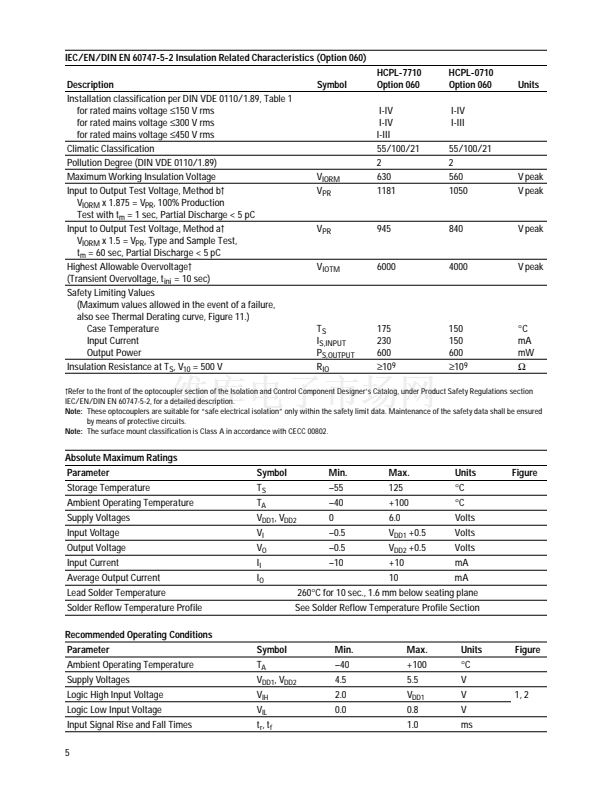

IEC/EN/DIN EN 60747-5-2
鈥?V
IORM
= 630 Vpeak for
HCPL-7710 Option 060
鈥?V
IORM
= 560 Vpeak for
HCPL-0710 Option 060
Applications

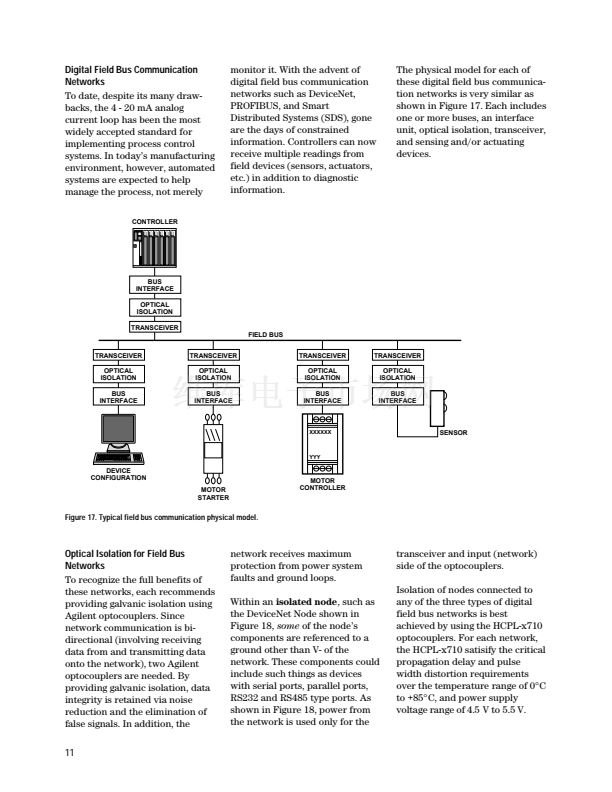

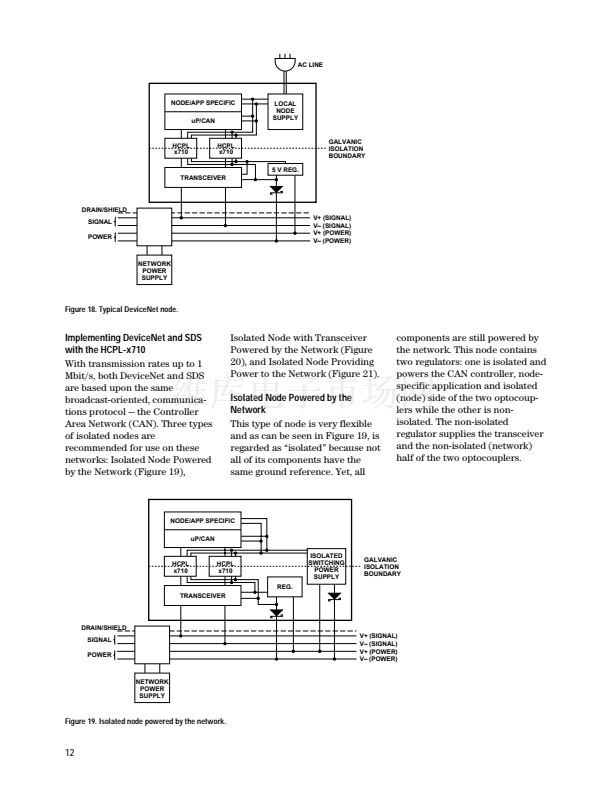

鈥?Digital fieldbus isolation:

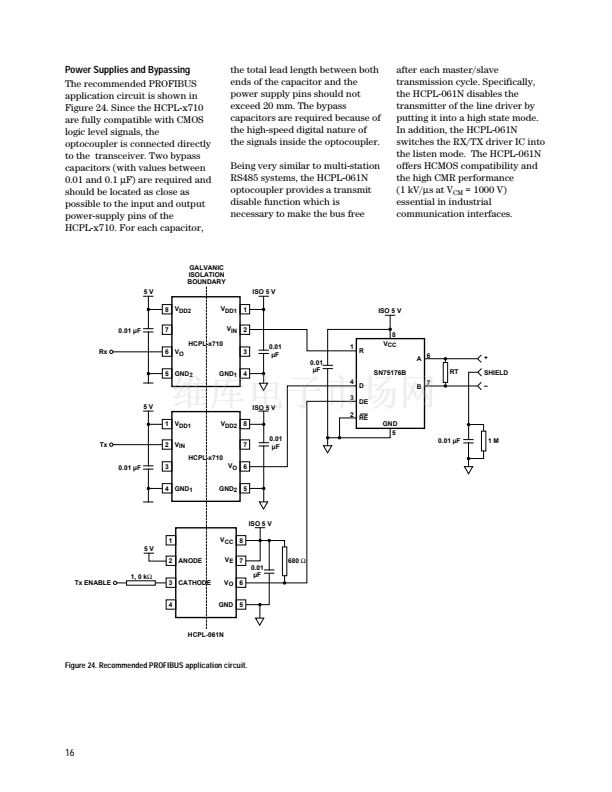

DeviceNet, SDS, Profibus
鈥?AC plasma display panel level
shifting
鈥?Multiplexed data transmission
鈥?Computer peripheral interface
鈥?Microprocessor system interface

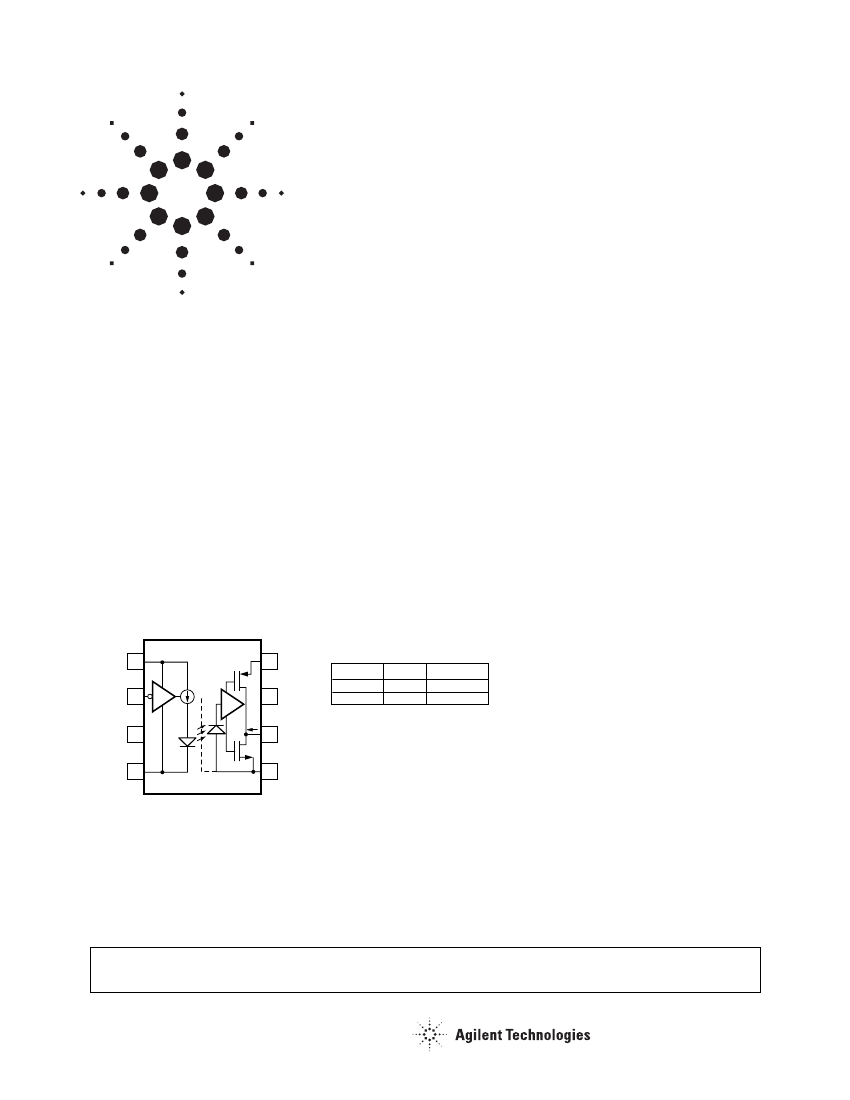

Functional Diagram
TRUTH TABLE
(POSITIVE LOGIC)
V
I
, INPUT
V
I
2
I
O
*
3
LED1
GND
1
4
SHIELD
5
GND
2
6
V
O
7
NC*
H
L
LED1
OFF
ON
V
O
, OUTPUT
H
L
**V
DD1
1
8
V
DD2
**
* Pin 3 is the anode of the internal LED and must be left unconnected for guaranteed data sheet
performance. Pin 7 is not connected internally.

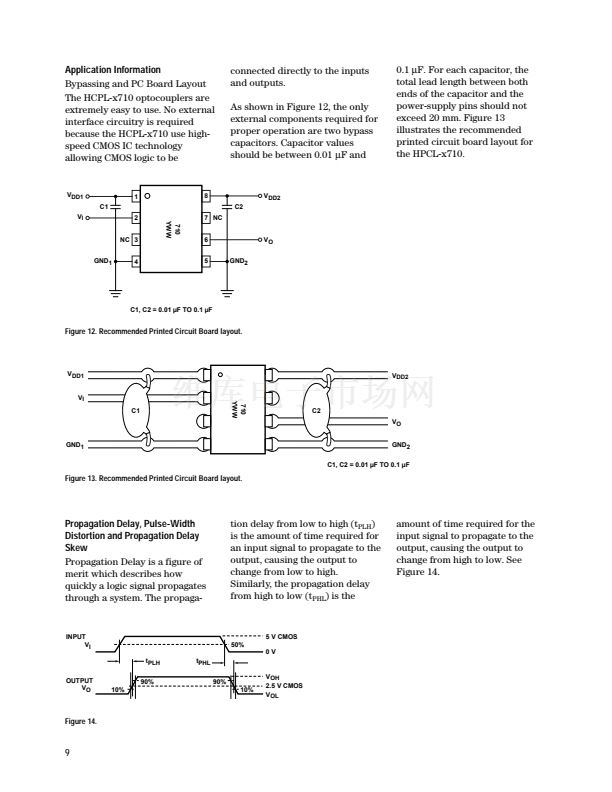

** A 0.1
碌
F bypass capacitor must be connected between pins 1 and 4, and 5 and 8.
CAUTION:
It is advised that normal static precautions be taken in handling and assembly of this
component to prevent damage and/or degradation which may be induced by ESD.
