HD66710
(Dot Matrix Liquid Crystal Display Controller/Driver)
Description
The HD66710 dot-matrix liquid crystal display controller and driver LSI displays alphanumerics,
numbers, and symbols. It can be configured to drive a dot-matrix liquid crystal display under the control
of a 4- or 8-bit microprocessor. Since all the functions such as display RAM, character generator, and
liquid crystal driver, required for driving a dot-matrix liquid crystal display are internally provided on one
chip, a minimum system can be interfaced with this controller/driver.
A single HD66710 is capable of displaying a single16-character line, two 16-character lines, or up to four
8-character lines.

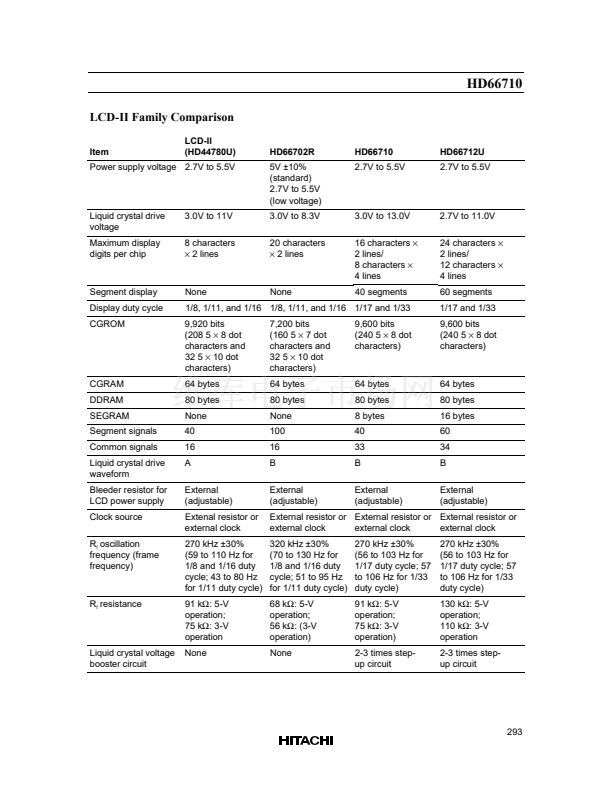

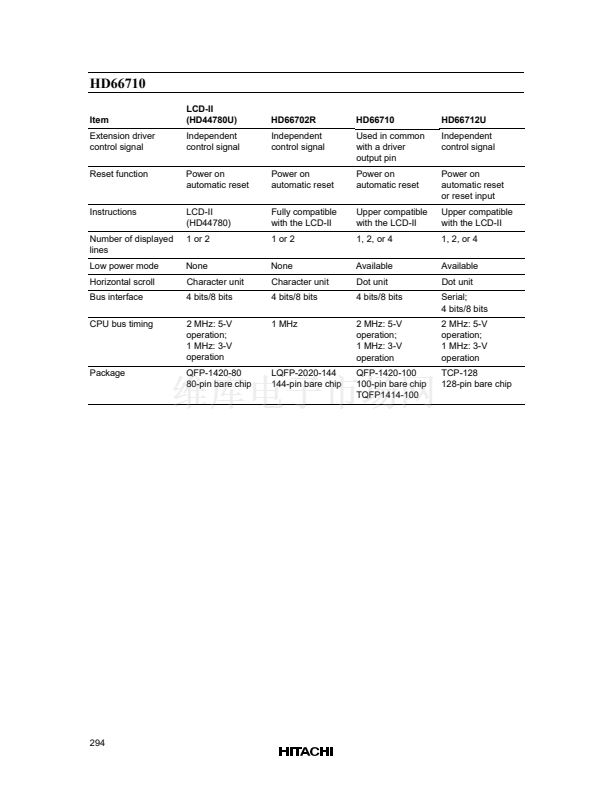

The HD66710 software is upwardly compatible with the LCD-II (HD44780) which allows the user to
easily replace an LCD-II with an HD66710. In addition, the HD66710 is equipped with functions such as
segment displays for icon marks, a 4-line display mode, and a horizontal smooth scroll, and thus supports
various display forms. This achieves various display forms. The HD66710 character generator ROM is
extended to generate 240 5
脳
8 dot characters.
The low voltage version (2.7V) of the HD66710, combined with a low power mode, is suitable for any
portable battery-driven product requiring low power dissipation.

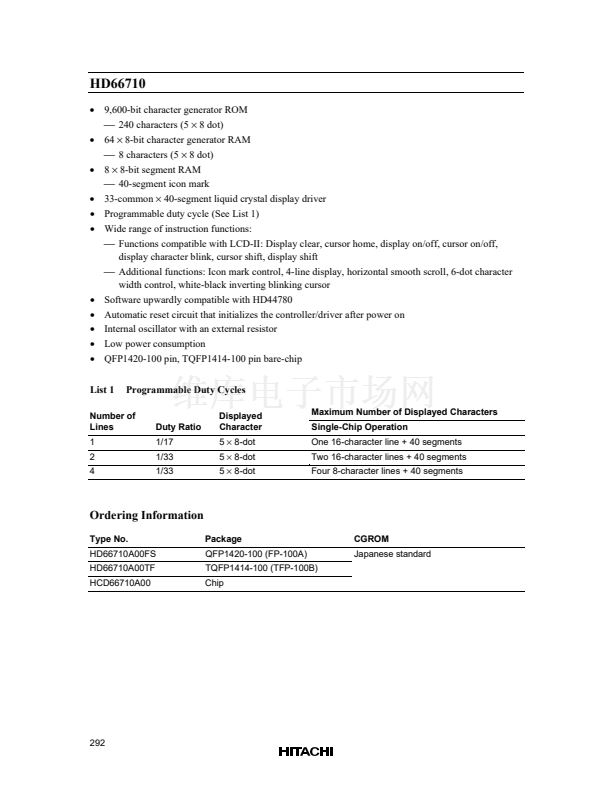

Features
鈥?/div>
5
脳
8 dot matrix possible
鈥?/div>
Low power operation support:
錚?/div>
2.7V to 5.5V (low voltage)
鈥?/div>

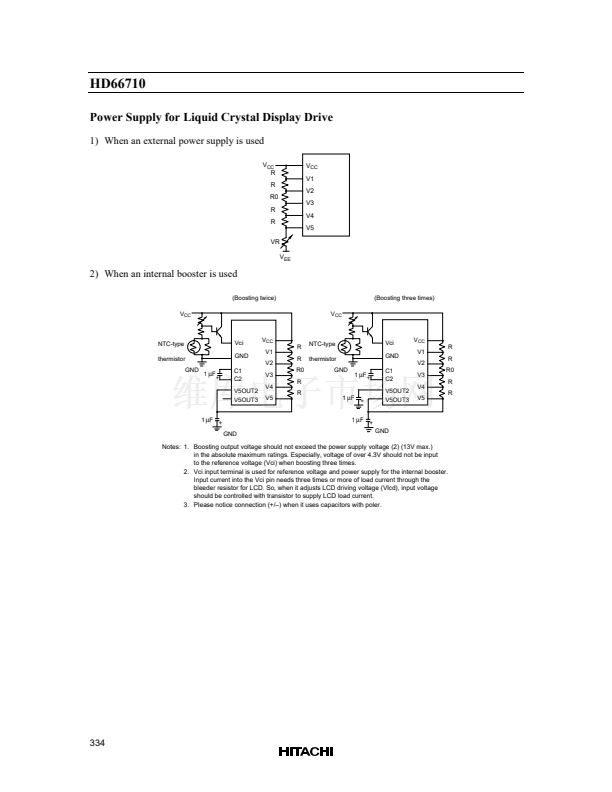

Booster for liquid crystal voltage
錚?/div>
Two/three times (13V max.)
鈥?/div>
Wide range of liquid crystal display driver voltage
錚?/div>
3.0V to 13V
鈥?/div>

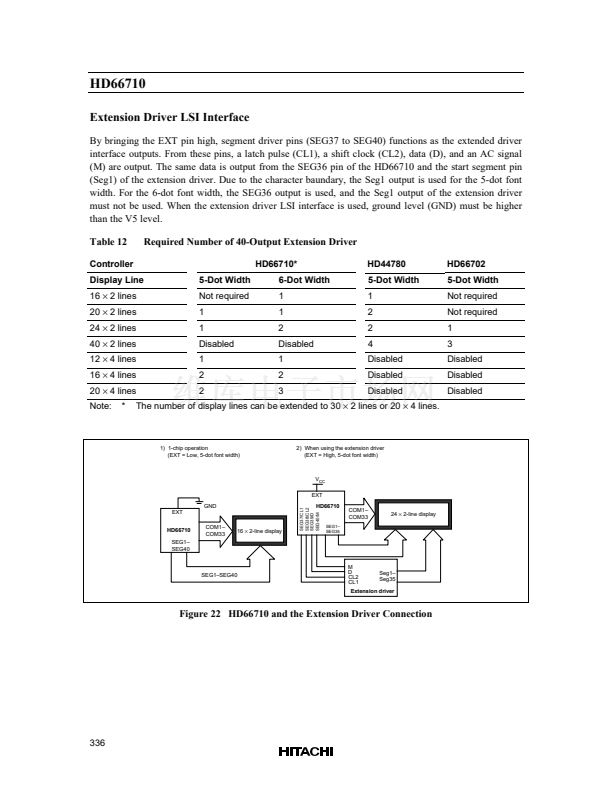

Extension driver interface
鈥?/div>
High-speed MPU bus interface (2 MHz at 5-V operation)
鈥?/div>

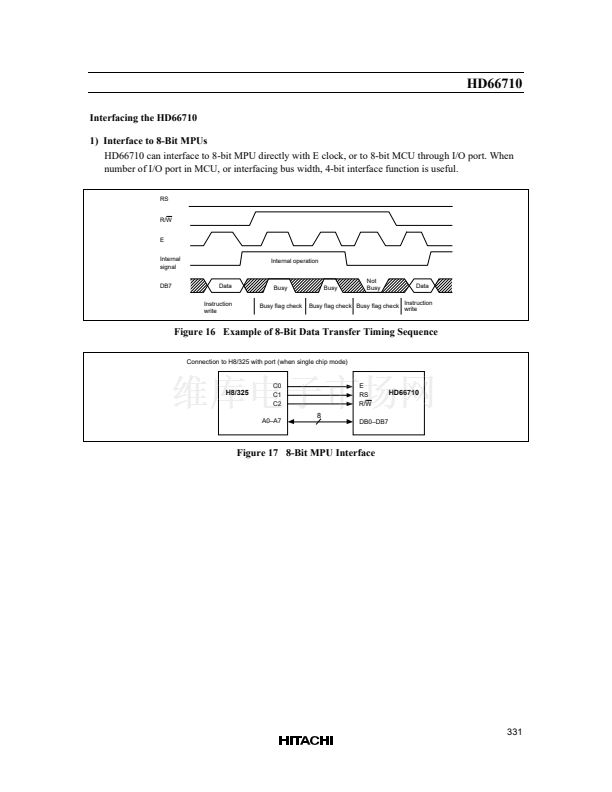

4-bit or 8-bit MPU interface capability
鈥?/div>
80
脳
8-bit display RAM (80 characters max.)
291
