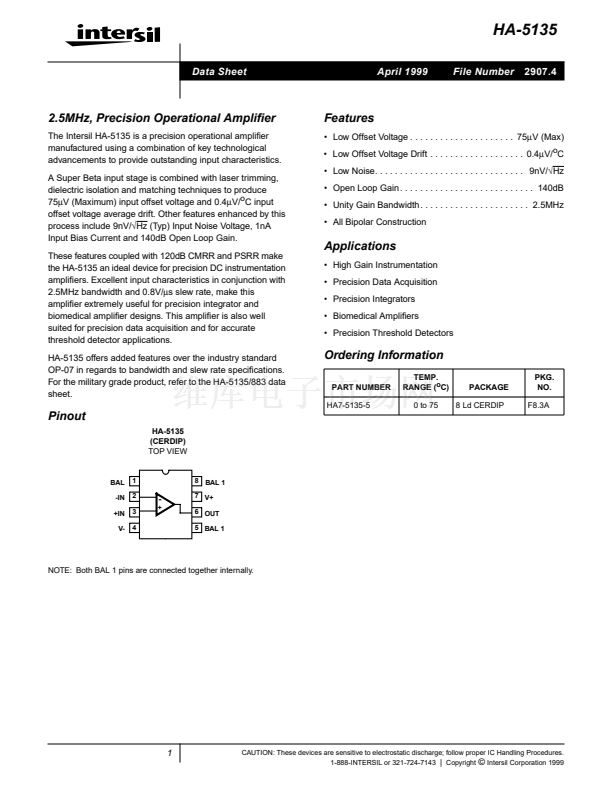

HA-5135

Data Sheet

April 1999

File Number

2907.4

2.5MHz, Precision Operational Ampli鏗乪r

The Intersil HA-5135 is a precision operational ampli鏗乪r

manufactured using a combination of key technological

advancements to provide outstanding input characteristics.

A Super Beta input stage is combined with laser trimming,

dielectric isolation and matching techniques to produce

75碌V (Maximum) input offset voltage and 0.4碌V/

o

C input

offset voltage average drift. Other features enhanced by this

process include 9nV/鈭欻z (Typ) Input Noise Voltage, 1nA

Input Bias Current and 140dB Open Loop Gain.

These features coupled with 120dB CMRR and PSRR make

the HA-5135 an ideal device for precision DC instrumentation

ampli鏗乪rs. Excellent input characteristics in conjunction with

2.5MHz bandwidth and 0.8V/碌s slew rate, make this

ampli鏗乪r extremely useful for precision integrator and

biomedical ampli鏗乪r designs. This ampli鏗乪r is also well

suited for precision data acquisition and for accurate

threshold detector applications.

HA-5135 offers added features over the industry standard

OP-07 in regards to bandwidth and slew rate speci鏗乧ations.

For the military grade product, refer to the HA-5135/883 data

sheet.

Features

鈥?Low Offset Voltage . . . . . . . . . . . . . . . . . . . . . 75碌V (Max)

鈥?Low Offset Voltage Drift . . . . . . . . . . . . . . . . . . . 0.4碌V/

o

C

鈥?Low Noise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9nV/鈭欻z

鈥?Open Loop Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . 140dB

鈥?Unity Gain Bandwidth. . . . . . . . . . . . . . . . . . . . . . 2.5MHz

鈥?All Bipolar Construction

Applications

鈥?High Gain Instrumentation

鈥?Precision Data Acquisition

鈥?Precision Integrators

鈥?Biomedical Ampli鏗乪rs

鈥?Precision Threshold Detectors

Ordering Information

PART NUMBER

HA7-5135-5

TEMP.

RANGE (

o

C)

0 to 75

PACKAGE

8 Ld CERDIP

PKG.

NO.

F8.3A

Pinout

HA-5135

(CERDIP)

TOP VIEW

BAL

-IN

+IN

V-

1

2

3

4

8 BAL 1

-

+

7 V+

6 OUT

5 BAL 1

NOTE: Both BAL 1 pins are connected together internally.

1

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

|

Copyright

漏

Intersil Corporation 1999
