MITSUMI

microSD card connectors

CIM-H32N, H52N, H52R

Connectors

FEATURES

1. Push-in Push-out eject machanism.

Card eject distance 3.8mm

2. Small and tin design

Normal mount type [CIM-H32N] : H 1.85mm

W 13.7mm Length 16.0mm

Reverse mount type [CIM-H52R] : H 1.85mm

W 14.0mm Length 16.0mm

3. Prevent card jump out of a connector with

brake mechanism.

4. Switch With card detection [Normally open

type]

5. Prevent card drop from connector with half

lock mechanism.

CIM-H52R

CIM-H32N

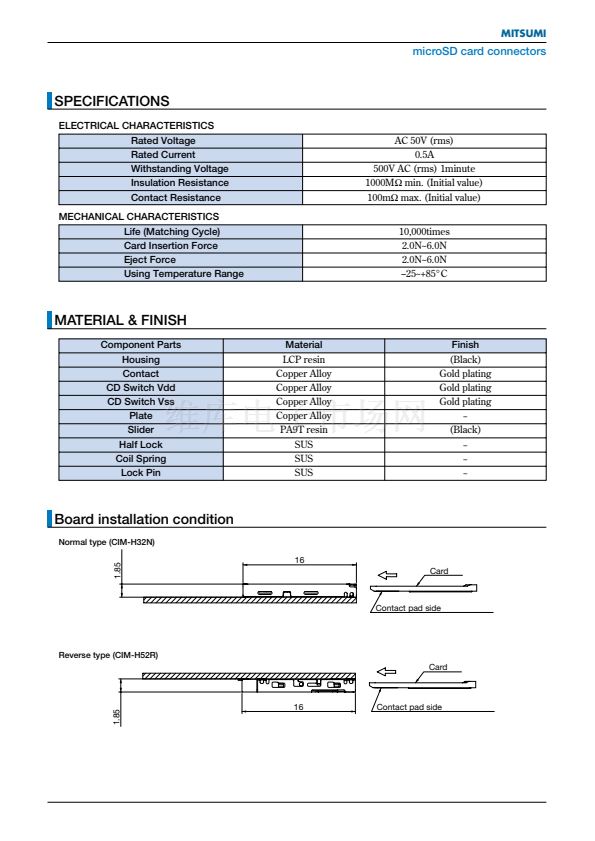

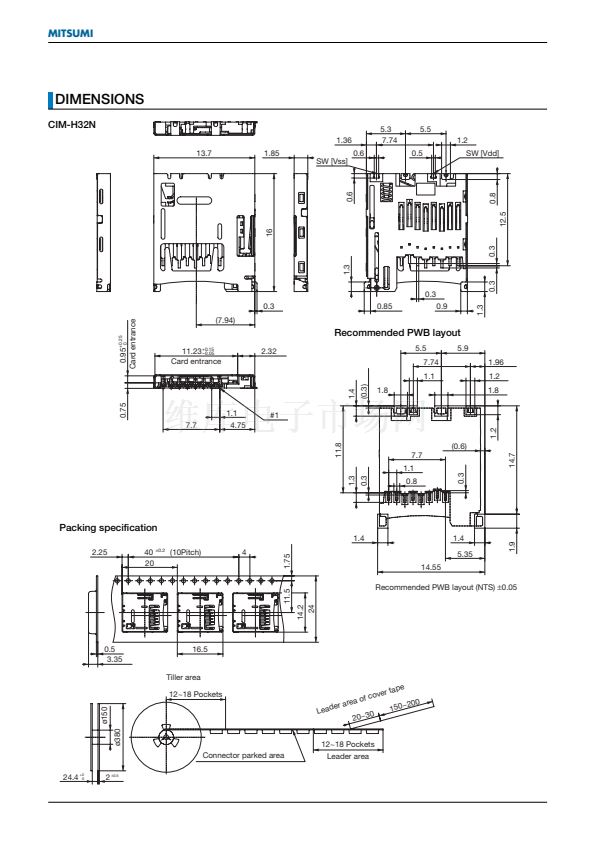

HOW TO ORDER

1. CIM-H32N

2. CIM-H52N

H32N-008-21 0 - A G G E

1

1

2

3

4

5

6

7

8

2

3

4

5

6

7 8

Series No. (H32N : Nomal type)

No. of contacts (008 : 8pins)

Housing material (21 : LCP resin)

Housing UL grade (0 : UL94V-0)

Contact plating (A : Gold)

Contact plating thickness (G : 3碌m)

Contact read style (G : Angle SMT)

Package (E : Taping)

H52N-008-21 0 - A G G E

1

1

2

3

4

5

6

7

8

2

3

4

5

6

7 8

Series No. (H52N : Nomal type) (H52R : Reverse type)

No. of contacts (008 : 8pins)

Housing material (21 : LCP resin)

Housing UL grade (0 : UL94V-0)

Contact plating (A : Gold)

Contact plating thickness (G : 3碌m)

Contact read style (G : Angle SMT)

Package (E : Taping)
