D
ual
R
elays
25-40A
mp
鈥?120/240, 480 V
ac
鈥?AC OUTPUT
鈥?Zero Voltage
and
Random
Turn-On Swi
tching
鈥?SCR Output
鈥?Industry Standard Package
鈥?Panel M
ount
Two totally independent AC output
relays come in a single standard panel-
mount package. Utilizing an AC switch
output with internal snubber, relays
provide greater protection against false
triggering. Model choices include zero-
voltage or random turn-on (phase con-
trollable) switching.
Manufactured in Crydom's ISO 9001
Certified facility for optimum product
performance and reliability.
H12D4825D
H12D4825DE
H12D4840D
H12D4840DE
MODEL NUMBERS
OUTPUT SPECIFICATIONS
鉃€
Operating Voltage (47-63 Hz) [Vrms]
Load Current Range
鉃?/div>
[Arms]
Transient Overvoltage [Vpk]
Max. Surge Current, (16.6ms) [Apk]
Max. On-State Voltage Drop @ Rated Current [Vpk]
Thermal Resistance Junction to Case (R
胃JC
) [沒C/W]
Maximum I2 t for Fusing, (8.3 msec.) [A2sec]
Max. Off-State Leakage Current @ Rated Voltage [mArms]
Min. Off-State dv/dt @ Max. Rated Voltage [V/碌sec]
鉃?/div>
Max. Turn-On Time
Max. Turn-Off Time
Power Factor (Min.) with Max. Load
D2425D
D2425DE
D2440D
D2440DE
24-280
.15-25
600
250
1.6
1.02
260
10
500
1/2 cycle
1/2 cycle
0.5
24-280
.15-40
600
625
1.6
.63
1620
10
500
1/2 cycle
1/2 cycle
0.5
48-530
.15-25
1200
250
1.6
1.02
260
10
500
1/2 cycle
1/2 cycle
0.5
48-530
.15-40
1200
625
1.6
.63
1620
10
500
1/2 cycle
1/2 cycle
0.5
鉃€
鉃?/div>
INPUT SPECIFICATIONS
鉃€
Control Voltage Range
Max. Turn-On Voltage
Min. Turn-Off Voltage
Nominal Input Impedance
Typical Input Current @ 5Vdc (@ 24Vdc for E-Suffix)
D24XXD
4-15Vdc
4.0 Vdc
1.0 Vdc
300 Ohms
13mA
H12D48XXD
4-15Vdc
4.0 Vdc
1.0 Vdc
240 Ohms
13mA
E-SUFFIX
15-32Vdc
15 Vdc
1.0 Vdc
1500 Ohms
15mA
GENERAL NOTES
漏 2003 CRYDOM CORP, Specifications subject to change without notice.
鉃€
All parameters at 25藲C and per section unless otherwise specified.
鉃?/div>
Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
鉃?/div>

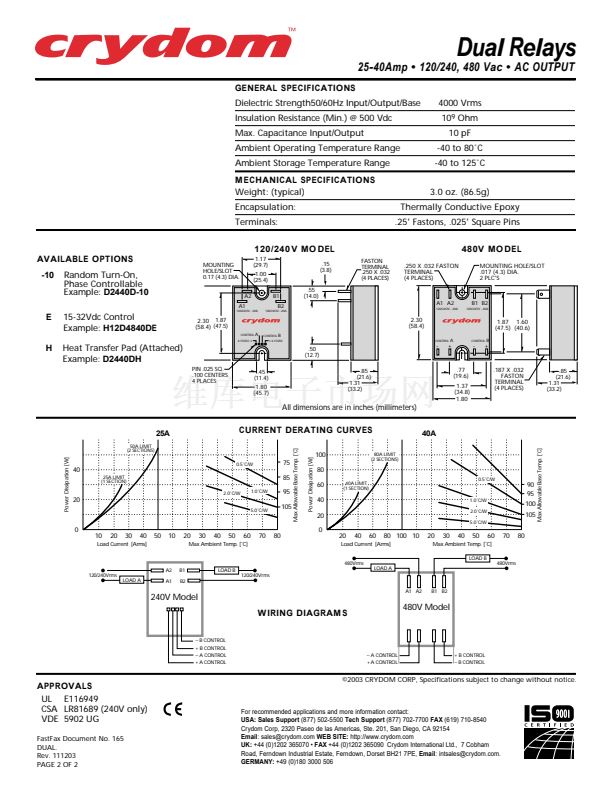

Heat sinking required, for derating curves see page 2.
鉃?/div>
Turn-on time for random turn-on (-10) versions is 0.1 msec.
Crydom Heat Sinks
offer excellent thermal
management and are perfectly matched to the
load current ratings of Crydom panel mount
relays. Request Crydom's Heat Sink specifica-
tion sheet for all the details.
FastFax Document No. 165
DUAL.
Rev. 111203
PAGE 1 OF 2
