H11AA814 Datasheet

  • H11AA814

  • NPN-OUTPUT AC-INPUT OPTOCOUPLER

  • 94.99KB

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

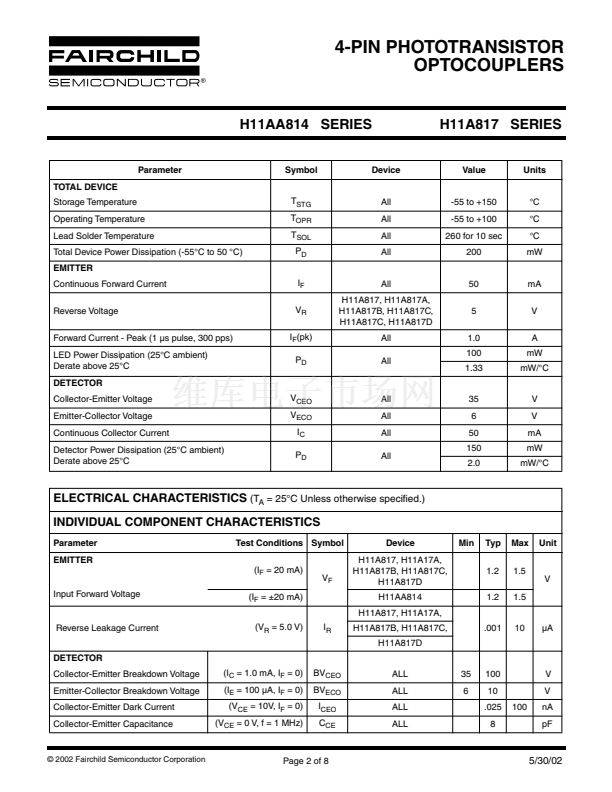

4-PIN PHOTOTRANSISTOR
OPTOCOUPLERS
H11AA814 SERIES
PACKAGE
H11A817 SERIES
H11AA814 SCHEMATIC
1
4 COLLECTOR
4
2
3 EMITTER
1
DESCRIPTION
The H11AA814 Series consists of two gallium arsenide infrared emitting diodes,
connected in inverse parallel, driving a single silicon phototransistor in a 4-pin
dual in-line package.
The H11A817 Series consists of a gallium arsenide infrared emitting diode
driving a silicon phototransistor in a 4-pin dual in-line package.
H11A817 SCHEMATIC
ANODE 1
4 COLLECTOR
FEATURES
鈥?Compact 4-pin package
鈥?Current transfer ratio in selected groups:
H11AA814: 20-300% H11A817: 50-600%
H11AA814A: 50-150% H11A817A: 80-160%
H11A817B: 130-260%
H11A817C: 200-400%
H11A817D: 300-600%
CATHODE 2
3 EMITTER
APPLICATIONS
H11AA814 Series
鈥?AC line monitor
鈥?Unknown polarity DC sensor
鈥?Telephone line interface
H11A817 Series
鈥?Power supply regulators
鈥?Digital logic inputs
鈥?Microprocessor inputs
漏 2002 Fairchild Semiconductor Corporation
Page 1 of 8
5/30/02

H11AA814 產品屬性

  • 2,000

  • 隔離器

  • 光隔離器 - 晶體管，光電輸出

  • -

  • 1

  • AC，DC

  • 5300Vrms

  • 100% @ 10mA

  • 300% @ 1mA

  • 70V

  • 50mA

  • 50mA

  • 200mV

  • 晶體管

  • 通孔

  • 4-DIP（0.300"，7.62mm）

  • 管件

  • H11AA814QTH11AA814QT-ND
