鈥?/div>
Small Size
Resistive Element
Substrate
Cover
Mounting Flange
Operating Temperature
Thick film
AlN Ceramic
Alumina Ceramic
Nickel Plated Copper
-55 to +150擄C (see de rating chart)
Tolerance is
鹵0.010鈥?
unless otherwise specified. Designed to meet of exceed
applicable portions of MIL-E-5400.
All dimensions in inches.
Electrical Specifications
Attenuation Value:
Power:
Frequency Range:
Return Loss
20 dB,
鹵
1.0 dB, DC 鈥?4.0GHz
100 Watts
DC 鈥?4.0 GHz
> 24 dB to 2.7 GHz
> 20 dB to 4.0 GHz
Specification based on unit properly installed using suggested mounting instructions
and a 50 ohm nominal impedance.
Specifications subject to change.

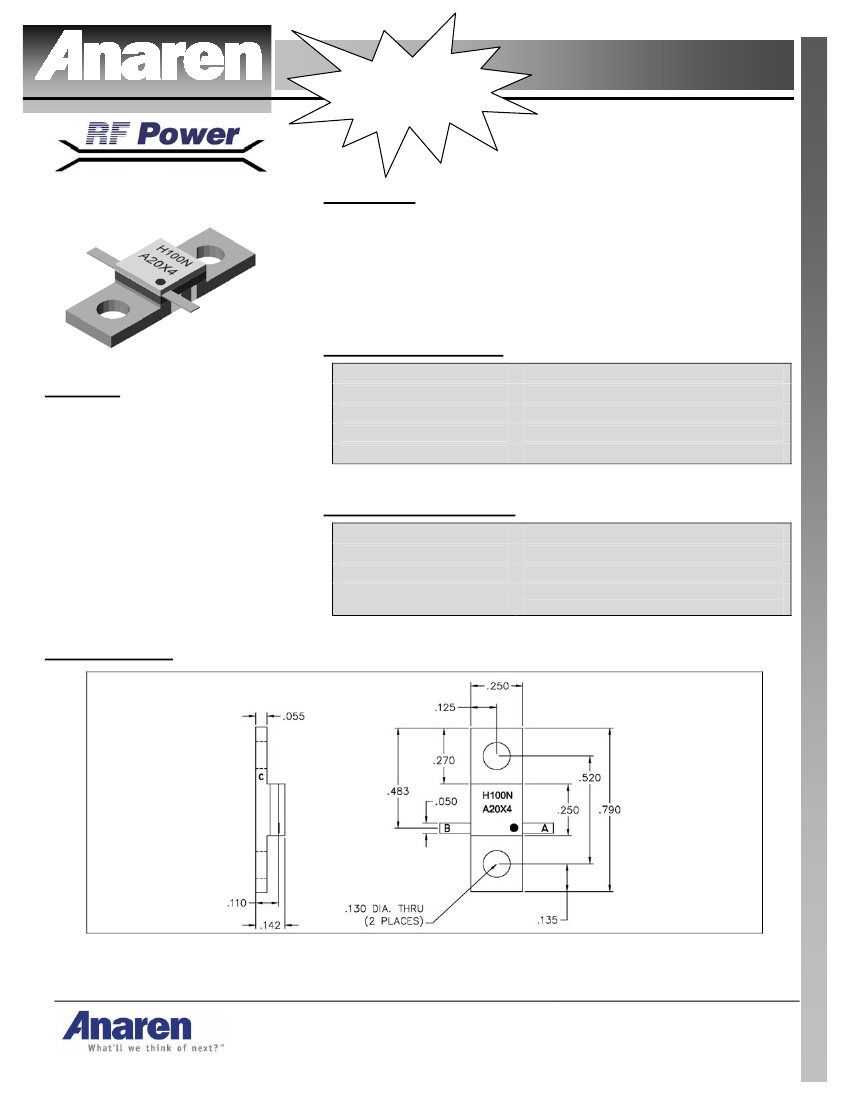

Outline Drawing

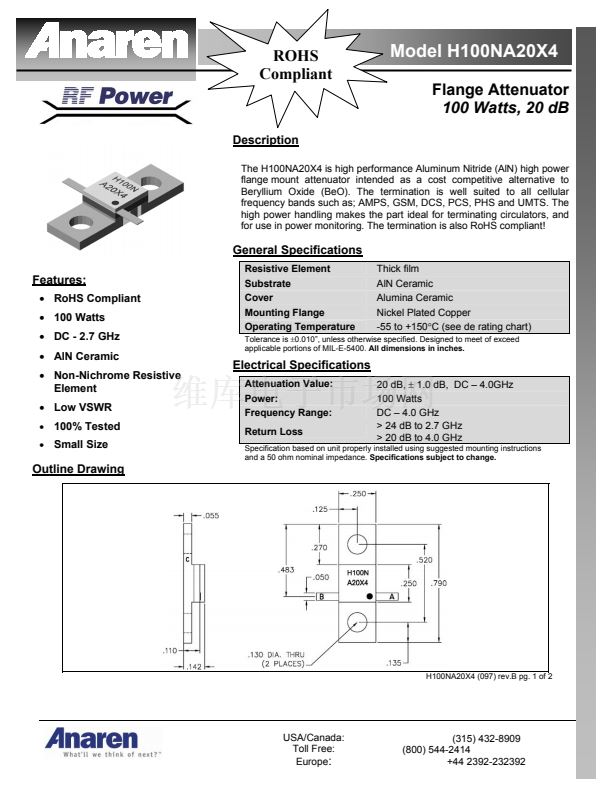

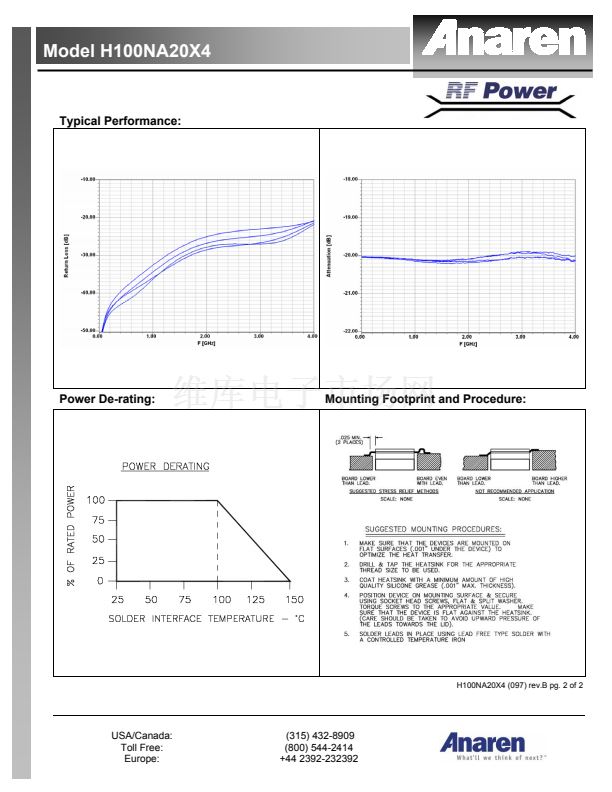

H100NA20X4 (097) rev.B pg. 1 of 2
