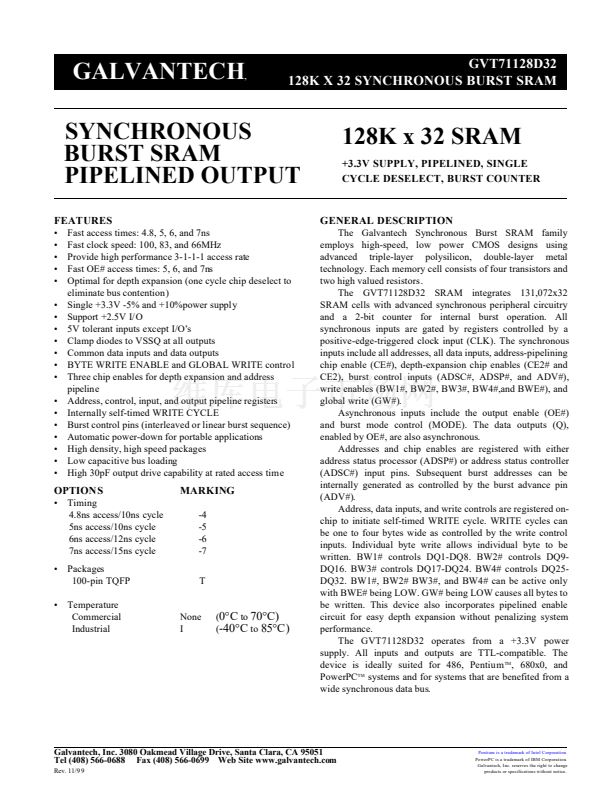

Fast access times: 4.8, 5, 6, and 7ns
Fast clock speed: 100, 83, and 66MHz
Provide high performance 3-1-1-1 access rate
Fast OE# access times: 5, 6, and 7ns
Optimal for depth expansion (one cycle chip deselect to
eliminate bus contention)
Single +3.3V -5% and +10%power supply
Support +2.5V I/O
5V tolerant inputs except I/O鈥檚
Clamp diodes to VSSQ at all outputs
Common data inputs and data outputs
BYTE WRITE ENABLE and GLOBAL WRITE control
Three chip enables for depth expansion and address
pipeline
Address, control, input, and output pipeline registers
Internally self-timed WRITE CYCLE
Burst control pins (interleaved or linear burst sequence)
Automatic power-down for portable applications
High density, high speed packages
Low capacitive bus loading
High 30pF output drive capability at rated access time
128K x 32 SRAM
+3.3V SUPPLY, PIPELINED, SINGLE
CYCLE DESELECT, BURST COUNTER
GENERAL DESCRIPTION
The Galvantech Synchronous Burst SRAM family
employs high-speed, low power CMOS designs using
advanced triple-layer polysilicon, double-layer metal
technology. Each memory cell consists of four transistors and
two high valued resistors.

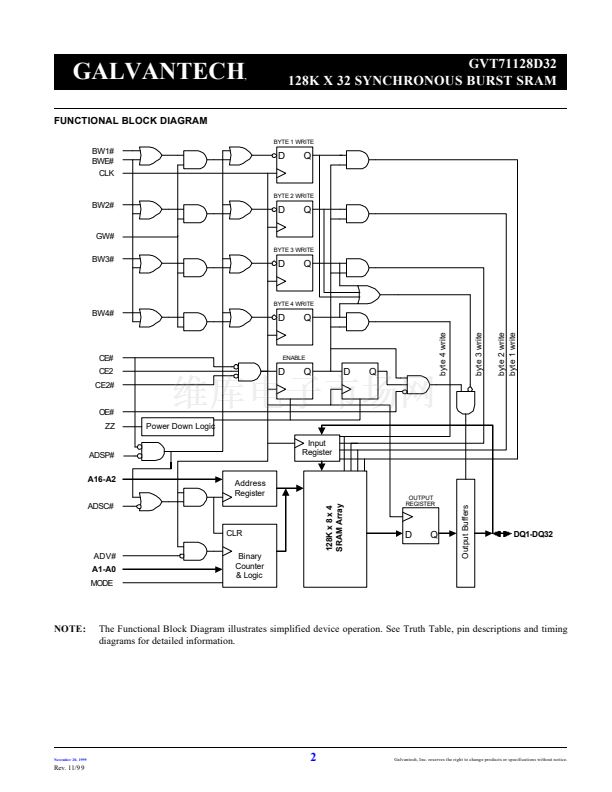

The GVT71128D32 SRAM integrates 131,072x32
SRAM cells with advanced synchronous peripheral circuitry
and a 2-bit counter for internal burst operation. All
synchronous inputs are gated by registers controlled by a
positive-edge-triggered clock input (CLK). The synchronous
inputs include all addresses, all data inputs, address-pipelining
chip enable (CE#), depth-expansion chip enables (CE2# and
CE2), burst control inputs (ADSC#, ADSP#, and ADV#),
write enables (BW1#, BW2#, BW3#, BW4#,and BWE#), and
global write (GW#).
Asynchronous inputs include the output enable (OE#)
and burst mode control (MODE). The data outputs (Q),
enabled by OE#, are also asynchronous.
Addresses and chip enables are registered with either
address status processor (ADSP#) or address status controller
(ADSC#) input pins. Subsequent burst addresses can be
internally generated as controlled by the burst advance pin
(ADV#).
Address, data inputs, and write controls are registered on-
chip to initiate self-timed WRITE cycle. WRITE cycles can
be one to four bytes wide as controlled by the write control
inputs. Individual byte write allows individual byte to be
written. BW1# controls DQ1-DQ8. BW2# controls DQ9-
DQ16. BW3# controls DQ17-DQ24. BW4# controls DQ25-
DQ32. BW1#, BW2# BW3#, and BW4# can be active only
with BWE# being LOW. GW# being LOW causes all bytes to
be written. This device also incorporates pipelined enable
circuit for easy depth expansion without penalizing system
performance.
The GVT71128D32 operates from a +3.3V power
supply. All inputs and outputs are TTL-compatible. The
device is ideally suited for 486, Pentium
TM
, 680x0, and
PowerPC
TM
systems and for systems that are benefited from a
wide synchronous data bus.
OPTIONS
Timing
4.8ns access/10ns cycle
5ns access/10ns cycle
6ns access/12ns cycle
7ns access/15ns cycle
Packages
100-pin TQFP
Temperature
Commercial
Industrial
MARKING
-4
-5
-6
-7
T
鈥?/div>
鈥?/div>
None
I
(
0擄C
to
70擄C)
(
-40擄C
to
85擄C)
Galvantech, Inc. 3080 Oakmead Village Drive, Santa Clara, CA 95051
Tel (408) 566-0688 Fax (408) 566-0699 Web Site www.galvantech.com
Rev. 11/9 9
Pentium is a trademark of Intel Corporation.
PowerPC is a trademark of IBM Corporation.
Galvantech, Inc. reserves the right to change
products or specifications without notice.
