GTLP8T306 8-Bit LVTTL/GTLP Bus Transceiver
September 1997
Revised December 2000
GTLP8T306
8-Bit LVTTL/GTLP Bus Transceiver
General Description
The GTLP8T306 is an 8-bit bus transceiver that provides
LVTTL to GTLP signal level translation. The device pro-
vides a high speed interface between cards operating at
LVTTL logic levels and a backplane operating at GTLP
logic levels. High speed backplane operation is a direct
result of GTLP鈥檚 reduced output swing (
<
1V), reduced input
threshold levels and output edge rate control. The edge
rate control minimizes bus settling time. GTLP is a Fairchild
Semiconductor derivative of the Gunning Transceiver logic
(GTL) JEDEC standard JESD8-3.
Fairchild鈥檚 GTLP has internal output edge-rate control and
is process, voltage, and temperature (PVT) compensated.
Its function is similar to BTL and GTL but with different out-

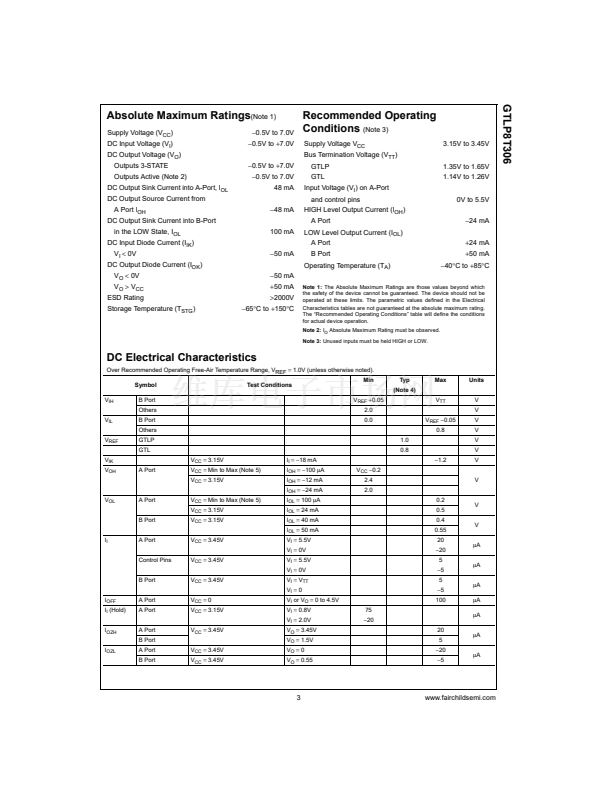

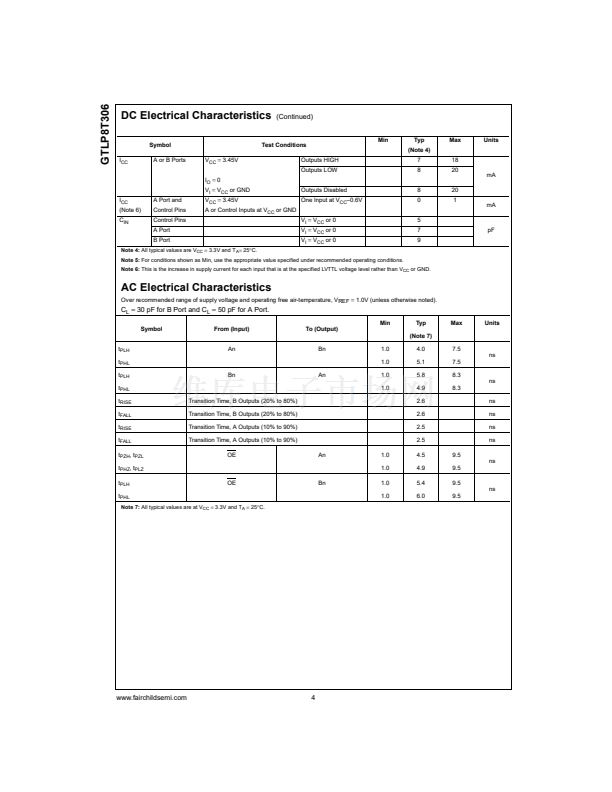

put levels and receiver thresholds. The GTLP output LOW
level is typically less than 0.5V, the output HIGH level is
1.5V and the receiver threshold is 1.0V.
Features
s
Bidirectional interface between GTLP and LVTTL logic
levels
s
Designed with edge rate control circuitry to reduce out-
put noise on the GTLP port
s
V
REF
pin provides external supply reference voltage for
receiver threshold adjustibility
s
Special PVT Compensation circuitry to provide consis-
tent performance over variations of process, supply volt-
age and temperature
s
TTL compatible driver and control inputs
s
Designed using Fairchild advanced CMOS technology
s
Bushold data inputs on A port to eliminate the need for
external pull-up resistors for unused inputs
s
Power up/down and power off high impedance for live
insertion
s
5V over voltage tolerance on LVTTL ports
s
Open drain on GTLP to support wired-or connection
s
Flow through pinout optimizes PCB layout
s
A Port source/sink
鈭?/div>
24mA/
+
24mA
s
B Port sink
+
50mA
Ordering Code:
Order Number
GTLP8T306MTC
Package Number
MTC24
Package Description

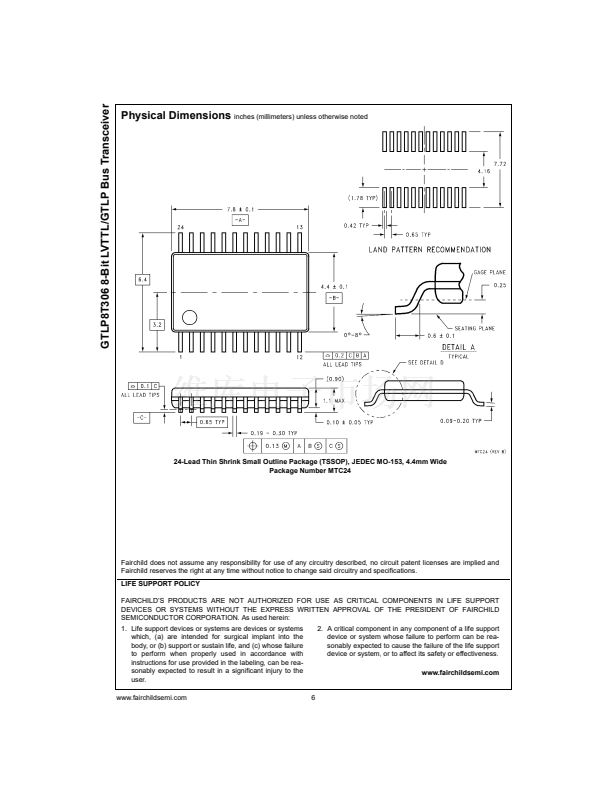

24-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.

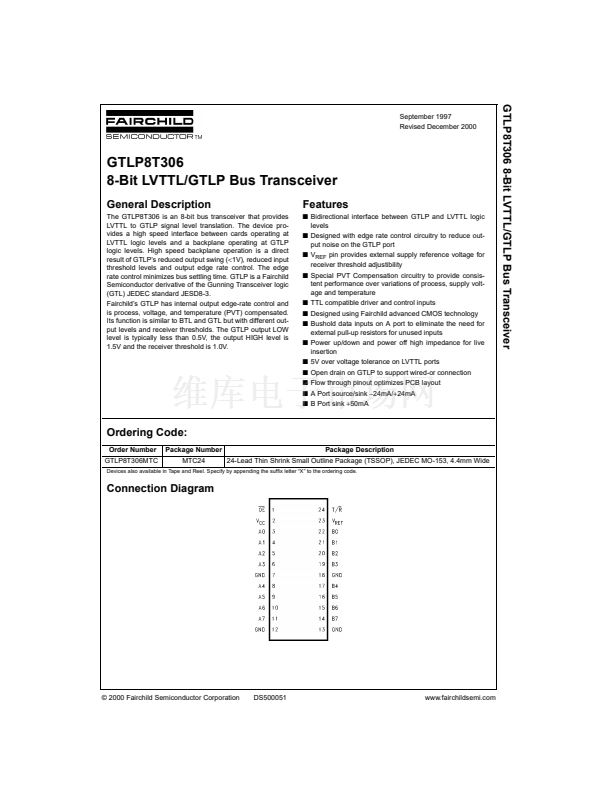

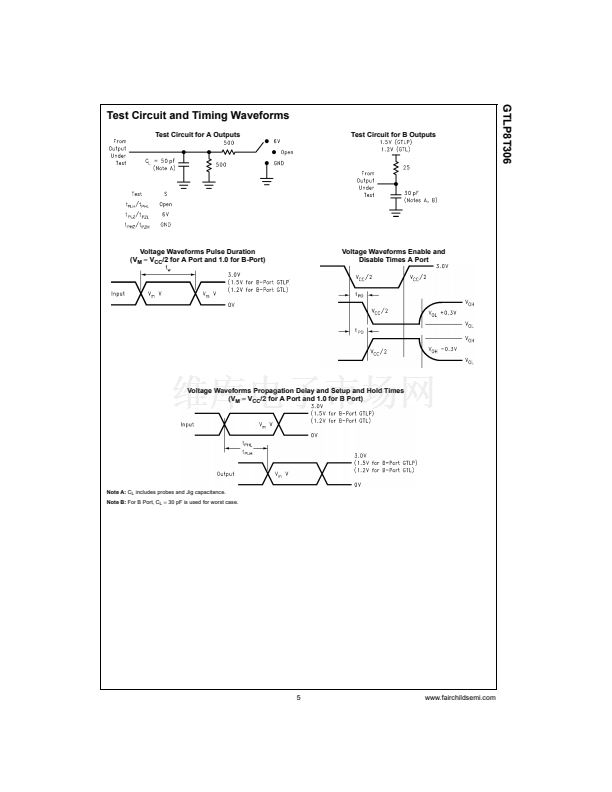

Connection Diagram
