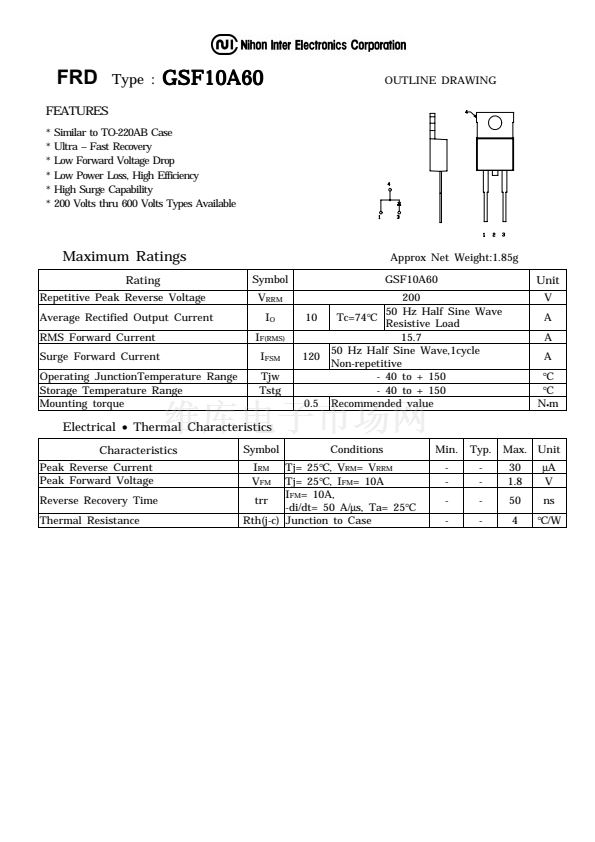

FRD
FEATURES
Type :
GSF10A60

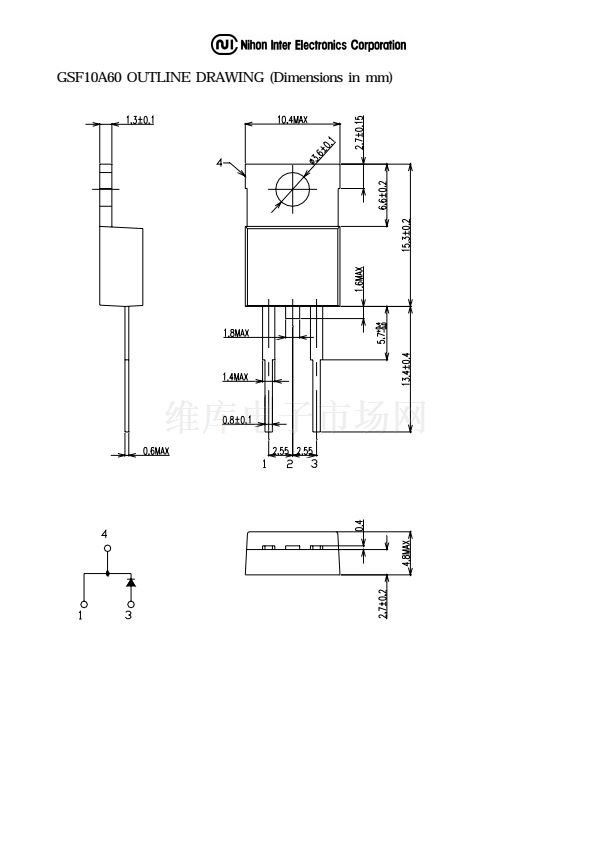

OUTLINE DRAWING
* Similar to TO-220AB Case
* Ultra 鈥?Fast Recovery
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Capability
* 200 Volts thru 600 Volts Types Available
Maximum Ratings
Rating
Repetitive Peak Reverse Voltage
Average Rectified Output Current
RMS Forward Current
Surge Forward Current
Operating JunctionTemperature Range
Storage Temperature Range
Mounting torque
Symbol
V
RRM
I
O
I
F(RMS)
I
FSM
Tjw
Tstg
0.5
120
10
Approx Net Weight:1.85g
GSF10A60
200
50 Hz Half Sine Wave
Tc=74擄C
Resistive Load
15.7
50 Hz Half Sine Wave,1cycle
Non-repetitive
- 40 to + 150
- 40 to + 150
Recommended value
Unit
V
A
A
A
擄C
擄C
N
鈥?/div>
m
Electrical
鈥?/div>
Thermal Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage
Reverse Recovery Time
Thermal Resistance
Symbol
I
RM
V
FM
Conditions
Min.
-
-
-
-
Typ.
-
-
-
-
Max. Unit
30
1.8
50
4
碌A(chǔ)
V
ns
擄C/W
Tj= 25擄C, V
RM
= V
RRM
Tj= 25擄C, I
FM
= 10A
I
FM
= 10A,
trr
-di/dt= 50 A/碌s, Ta= 25擄C
Rth(j-c) Junction to Case
1
2
