FRD
FEATURES
Type :
GSF10A40B

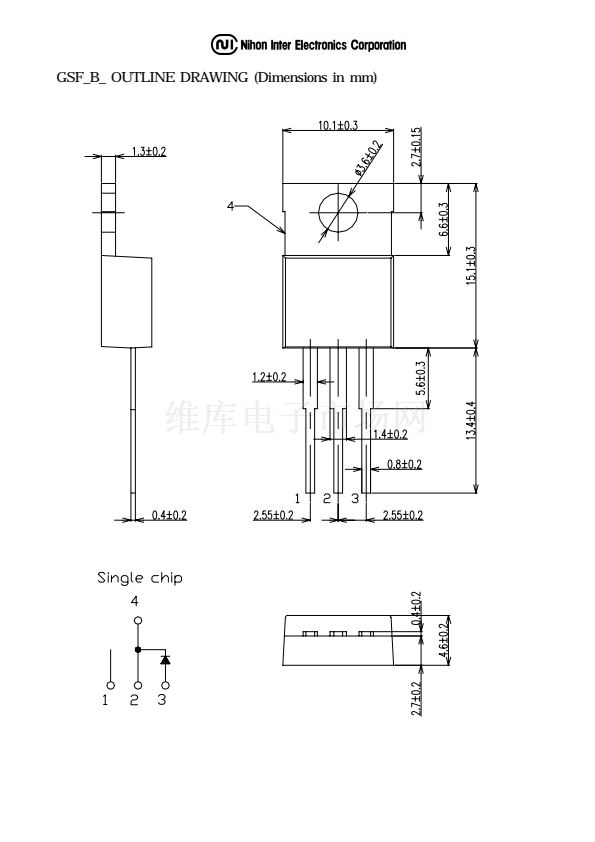

OUTLINE DRAWING
* Similar to TO-220AB Case
* Ultra 鈥?Fast Recovery
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Capability
* 200 Volts thru 600 Volts Types Available
Maximum Ratings
Rating
Repetitive Peak Reverse Voltage
Non-repetitive Peak Reverse Voltage
Average Rectified Output Current
RMS Forward Current
Surge Forward Current
Operating JunctionTemperature Range
Storage Temperature Range
Mounting torque
Symbol
V
RRM
V
RSM
I
O
I
F(RMS)
I
FSM
Tjw
Tstg
0.5
120
10
Approx Net Weight:1.9g
GSF10A40B
400
440
50 Hz Half Sine Wave
Tc=95擄C
Resistive Load
15.7
50 Hz Half Sine Wave,1cycle
Non-repetitive
- 40 to + 150
- 40 to + 150
Recommended value
Unit
V
A
A
A
擄C
擄C
N
鈥?/div>
m
Electrical
鈥?/div>
Thermal Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage
Reverse Recovery Time
Thermal Resistance
Symbol
I
RM
V
FM
Conditions
Min.
-
-
-
-
Typ.
-
-
-
-
Max. Unit
30
1.30
45
4
碌A
V
ns
擄C/W
Tj= 25擄C, V
RM
= V
RRM
Tj= 25擄C, I
FM
= 10A
I
FM
= 10A,
trr
-di/dt= 50 A/碌s, Ta= 25擄C
Rth(j-c) Junction to Case
1
2
3
4
