GS1532

HD-LINX

鈩?/div>

Multi-Rate Serializer

PRELIMINARY DATA SHEET

KEY FEATURES

鈥?SMPTE 292M and SMPTE 259M-C compliant

scrambling and NRZ

鈫?/div>

NRZI encoding (with bypass)

鈥?DVB-ASI sync word insertion and 8b/10b encoding

鈥?adjustable loop bandwidth

鈥?user selectable additional processing features

including:

- CRC, ANC data checksum, and line number

calculation and insertion

- TRS and EDH packet generation and insertion

- illegal code remapping

鈥?internal flywheel for noise immune TRS generation

鈥?20-bit / 10-bit CMOS parallel input data bus

鈥?148.5MHz / 74.25MHz / 27MHz / 13.5MHz parallel digital

input

鈥?automatic standards detection and indication

鈥?1.8V core power supply and 3.3V charge pump power

supply

鈥?3.3V digital I/O supply

鈥?JTAG test interface

鈥?small footprint compatible with GS1560A, GS1561,

GS9060 and GS9062

APPLICATIONS

鈥?/div>

SMPTE 292M Serial Digital Interfaces

SMPTE 259M-C Serial Digital Interfaces

DVB-ASI Serial Digital Interfaces

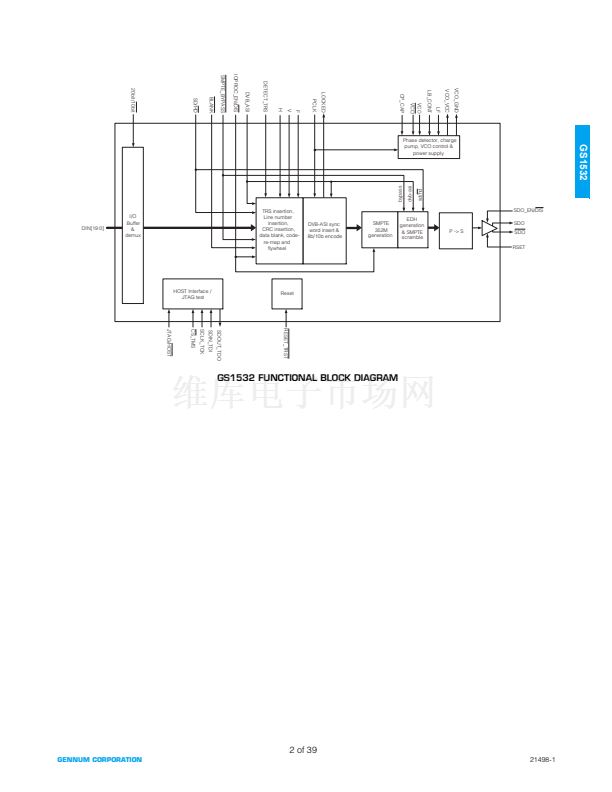

DESCRIPTION

The GS1532 is a multi-standard serializer with an integrated

cable driver. When used in conjunction with the GO1525

Voltage Controlled Oscillator, a transmit solution can be

realized for HD-SDI, SD-SDI and DVB-ASI applications.

In addition to serializing the input, the GS1532 performs

NRZ-to-NRZI encoding and scrambling as per SMPTE

292M/259M-C when operating in SMPTE mode. When

operating in DVB-ASI mode, the device will insert K28.5

sync characters and 8b/10b encode the data prior to

serialization.

Parallel data inputs are provided for 10-bit multiplexed or

20-bit demultiplexed formats at both HD and SD signal

rates. An appropriate parallel clock input signal is also

required.

The integrated cable driver features an output mute on loss

of parallel clock, high impedance mode, adjustable signal

swing, and automatic dual slew rate selection depending

on HD/SD operational requirements.

The GS1532 also includes a range of data processing

functions including automatic standards detection and EDH

support. The device can also insert TRS signals, calculate

and insert line numbers and CRC鈥檚, re-map illegal code

words and insert SMPTE 352M payload identifier packets.

All processing features are optional and may be

enabled/disabled via external control pin(s) and/or host

interface programming.

GS1532

Revision Date: July 2003

GENNUM CORPORATION P.O. Box 489, Stn. A, Burlington, Ontario, Canada L7R 3Y3

Tel. +1 (905) 632-2996 Fax. +1 (905) 632-5946 E-mail: info@gennum.com

www.gennum.com

Document No. 21498-1
