GP400DDM12
GP400DDM12
Dual Switch IGBT Module
Advance Information
DS5503-1.0 October 2001
FEATURES
s
s
s
s
High Thermal Cycling Capability
400A Per Switch
Non Punch Through Silicon
Isolated MMC Base with AlN Substrates

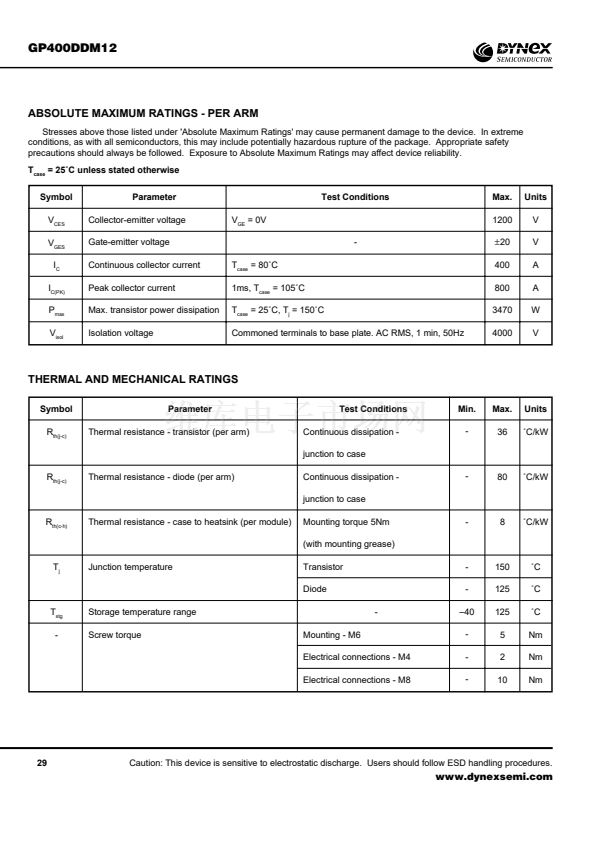

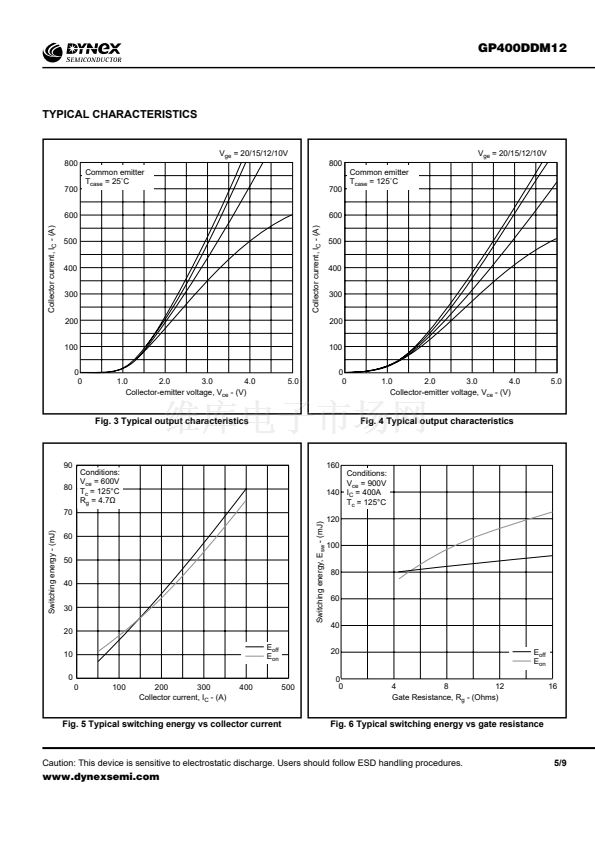

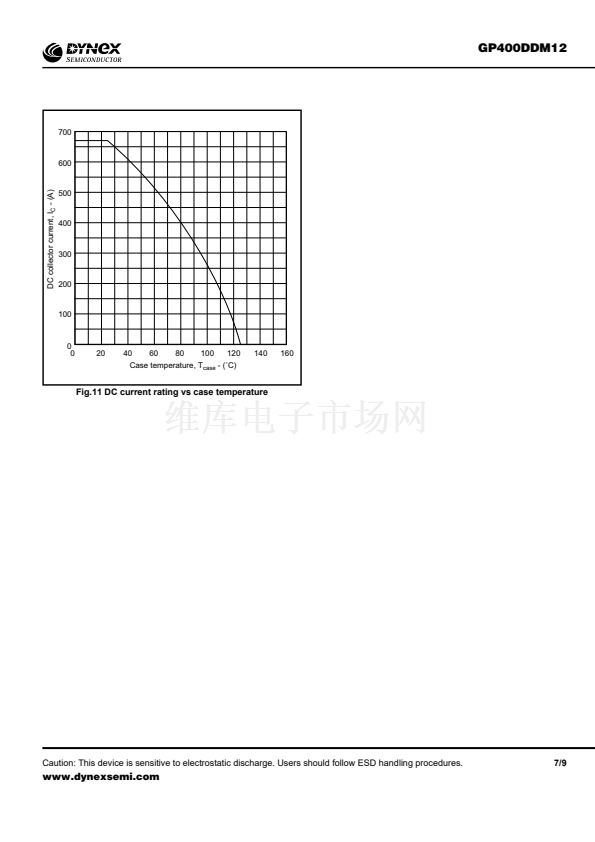

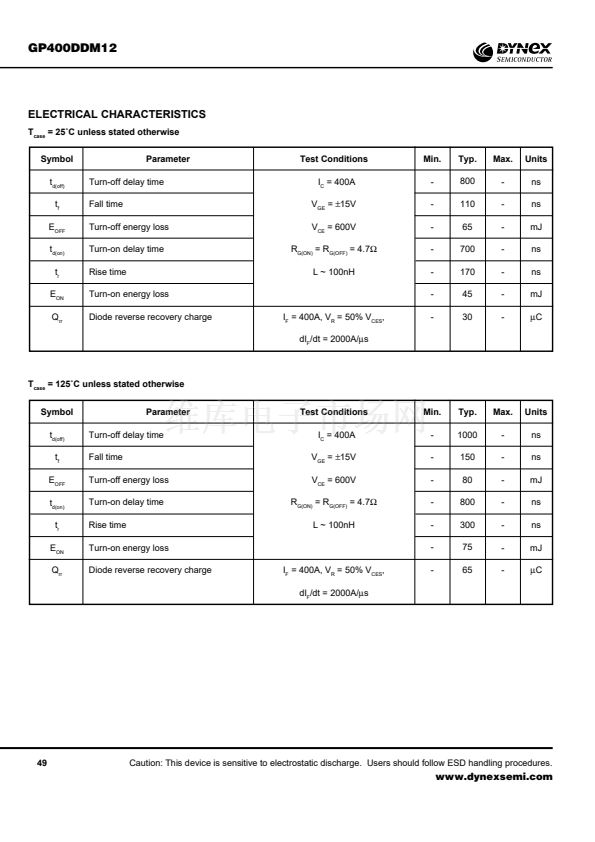

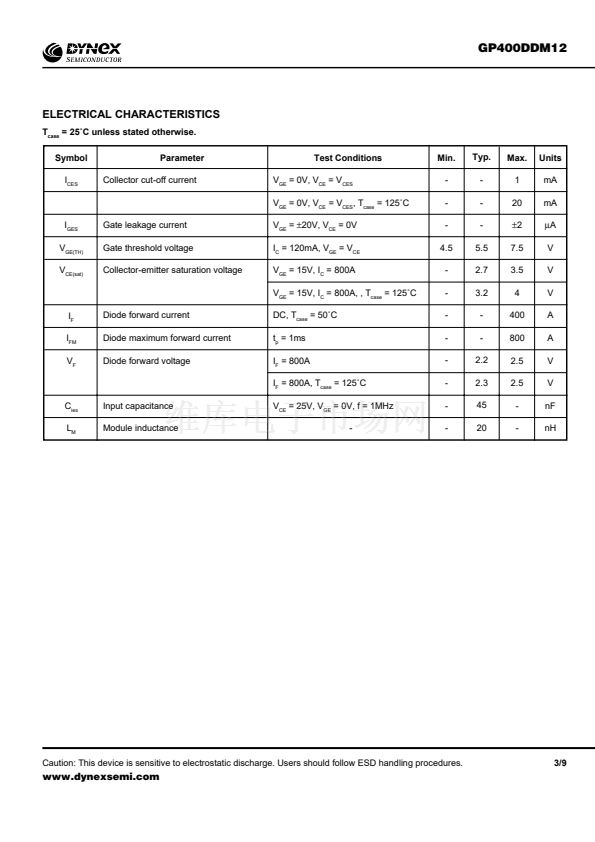

KEY PARAMETERS
V
CES
(typ)
V
CE(sat)
(max)
I
C
(max)
I
C(PK)
1200V
2.7V
400A
800A
APPLICATIONS
s
s
s
s
High Reliability Inverters
Motor Controllers
Traction Drives
Resonant Converters
5(E
1
)
1(E1)
2(C2)
12(C
2
)
6(G
1
)
11(G
2
)
7(C
1
)
10(E
2
)
3(C1)
4(E2)
The Powerline range of high power modules includes half
bridge, dual, chopper and single switch configurations covering
voltages from 600V to 3300V and currents up to 2400A.
The GP400DDM12 is a dual switch 1200V, n channel
enhancement mode, insulated gate bipolar transistor (IGBT)
module. The IGBT has a wide reverse bias safe operating area
(RBSOA) ensuring reliability in demanding applications. This
device is optimised for traction drives and other applications
requiring high thermal cycling capability or very high reliability.
The module incorporates an electrically isolated base plate
and low inductance construction enabling circuit designers to
optimise circuit layouts and utilise earthed heat sinks for safety.
Fig. 1 Dual switch circuit diagram
5
6
3
7
8
1
ORDERING INFORMATION
Order As:
GP400DDM12
Note: When ordering, please use the whole part number.
10
12
9
4
11
2
Outline type code:
D
(See package details for further information)
Fig. 2 Electrical connections - (not to scale)
Caution: This device is sensitive to electrostatic discharge. Users should follow ESD handling procedures.
1/9
