GP1A073LCS Datasheet

  • GP1A073LCS

  • Gap : 5mm Slit : 0.5mm OPIC Output, Snap-in type Transmissiv...

  • 10頁

  • SHARP

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

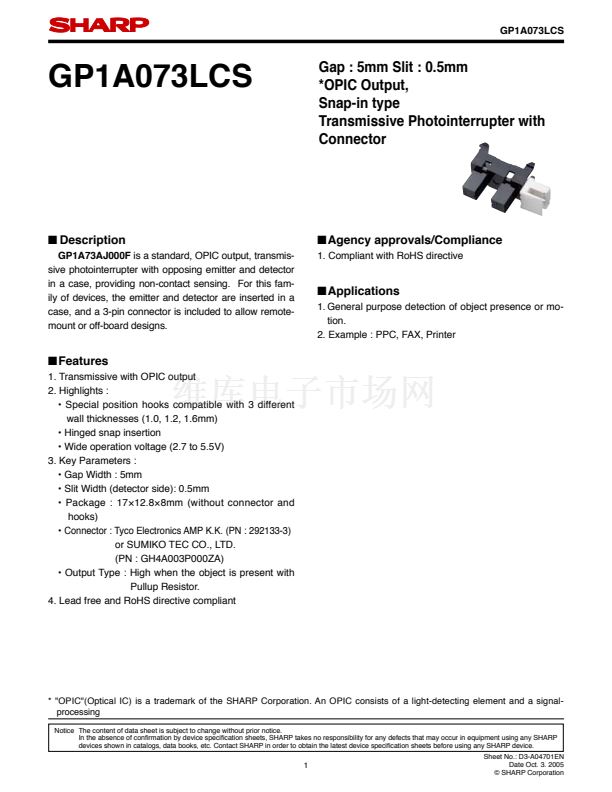

GP1A073LCS
GP1A073LCS
Gap : 5mm Slit : 0.5mm
*OPIC Output,
Snap-in type
Transmissive Photointerrupter with
Connector
鈻?/div>
Description
GP1A73AJ000F
is a standard, OPIC output, transmis-
sive photointerrupter with opposing emitter and detector
in a case, providing non-contact sensing. For this fam-
ily of devices, the emitter and detector are inserted in a
case, and a 3-pin connector is included to allow remote-
mount or off-board designs.
鈻?/div>
Agency approvals/Compliance
1. Compliant with RoHS directive
鈻?/div>
Applications
1. General purpose detection of object presence or mo-
tion.
2. Example : PPC, FAX, Printer
鈻?/div>
Features
1. Transmissive with OPIC output
2. Highlights :
鈥?Special position hooks compatible with 3 different
wall thicknesses (1.0, 1.2, 1.6mm)
鈥?Hinged snap insertion
鈥?Wide operation voltage (2.7 to 5.5V)
3. Key Parameters :
鈥?Gap Width : 5mm
鈥?Slit Width (detector side): 0.5mm
鈥?Package : 17脳12.8脳8mm (without connector and
hooks)
鈥?Connector : Tyco Electronics AMP K.K. (PN : 292133-3)
or SUMIKO TEC CO., LTD.
(PN : GH4A003P000ZA)
鈥?Output Type : High when the object is present with
Pullup Resistor.
4. Lead free and RoHS directive compliant
* "OPIC"(Optical IC) is a trademark of the SHARP Corporation. An OPIC consists of a light-detecting element and a signal-
processing
Notice The content of data sheet is subject to change without prior notice.
In the absence of con鏗乺mation by device speci鏗乧ation sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device speci鏗乧ation sheets before using any SHARP device.
1
Sheet No.: D3-A04701EN
Date Oct. 3. 2005
漏 SHARP Corporation

GP1A073LCS 產品屬性

  • GP1A073LCS/HCS

  • Internal Chip Change 04/May/2007

  • 100

  • 傳感器，轉換器

  • 光學 - 光斷續器 - 槽型 - 邏輯輸出

  • OPIC™

  • 0.197"（5mm）

  • 可傳導的

  • NPN - 開路集電極

  • 卡入式

  • 16.5mA

  • 2.7 V ~ 5.5 V

  • -

  • 模塊，連接器

  • 425-1771-5GP1A073LCSH0
