GMM27333230ANTG-8 Datasheet

  • GMM27333230ANTG-8

  • x72 SDRAM Module

  • 14頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

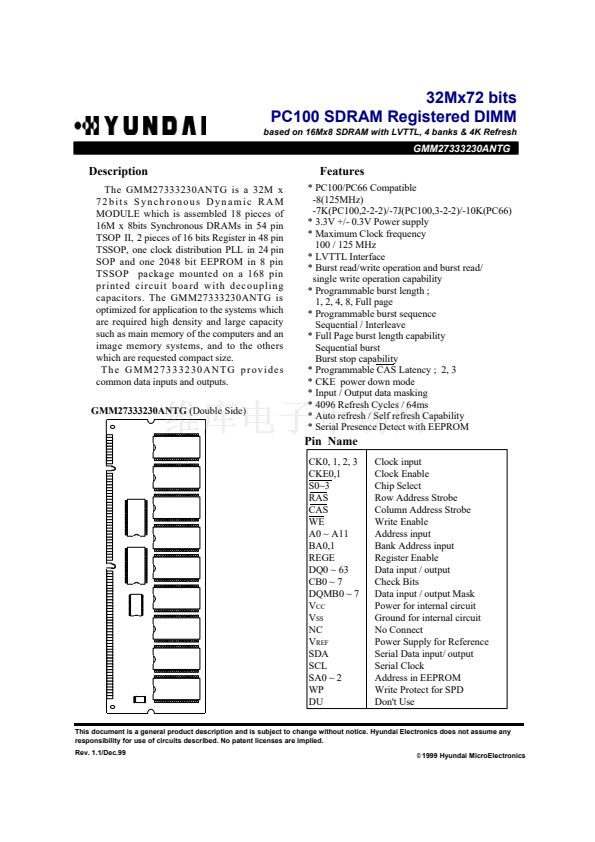

32Mx72 bits
PC100 SDRAM Registered DIMM
based on 16Mx8 SDRAM with LVTTL, 4 banks & 4K Refresh

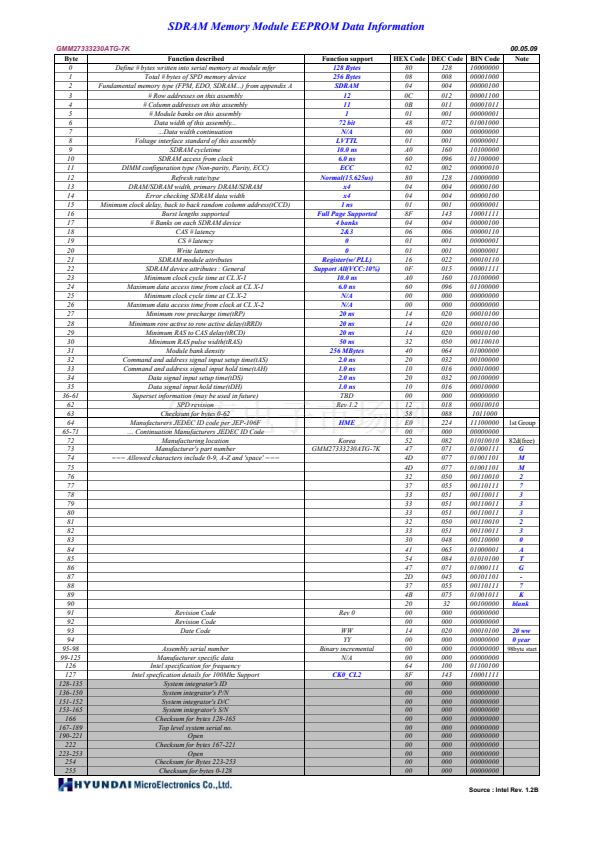

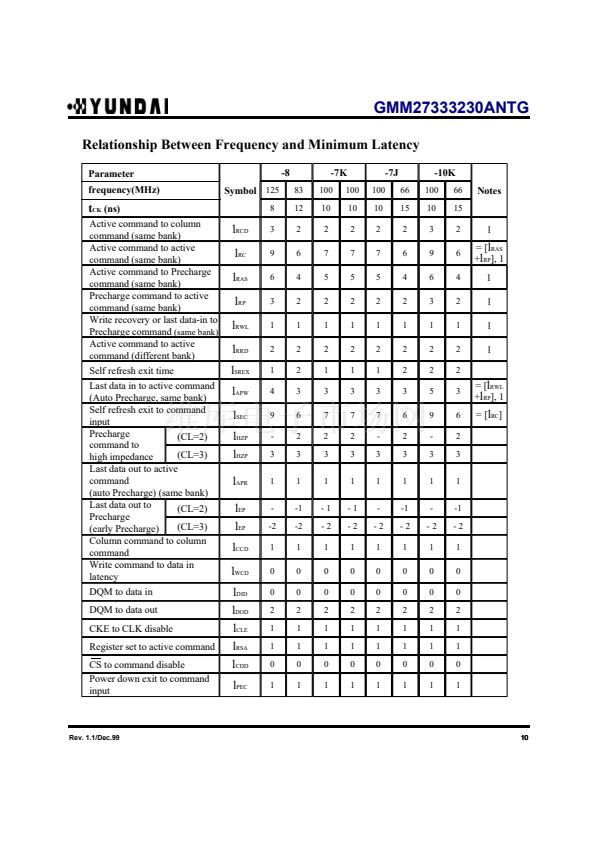

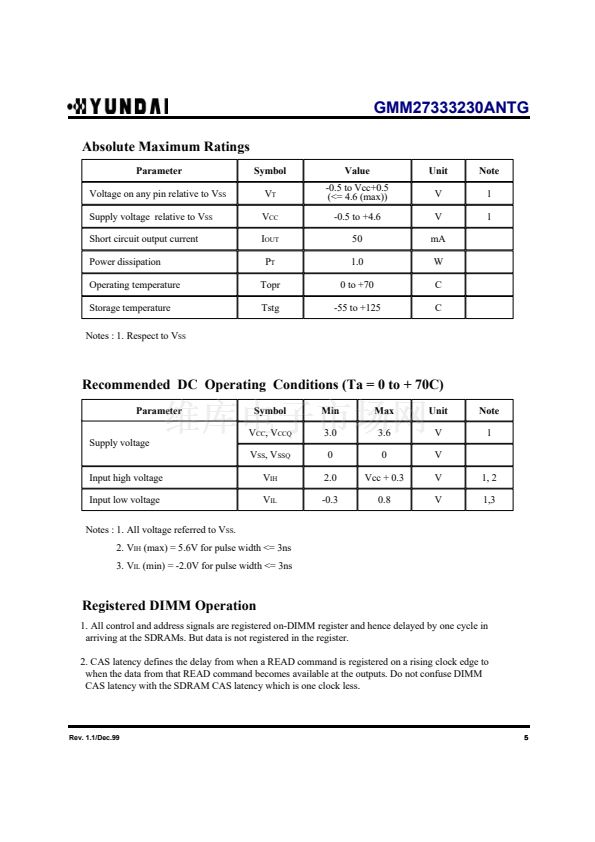

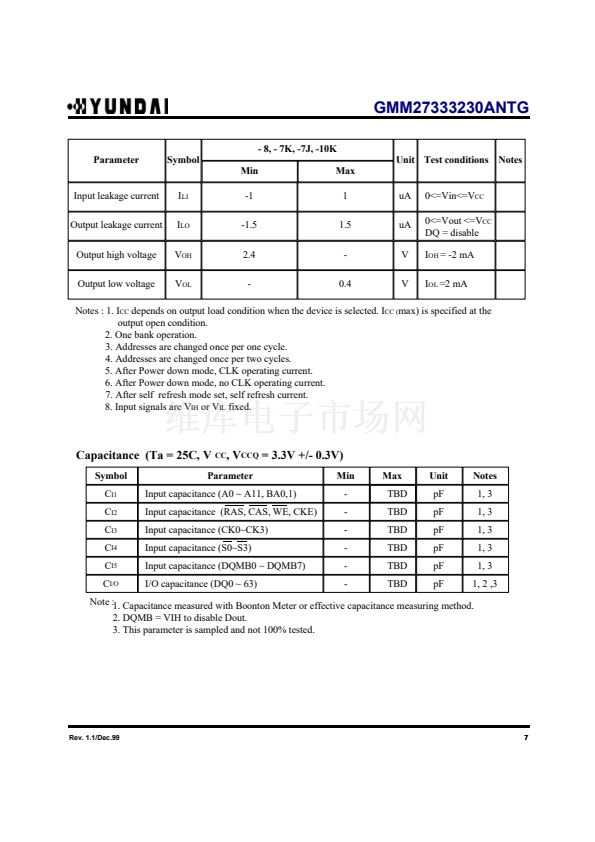

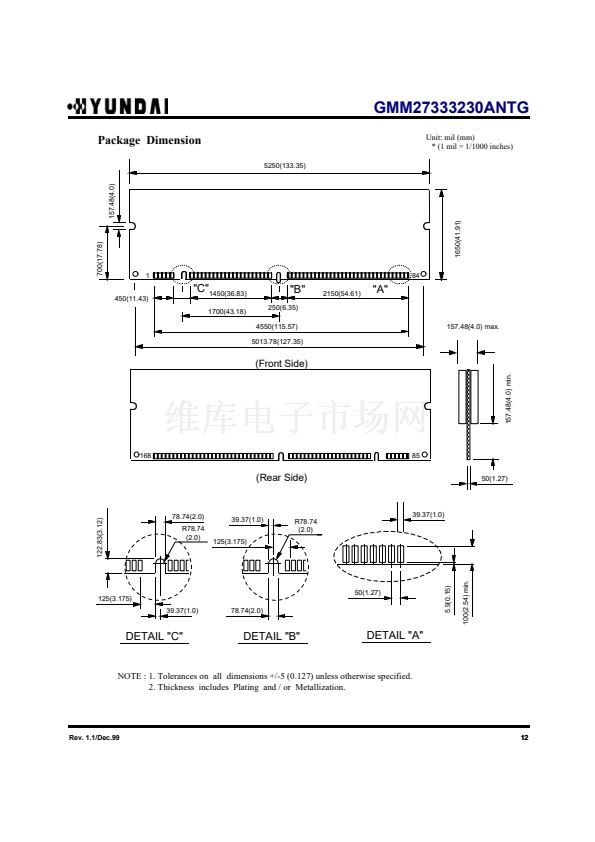

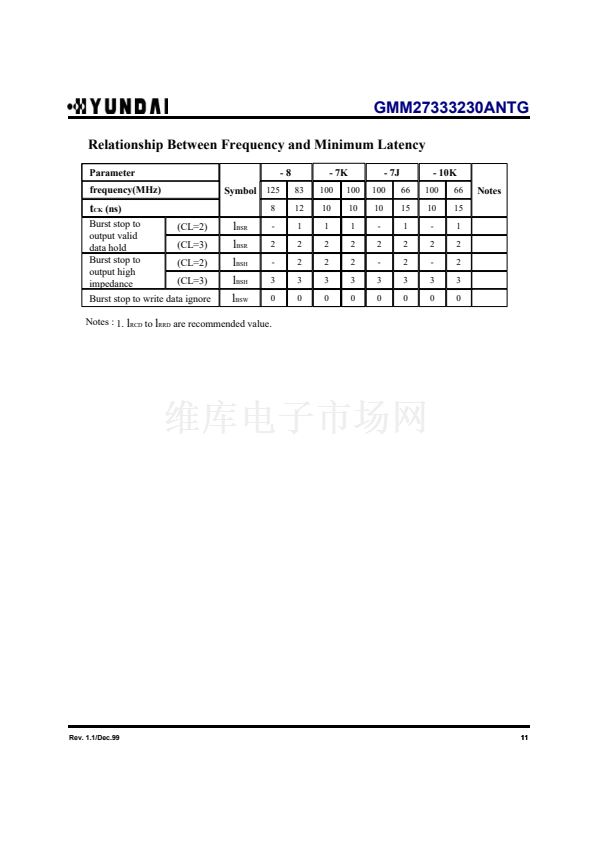

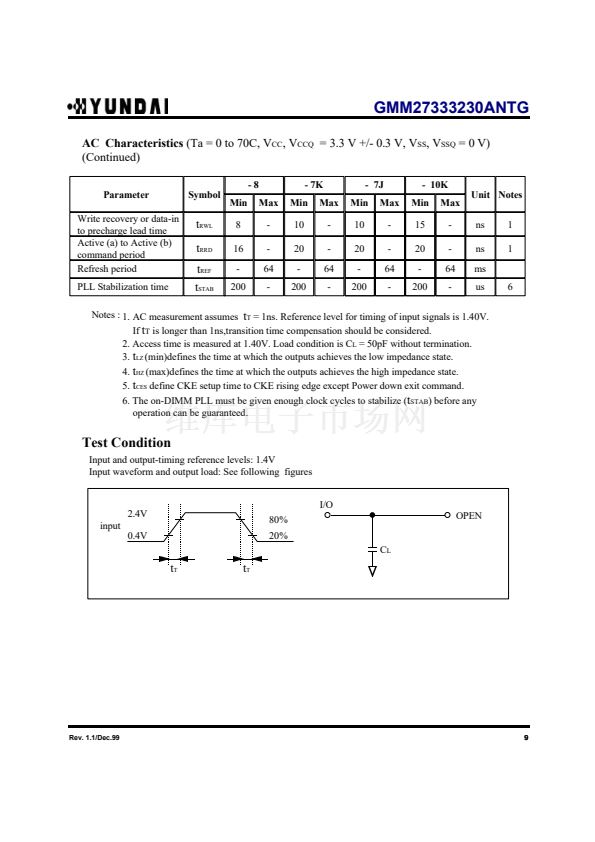

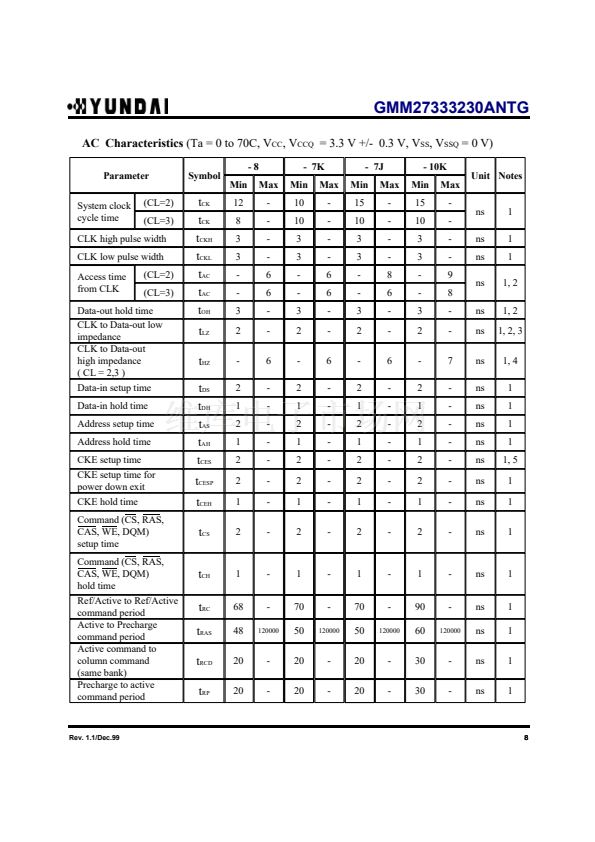

GMM27333230ANTG
Description
The GMM27333230ANTG is a 32M x
72bits Synchronous Dynamic RAM
MODULE which is assembled 18 pieces of
16M x 8bits Synchronous DRAMs in 54 pin
TSOP II, 2 pieces of 16 bits Register in 48 pin
TSSOP, one clock distribution PLL in 24 pin
SOP and one 2048 bit EEPROM in 8 pin
TSSOP package mounted on a 168 pin
printed circuit board with decoupling
capacitors. The GMM27333230ANTG is
optimized for application to the systems which
are required high density and large capacity
such as main memory of the computers and an
image memory systems, and to the others
which are requested compact size.
The GMM27333230ANTG provides
common data inputs and outputs.

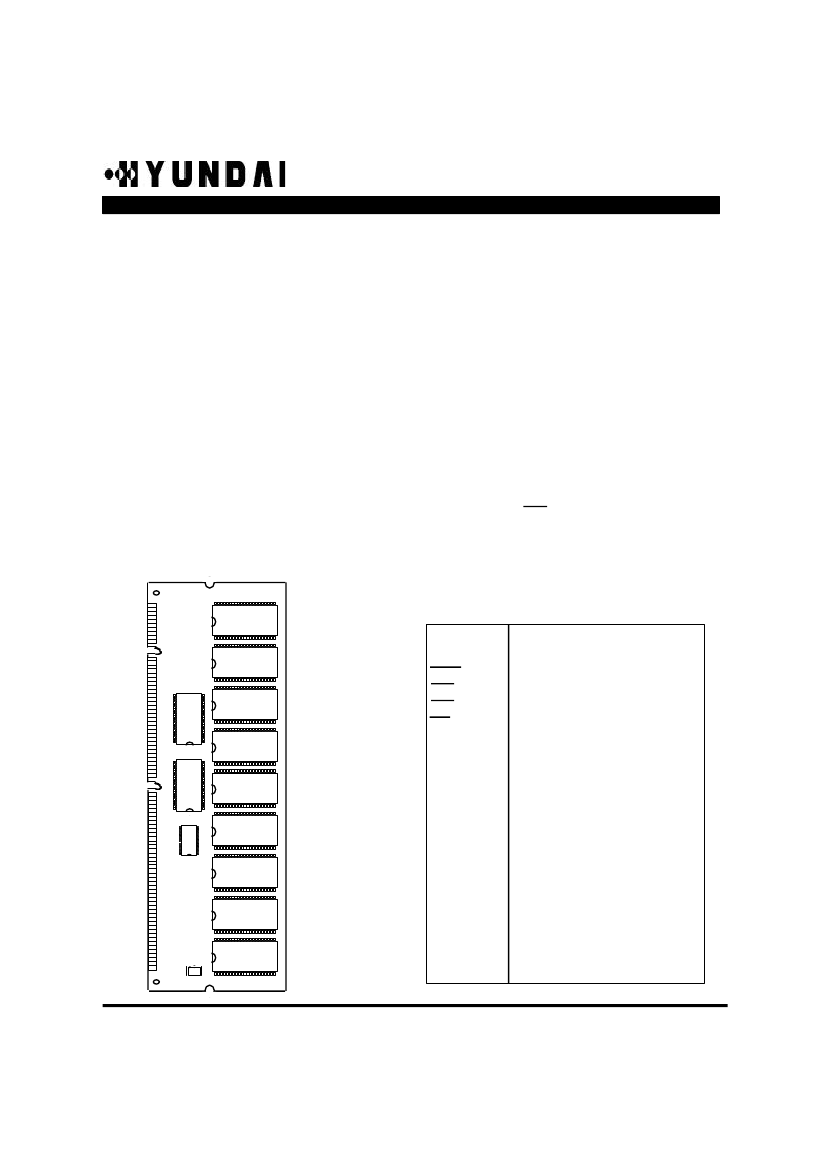

GMM27333230ANTG
(Double Side)
Features
* PC100/PC66 Compatible
-8(125MHz)
-7K(PC100,2-2-2)/-7J(PC100,3-2-2)/-10K(PC66)
* 3.3V +/- 0.3V Power supply
* Maximum Clock frequency
100 / 125 MHz
* LVTTL Interface
* Burst read/write operation and burst read/
single write operation capability
* Programmable burst length ;
1, 2, 4, 8, Full page
* Programmable burst sequence
Sequential / Interleave
* Full Page burst length capability
Sequential burst
Burst stop capability
* Programmable CAS Latency ; 2, 3
* CKE power down mode
* Input / Output data masking
* 4096 Refresh Cycles / 64ms
* Auto refresh / Self refresh Capability
* Serial Presence Detect with EEPROM

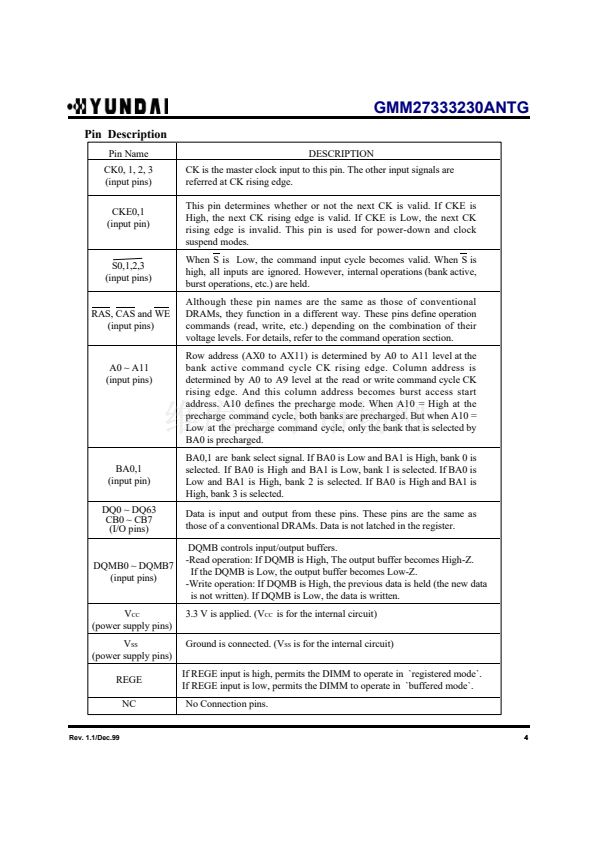

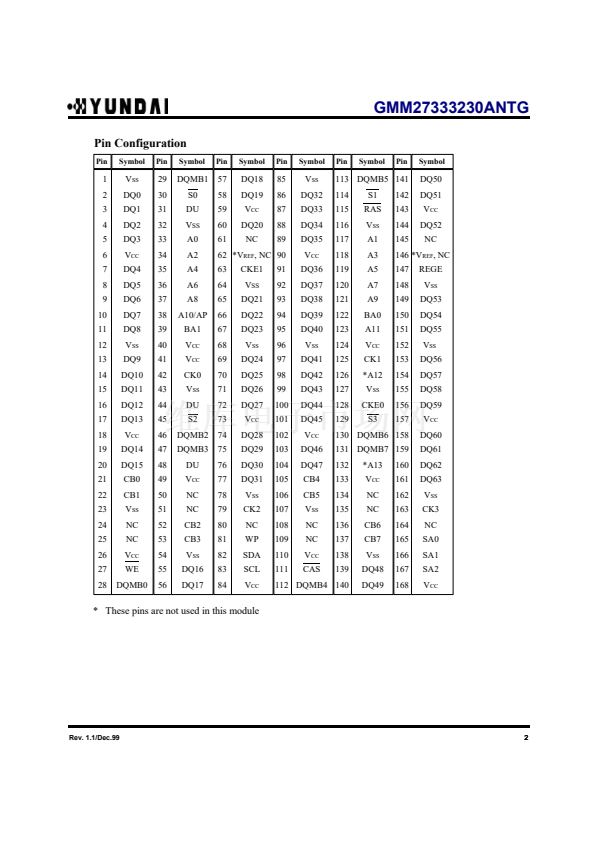

Pin Name
CK0, 1, 2, 3
CKE0,1
S0~3
RAS
CAS
WE
A0 ~ A11
BA0,1
REGE
DQ0 ~ 63
CB0 ~ 7
DQMB0 ~ 7
V
CC
V
SS
NC
V
REF
SDA
SCL
SA0 ~ 2
WP
DU
Clock input
Clock Enable
Chip Select
Row Address Strobe
Column Address Strobe
Write Enable
Address input
Bank Address input
Register Enable
Data input / output
Check Bits
Data input / output Mask
Power for internal circuit
Ground for internal circuit
No Connect
Power Supply for Reference
Serial Data input/ output
Serial Clock
Address in EEPROM
Write Protect for SPD
Don't Use
This document is a general product description and is subject to change without notice. Hyundai Electronics does not assume any
responsibility for use of circuits described. No patent licenses are implied.
Rev. 1.1/Dec.99
漏 1999 Hyundai MicroElectronics
