ISSUED DATE :2005/10/11
REVISED DATE :
GM6201
Description
C M O S P o s i t i v e Vo l t a g e R e g u l a t o r
The GM6201 series are highly precise, low power consumption, positive voltage regulators manufactured
using CMOS and laser trimming technologies.
The series provides large currents with a significantly small dropout voltage.
The GM6201 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error
amplifier. Output voltage is selectable in 0.1V steps between 1.3 ~ 6.0v.
Features
&
Maximum Output Current: 250mA (Typ.)
&Output Voltage Range: 1.3V ~ 6V (selectable in 0.1V steps)
&Low Power Consumption: Typ. 2.0uA
&Maximum Operating Voltage: 10V
&Dropout Voltgae: 0.16V @I
OUT
=100mA
&Highly Accurate: Output voltage 鹵 2%
&Capacitors can be Tantalum or Ceramic
Applications
&
Battery Powered Equipment
Package Dimensions
&Mobile Phones and Cordless Phones
&Cameras and Video Recorders
&Portable Games and AV Equipment
&Reference Voltage
SOT-89
REF.
A
B
C
D
E
F
Millimeter
Min.
Max.
4.4
4.6
4.05
4.25
1.50
1.70
1.30
1.50
2.40
2.60
0.89
1.20
REF.
G
H
I
J
K
L
M
Millimeter
Min.
Max.
3.00 REF.
1.50 REF.
0.40
0.52
1.40
1.60
0.35
0.41
5 q TYP.
0.70 REF.
Typical Application Circuit
Block Diagram
GM6201

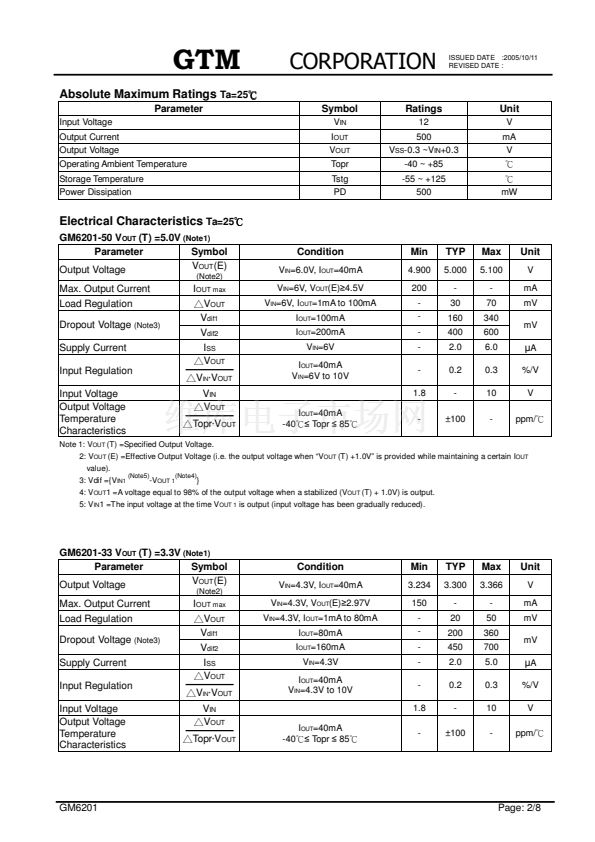

Page: 1/8
