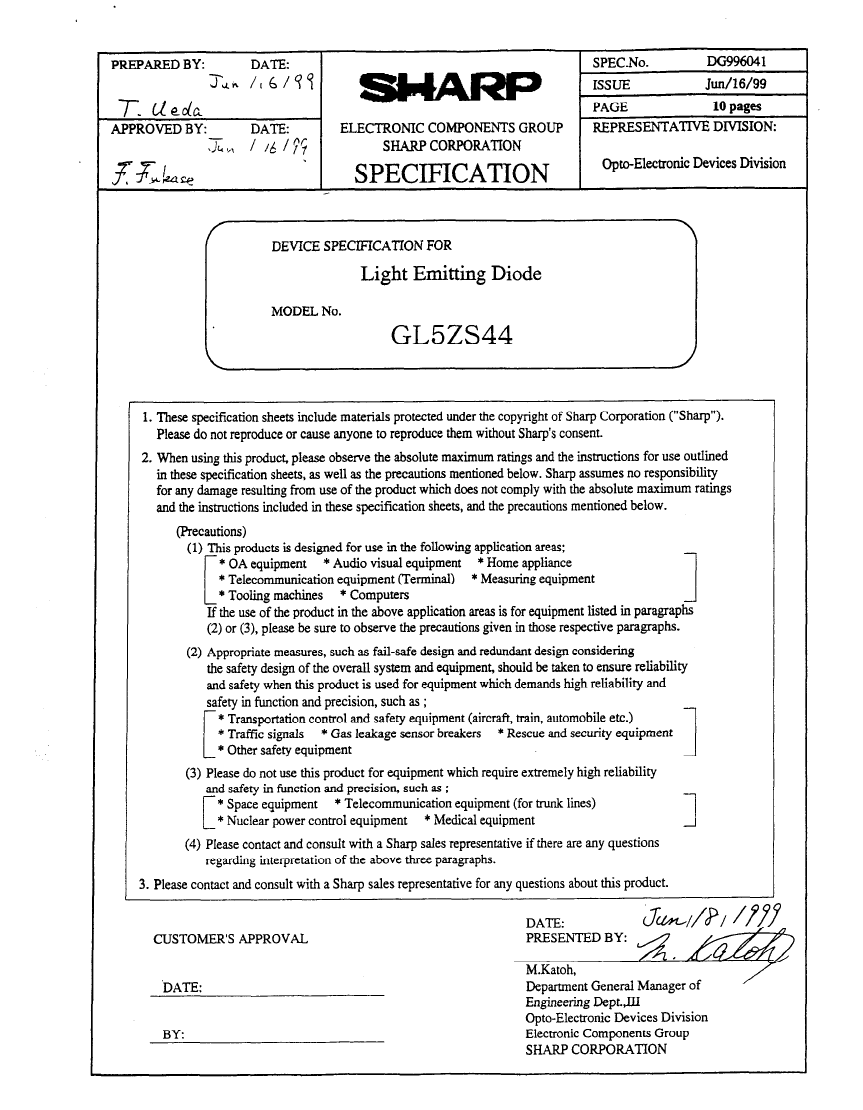

ELECTRONIC
COMPONENTS GROUP
Opto-Electronic
Devices Division
x ',, / /d / $5
.
I
777
.wrza*
SHARPCORPORATION
SPECIFICATION
FOR
f
DEVICE SPECIFICATION
Emitting Diode
MODEL No.
GL5ZS44
1. These specification sheets include materials protected under the copyright of Sharp Corporation (鈥淪harp鈥?.
Please do not reproduce or cause anyone to reproduce them without Sharp鈥檚 consent.
2. When using this product, please observe the absolute maximum ratings and the instructions for use outlined
in these specification sheets, as well as the precautions mentioned below. Sharp assumes no responsibility
for any damage resulting from use of the product which does not comply with the absolute maximum ratings
and the instructions included in these specification sheets, and the precautions mentioned below.
(Precautions)
(1) This products is designed for use in the following application areas:
* OA equipment * Audio visual equipment * Home appliance
* Telecommunication equipment (鈥楾erminal) * Measuring equipment
* Tooling machines * Computers
L
If the use of the product in the above application areas is for equipment listed in paragraphs
(2) or (3). please be sure to observe the precautions given in those respective paragraphs.
(2) Appropriate measures, such as fail-safe design and redundant design considering
the safety design of the overall system and equipment, should be taken to ensure reliability
and safety when this product is used for equipment which demands high reliability and
safety in function and precision, such as ;
* Transportation control and safety equipment (aircraft, train, automobile etc.)
* Traffic signals
* Gas leakage sensor breakers
* Rescue and security equipment
[ * Other safety equipment
I
(3) Please do not use this product for equipment which require extremely high reliability
and safety in function and precision, such as ;
* Space equipment * Telecommunication equipment (for trunk lines)
* Medical equipment
C * Nuclear power control equipment
(4) PIease contact and consult with a Sharp sales representative if there are any questions
regarding interpretation of the above three paragraphs.
3. Please contact and consult with a Sharp sales representative for any questions about this product.
DATE:
PRESENTED BY:
M.Katoh,
Department General Manager of
Engineering DeptJII
-
Opto-Electronic Devices Division
Electronic Components Group
SHARP CORPORATION
I
CUSTOMER鈥橲
APPROVAL
鈥楧ATE:
BY:
