GF20NB60S Datasheet

IC型號：
GF20NB60S
PDF描述：
N-CHANNEL 13A - 600V TO-220FP PowerMESH TM IGBT
文件大?。?/label>
299.43KB
PDF頁數：
11頁
芯片廠家：
STMICROELECTRONICS

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

STGF20NB60S

N-CHANNEL 13A - 600V TO-220FP

PowerMESH鈩?IGBT

Table 1: General Features

TYPE

STGF20NB60S

CES

600 V

CE(sat)

(Max)

@25擄C

< 1.7 V

@100擄C

13 A

Figure 1: Package

LOW ON-VOLTAGE DROP (V

cesat

)

HIGHT CURRENT CAPABILITY

OFF LOSSES INCLUDE TAIL CURRENT

HIGH INPUT IMPEDANCE (VOLTAGE

DRIVEN)

DESCRIPTION

Using the latest high voltage technology based on

a patented strip layout, STMicroelectronics has

designed an advanced family of IGBTs, the Pow-

erMESH

鈩?/div>

IGBTs, with outstanding performances.

The suffix 鈥淪鈥?identifies a family optimized to

achieve minimum on-voltage drop for low frequen-

cy to applications (<1kHz).

TO-220FP

Figure 2: Internal Schematic Diagram

APPLICATIONS

LIGHT DIMMER

STATIC RELAYS

MOTOR CONTROL

Table 2: Order Code

PART NUMBER

STGF20NB60S

MARKING

GF20NB60S

PACKAGE

TO-220FP

PACKAGING

TUBE

Rev. 3

August 2005

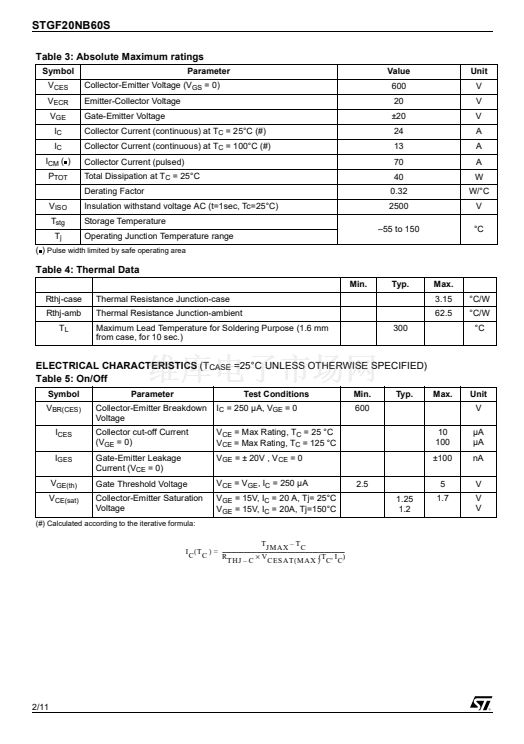

1/11
