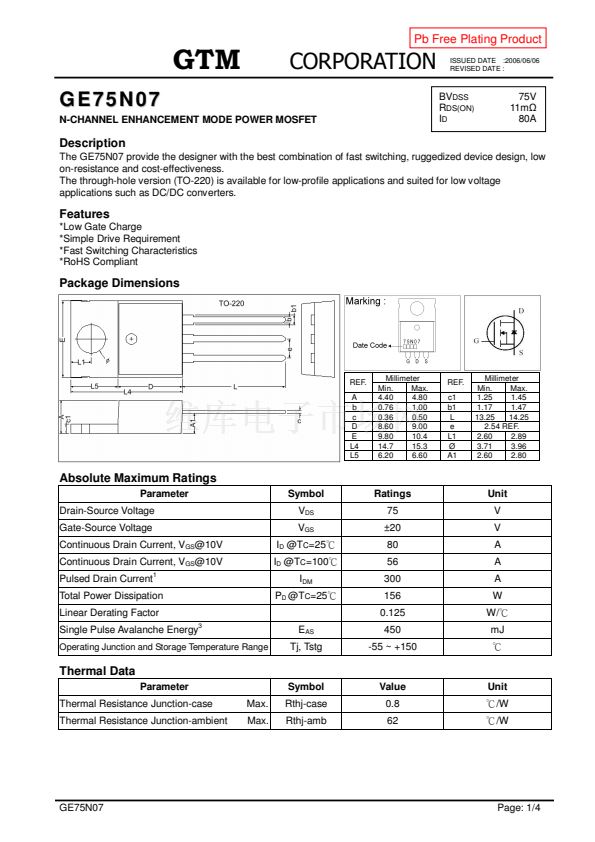

Pb Free Plating Product
ISSUED DATE :2006/06/06
REVISED DATE :
GE75N07
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
BV
DSS
R
DS(ON)
I
D
75V
11m
80A
The GE75N07 provide the designer with the best combination of fast switching, ruggedized device design, low
on-resistance and cost-effectiveness.
The through-hole version (TO-220) is available for low-profile applications and suited for low voltage
applications such as DC/DC converters.
*Low Gate Charge
*Simple Drive Requirement
*Fast Switching Characteristics
*RoHS Compliant
Description
Features
Package Dimensions
REF.
A
b
c
D
E
L4
L5
Millimeter
Min.
Max.
4.40
4.80
0.76
1.00
0.36
0.50
8.60
9.00
9.80
10.4
14.7
15.3
6.20
6.60
REF.
c1
b1
L
e
L1
脴
A1
Millimeter
Min.
Max.
1.25
1.45
1.17
1.47
13.25
14.25
2.54 REF.
2.60
2.89
3.71
3.96
2.60
2.80
Absolute Maximum Ratings
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current, V
GS
@10V
Continuous Drain Current, V
GS
@10V
Pulsed Drain Current
1
Total Power Dissipation
Linear Derating Factor
Single Pulse Avalanche Energy
3
Operating Junction and Storage Temperature Range
Symbol
V
DS
V
GS
I
D
@T
C
=25 :
I
D
@T
C
=100 :
I
DM
P
D
@T
C
=25 :
E
AS
Tj, Tstg
Ratings
75
鹵20
80
56
300
156
0.125
450
-55 ~ +150
Unit
V
V
A
A
A
W
W/ :
mJ
:
Thermal Data
Parameter
Thermal Resistance Junction-case
Thermal Resistance Junction-ambient
Max.
Max.
Symbol
Rthj-case
Rthj-amb
Value
0.8
62
Unit
:
/W
: /W
GE75N07
Page: 1/4
