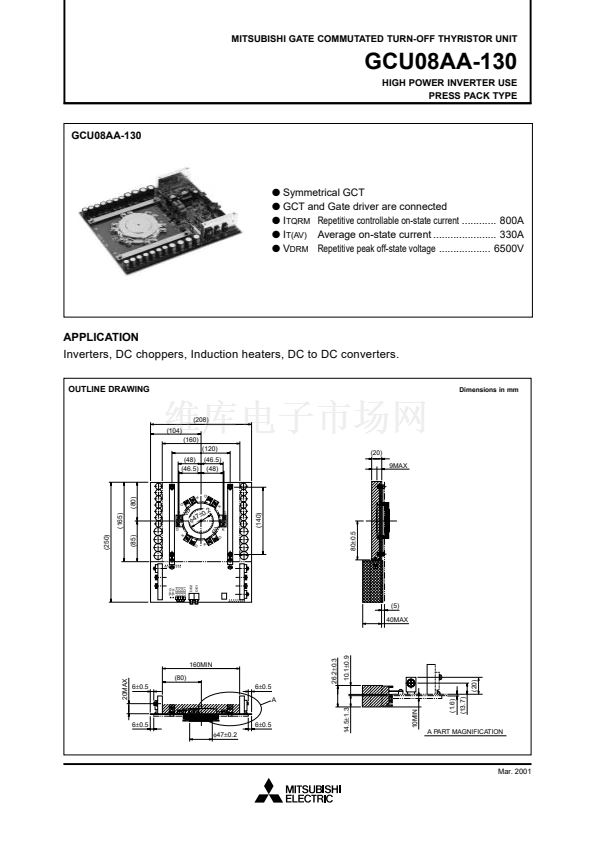

MITSUBISHI GATE COMMUTATED TURN-OFF THYRISTOR UNIT

GCU08AA-130

HIGH POWER INVERTER USE

PRESS PACK TYPE

GCU08AA-130

q

Symmetrical GCT

q

GCT and Gate driver are connected

q

I

TQRM

Repetitive controllable on-state current ............ 800A

q

I

T(AV)

Average on-state current ...................... 330A

q

V

DRM

Repetitive peak off-state voltage .................. 6500V

APPLICATION

Inverters, DC choppers, Induction heaters, DC to DC converters.

OUTLINE DRAWING

Dimensions in mm

(208)

(104)

(160)

(120)

(48) (46.5)

(46.5) (48)

(20)

9MAX

(80)

G

G

K

(165)

蠁

(85)

G

K

DE2

TPG

TPX

LED4

LED3

LED2

LED1

DE1

80鹵0.5

K

G

(250)

(140)

0.2

7

鹵

4

K

160MIN

20MAX

6鹵0.5

6鹵0.5

(13.7)

(1.6)

A

14.5鹵1.3

10MIN

6鹵0.5

蠁47鹵0.2

6鹵0.5

A PART MAGNIFICATION

(20)

(80)

26.2鹵0.3

10.1鹵0.9

K

G

G

K

(5)

40MAX

Mar. 2001
