FRD
Type :
GCF06A60

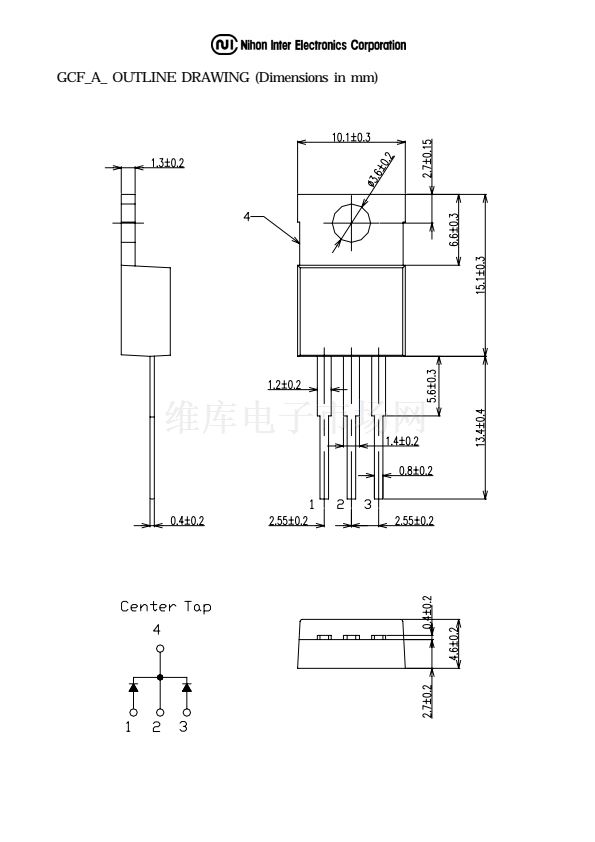

OUTLINE DRAWING
FEATURES
* Similar to TO220AB Case
* Dual Diodes 鈥?Cathode Common
* Ultra 鈥?Fast Recovery
* Low Forward Voltage Drop
* High Surge Capability
* 200 Volts thru 600 Volts Types Available
Maximum Ratings
Rating
Repetitive Peak Reverse Voltage
Average Rectified Output Current
RMS Forward Current
Surge Forward Current
Operating JunctionTemperature Range
Storage Temperature Range
Mounting torque
Symbol
V
RRM
I
O
I
F(RMS)
I
FSM
Tjw
Tstg
0.5
60
6
Approx Net Weight:1.9g
GCF06A60
600
50 Hz,Full Sine Wave
Tc=110擄C
Resistive Load
6.6
50 Hz Full Sine Wave,1cycle
Non-repetitive
- 40 to + 150
- 40 to + 150
Recommended value
Unit
V
A
A
A
擄C
擄C
N
鈥?/div>
m
Electrical
鈥?/div>
Thermal Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage
Reverse Recovery Time
Thermal Resistance
Symbol
I
RM
V
FM
Conditions
Min.
-
-
-
-
Typ.
-
-
-
-
Max. Unit
20
1.7
35
4
碌A
V
ns
擄C/W
Tj=25擄C,V
RM
=V
RRM
per Arm
Tj=25擄C, I
FM
=3A per Arm
I
FM
= 3 A,
trr
-di/dt= 50 A/碌s, Ta= 25擄C
Rth(j-c) Junction to Case
1
2
3
4
