GC5016-PBZ Datasheet

  • GC5016-PBZ

  • WIDEBAND QUAD DIGITAL DOWN CONVERTER/ UP CONVERTER

  • 88頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

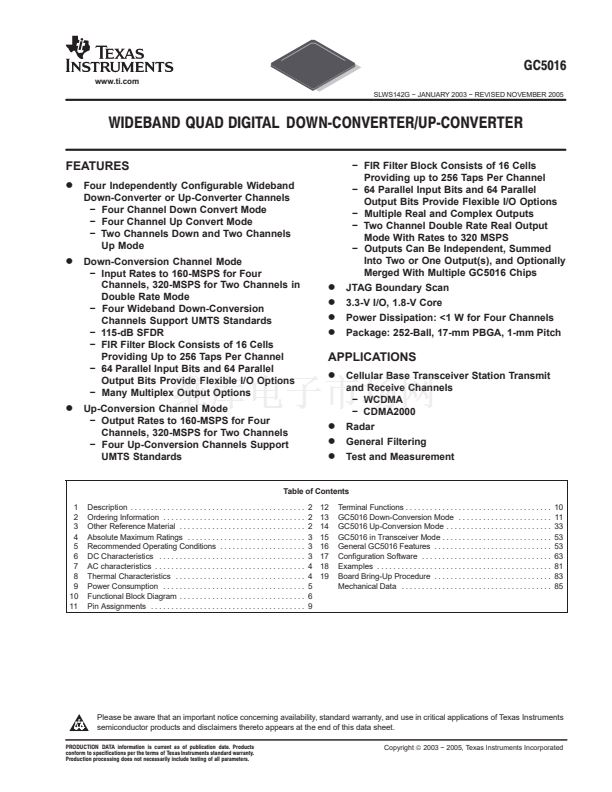

GC5016
www.ti.com
SLWS142G 鈭?JANUARY 2003 鈭?REVISED NOVEMBER 2005
WIDEBAND QUAD DIGITAL DOWN CONVERTER/UP CONVERTER
FEATURES
D
Four Independently Configurable Wideband
Down-Converter or Up-Converter Channels
鈭?Four Channel Down Convert Mode
鈭?Four Channel Up Convert Mode
鈭?Two Channels Down and Two Channels
Up Mode
鈭?FIR Filter Block Consists of 16 Cells
Providing up to 256 Taps Per Channel
鈭?64 Parallel Input Bits and 64 Parallel
Output Bits Provide Flexible I/O Options
鈭?Multiple Real and Complex Outputs
鈭?Two Channel Double Rate Real Output
Mode With Rates to 320 MSPS
鈭?Outputs Can Be Independent, Summed
Into Two or One Output(s), and Optionally
Merged With Multiple GC5016 Chips
JTAG Boundary Scan
3.3-V I/O, 1.8-V Core
Power Dissipation: <1 W for Four Channels
D
Down-Conversion Channel Mode
鈭?Input Rates to 160-MSPS for Four
Channels, 320-MSPS for Two Channels in
Double Rate Mode
鈭?Four Wideband Down-Conversion
Channels Support UMTS Standards
鈭?115-dB SFDR
鈭?FIR Filter Block Consists of 16 Cells
Providing Up to 256 Taps Per Channel
鈭?64 Parallel Input Bits and 64 Parallel
Output Bits Provide Flexible I/O Options
鈭?Many Multiplex Output Options
D
D
D
D
Package: 252-Ball, 17-mm PBGA, 1-mm Pitch
APPLICATIONS
D
Cellular Base Transceiver Station Transmit
and Receive Channels
鈭?WCDMA
鈭?CDMA2000
Radar
D
Up-Conversion Channel Mode
鈭?Output Rates to 160-MSPS for Four
Channels, 320-MSPS for Two Channels
鈭?Four Up-Conversion Channels Support
UMTS Standards
D
D
General Filtering
D
Test and Measurement
Table of Contents
1
2
3
4
5
6
7
8
9
10
11

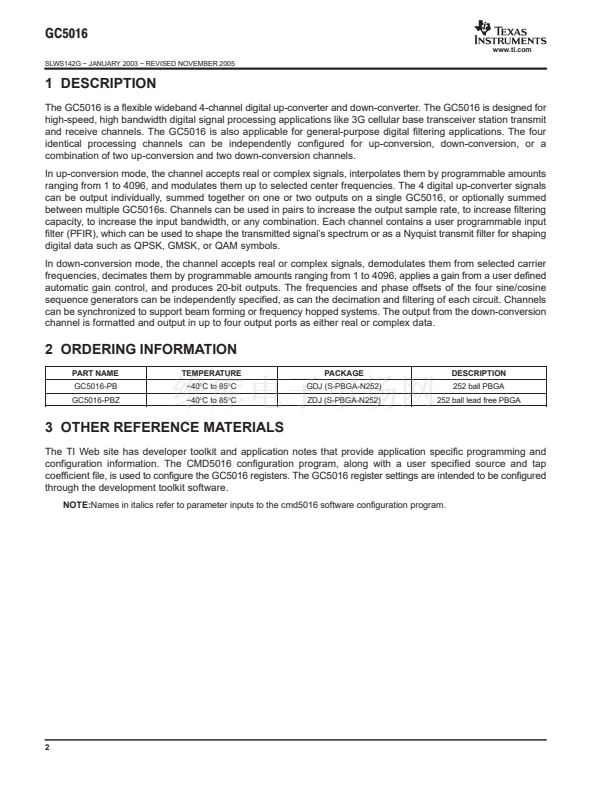

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Other Reference Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recommended Operating Conditions . . . . . . . . . . . . . . . . . . . . .
DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

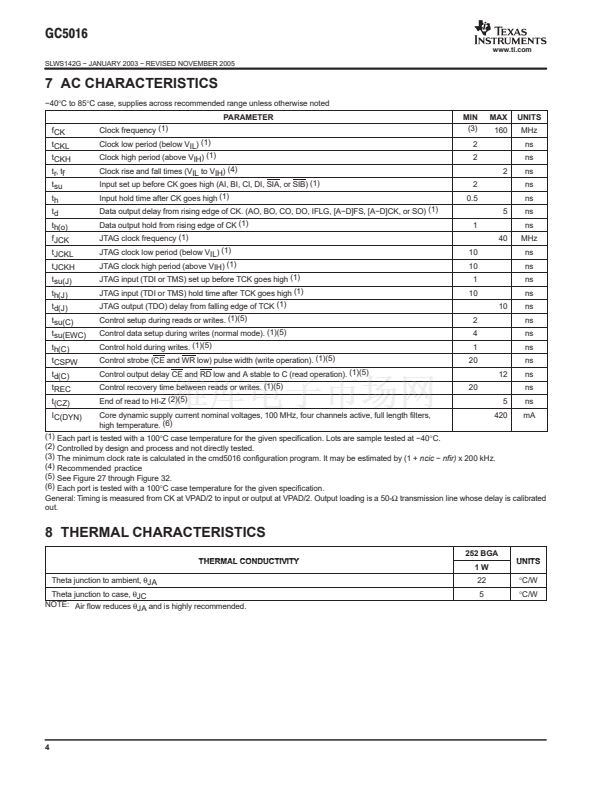

AC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermal Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

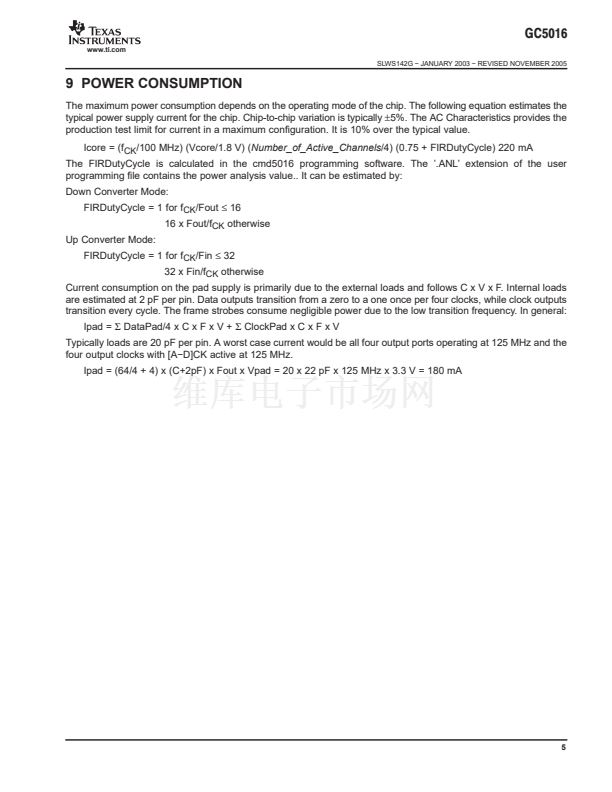

Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

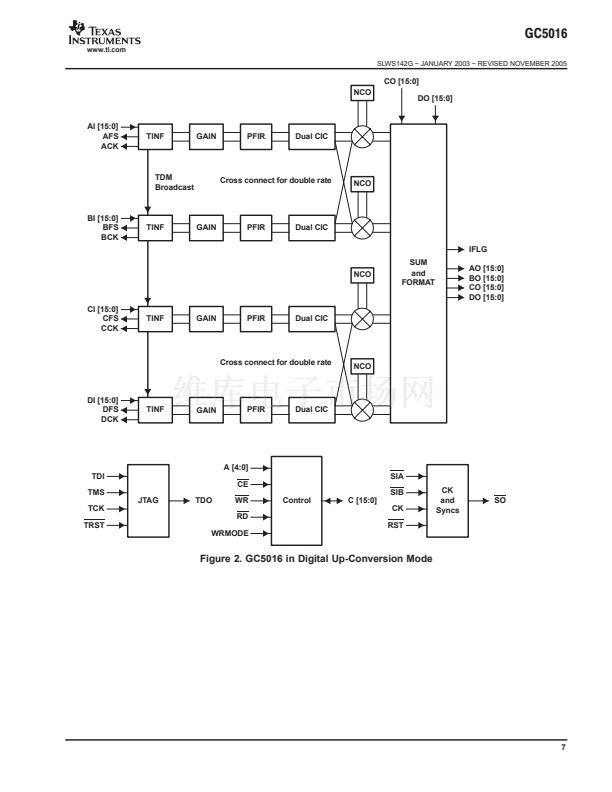

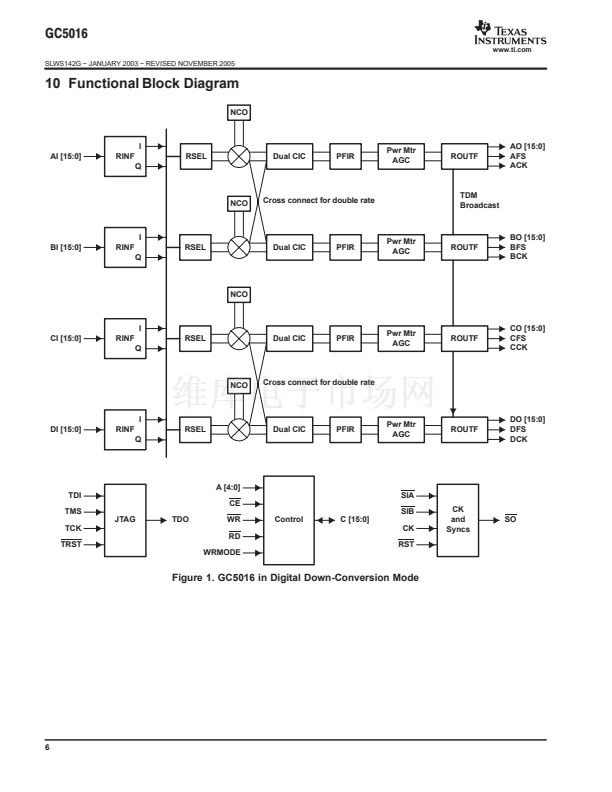

Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

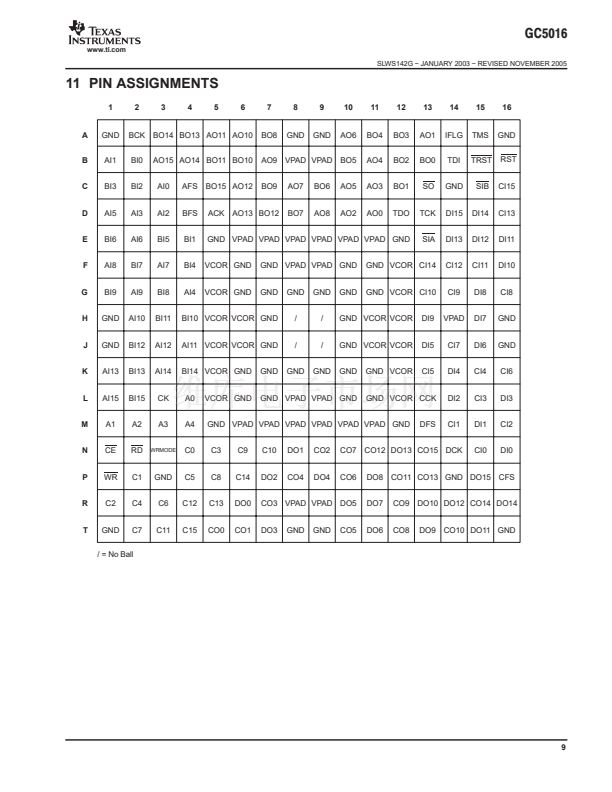

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2
2
3
3
3
4
4
5
6
9
12
13
14
15
16
17
18
19

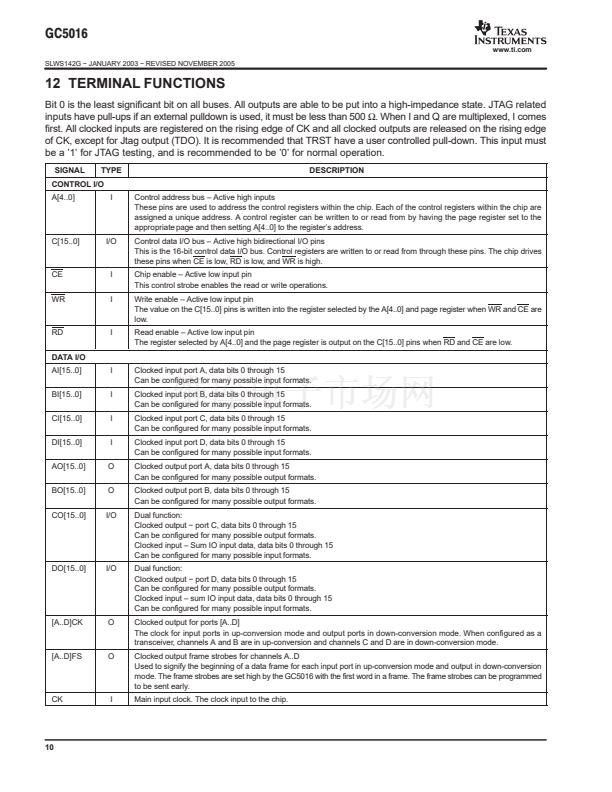

Terminal Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

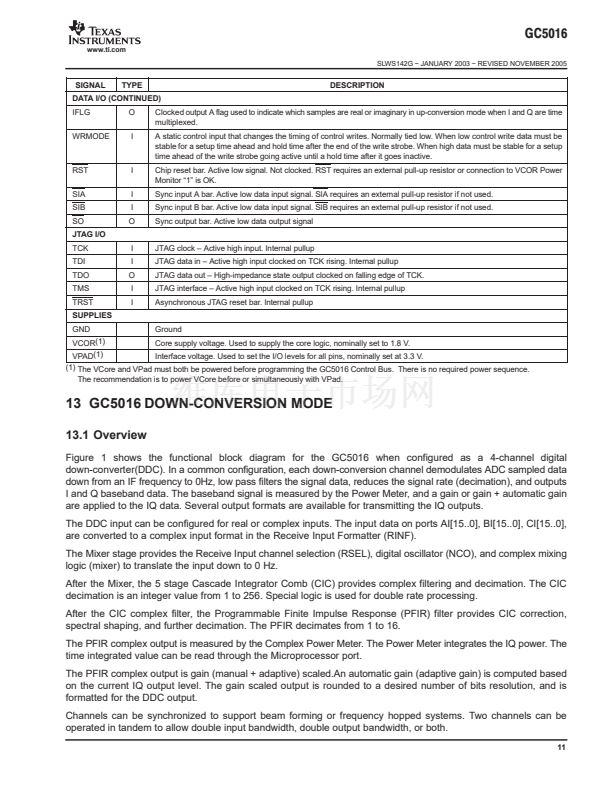

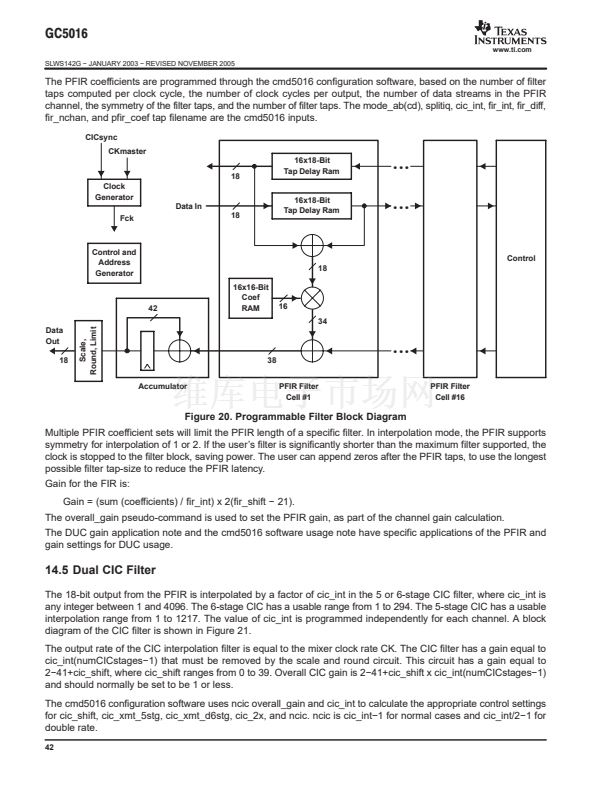

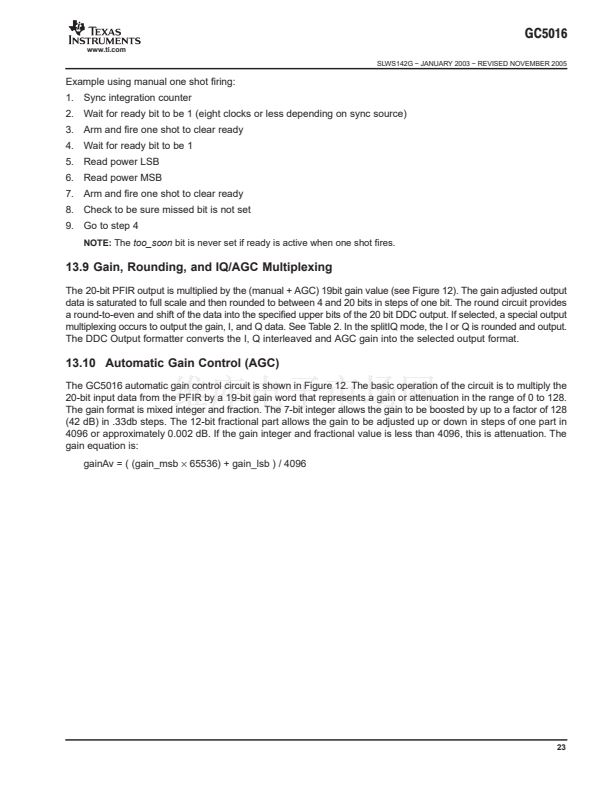

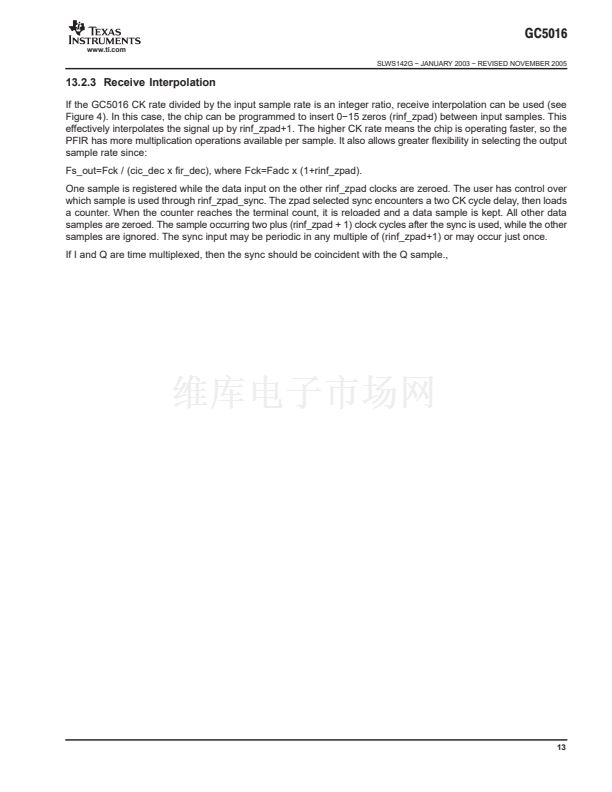

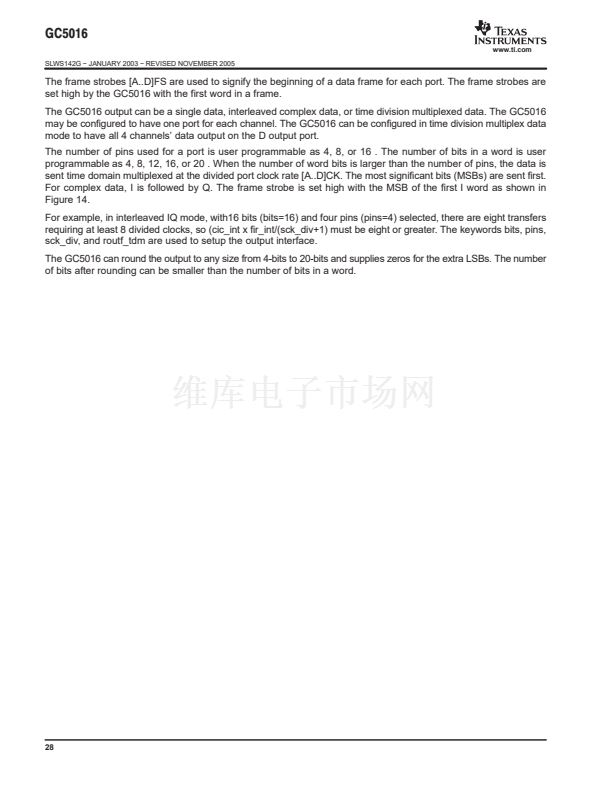

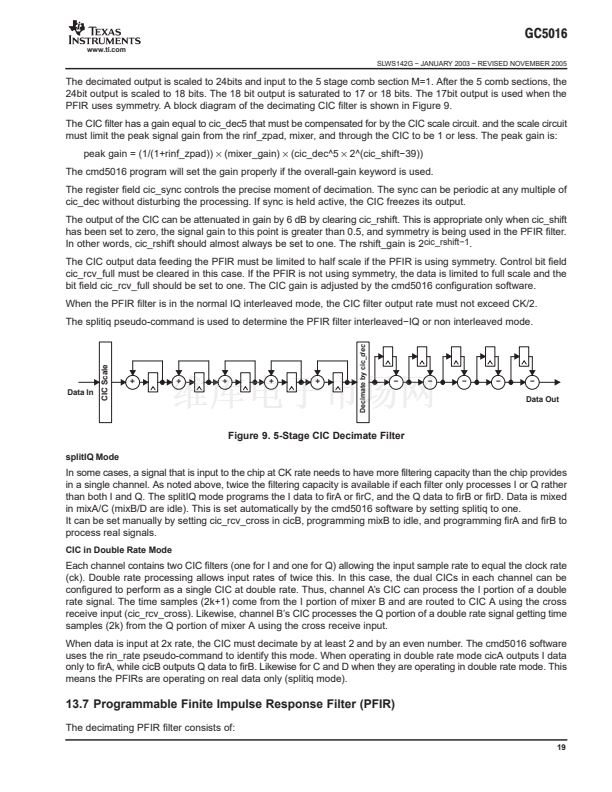

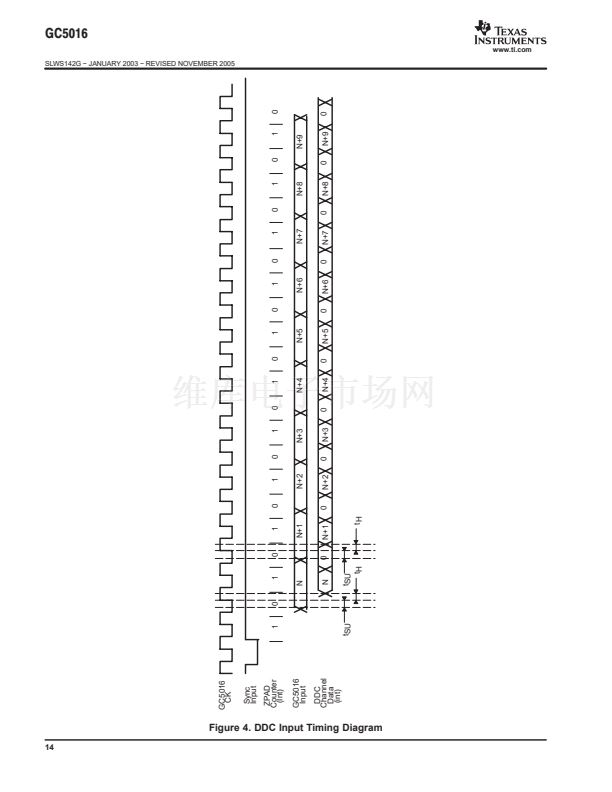

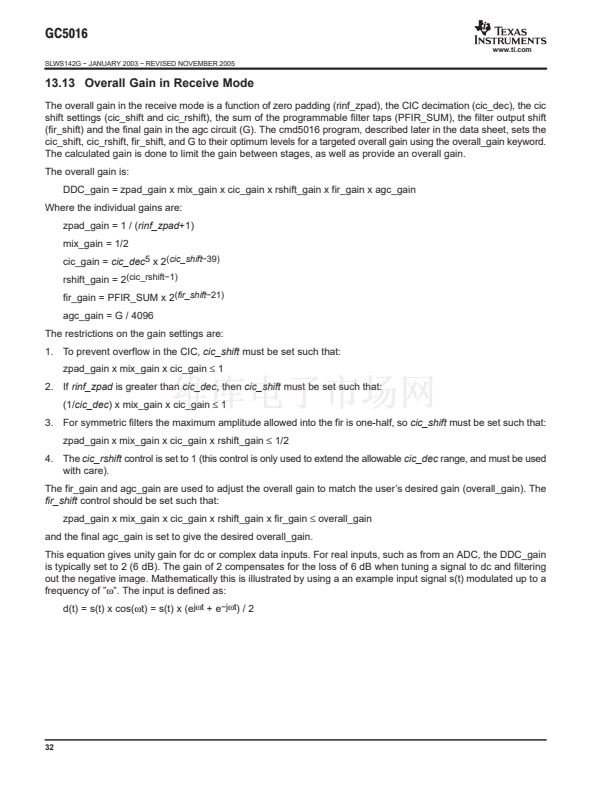

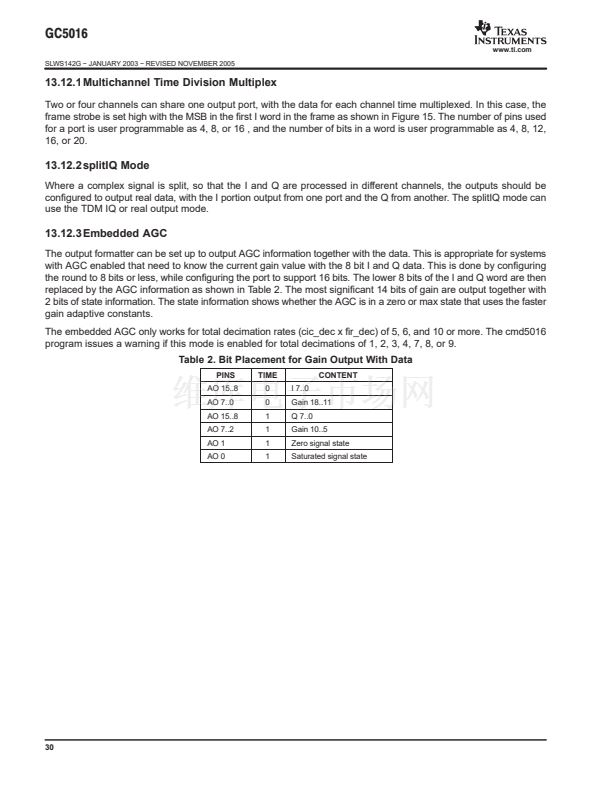

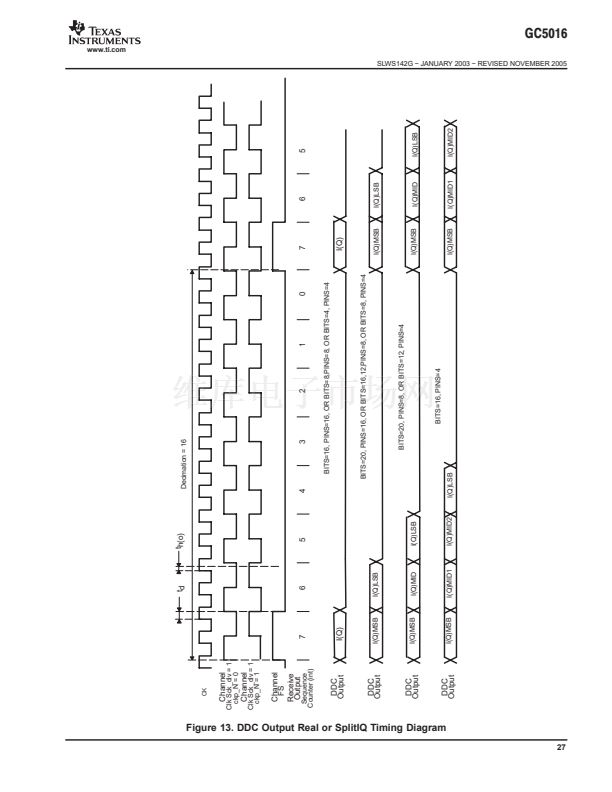

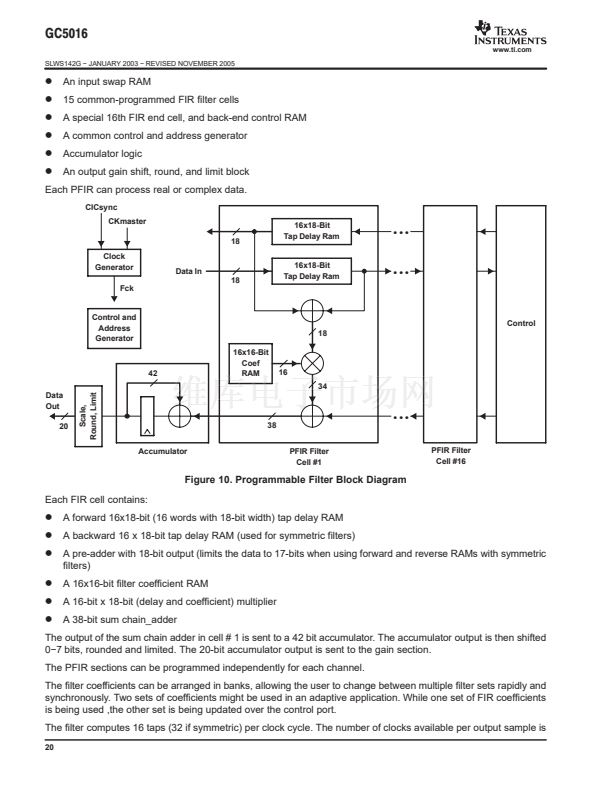

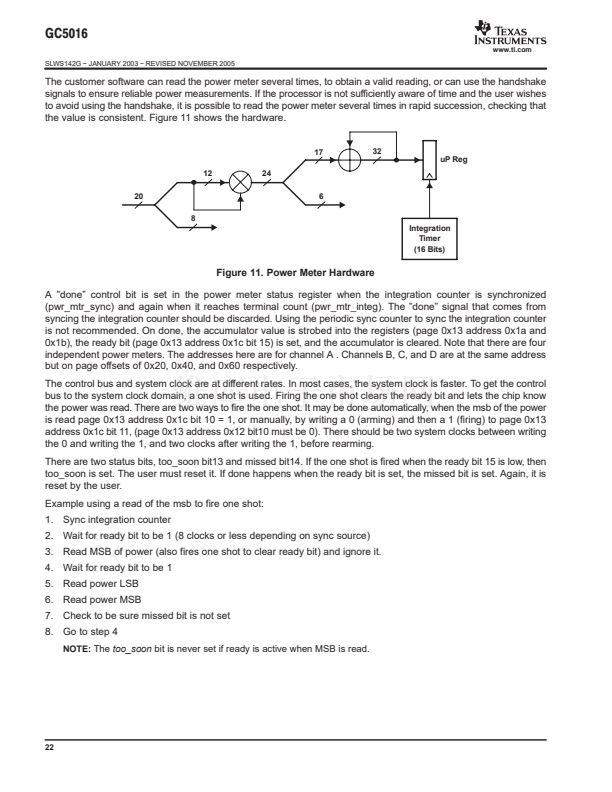

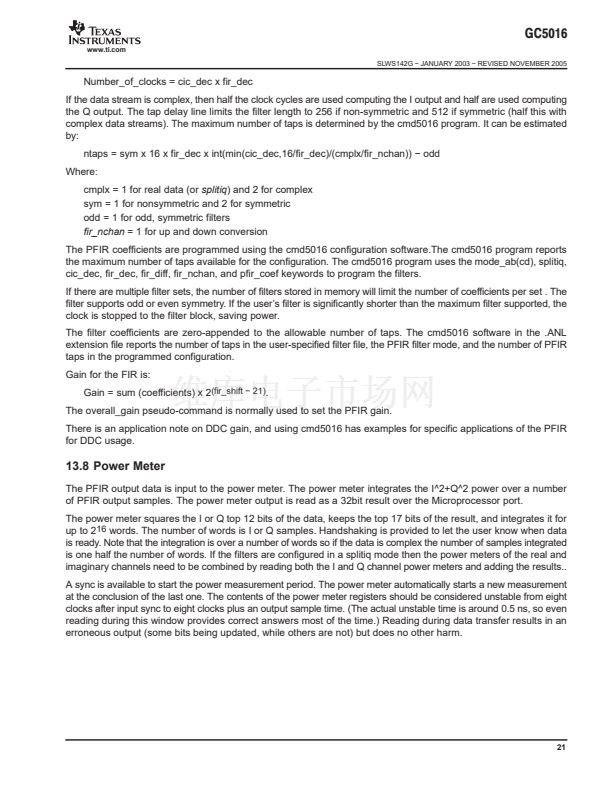

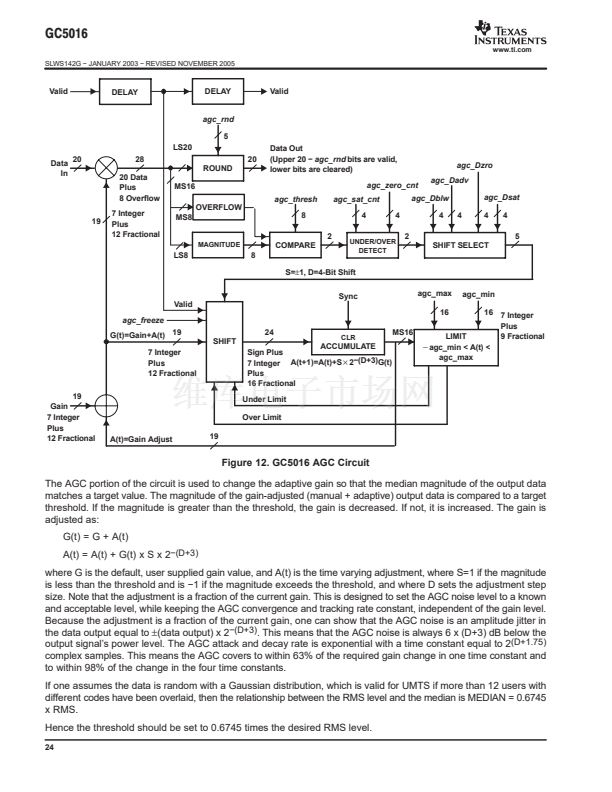

GC5016 Down-Conversion Mode . . . . . . . . . . . . . . . . . . . . . . .

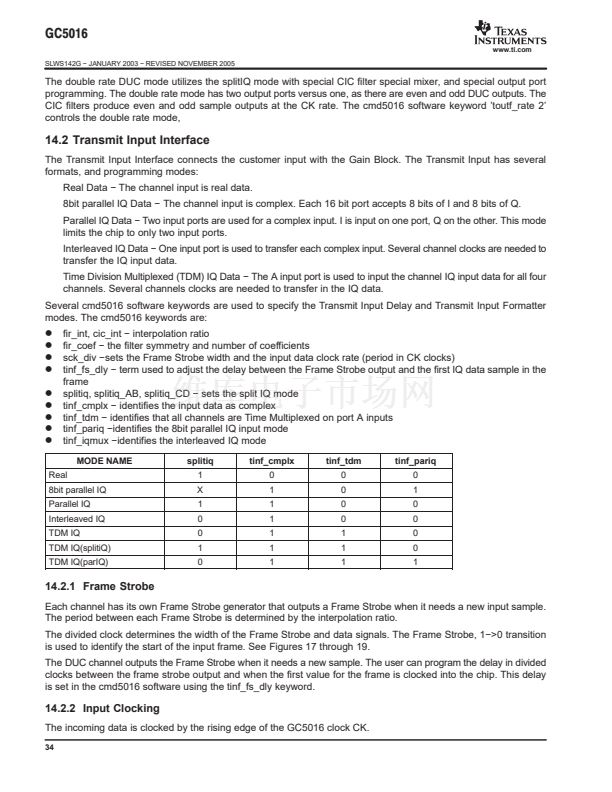

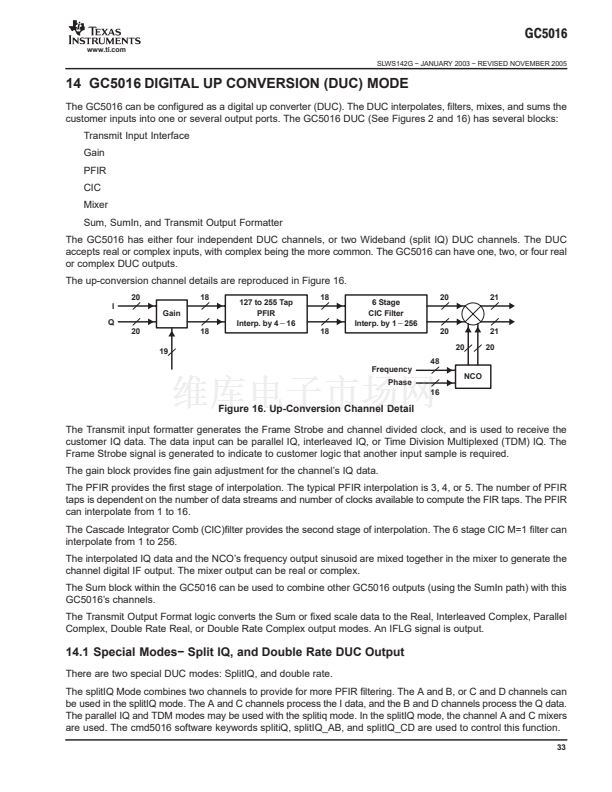

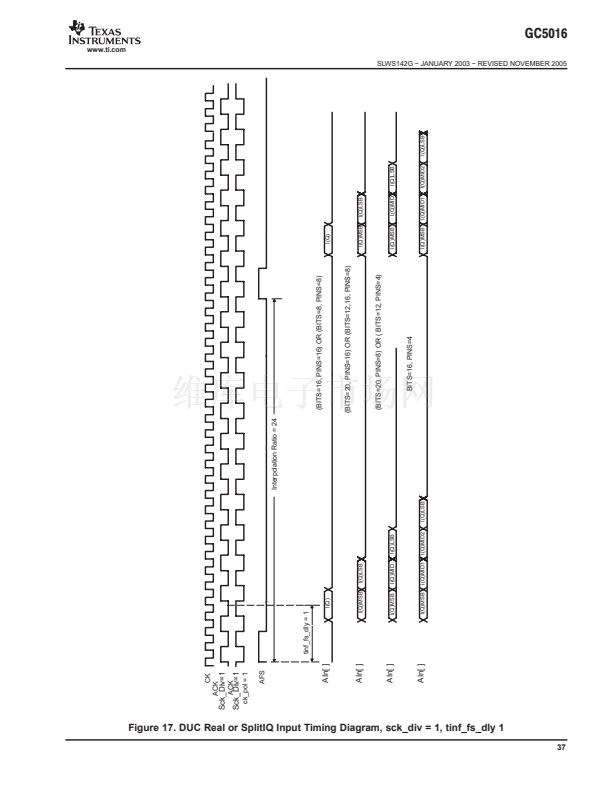

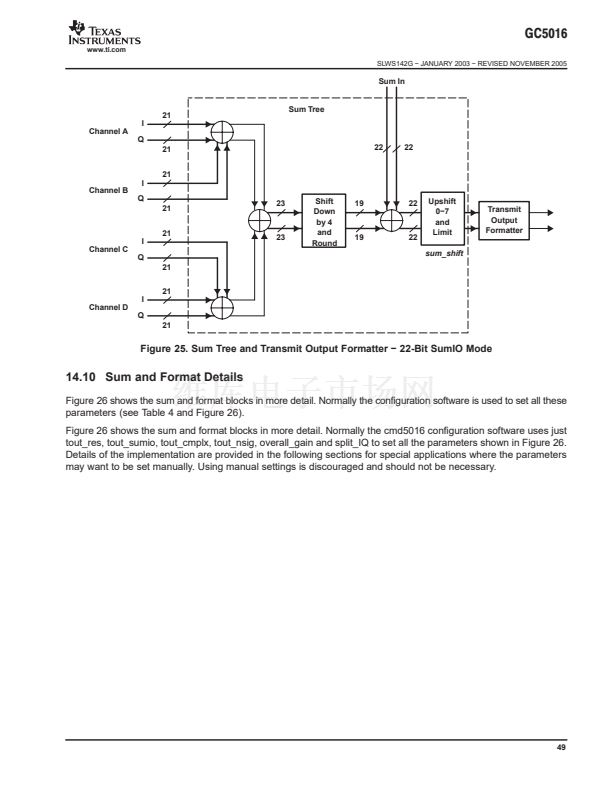

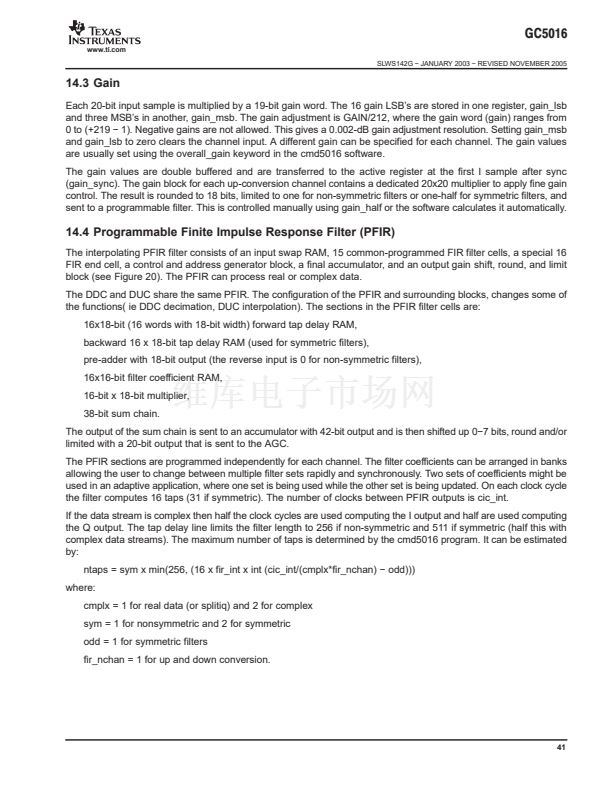

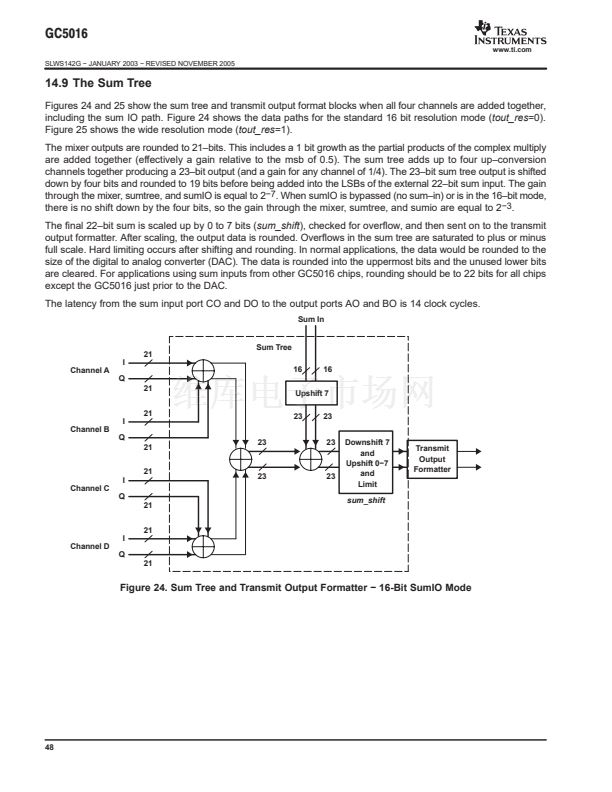

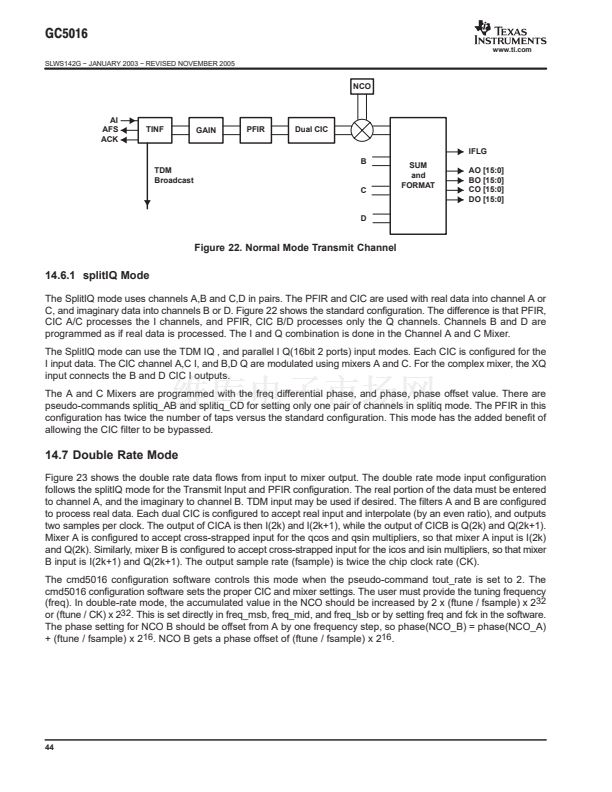

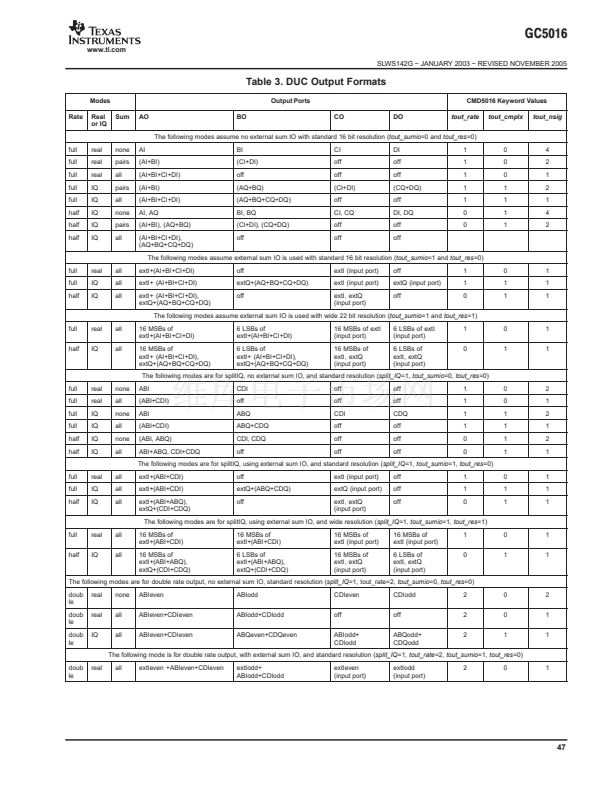

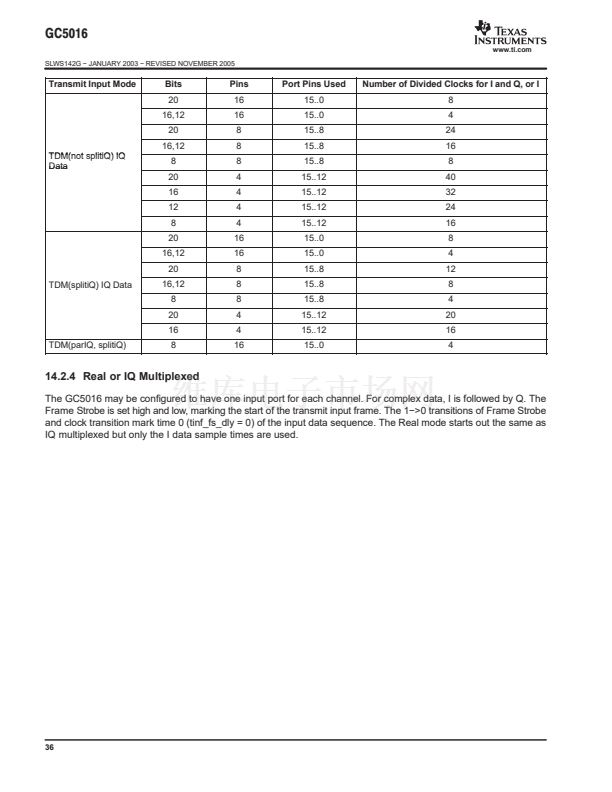

GC5016 Up-Conversion Mode . . . . . . . . . . . . . . . . . . . . . . . . . .

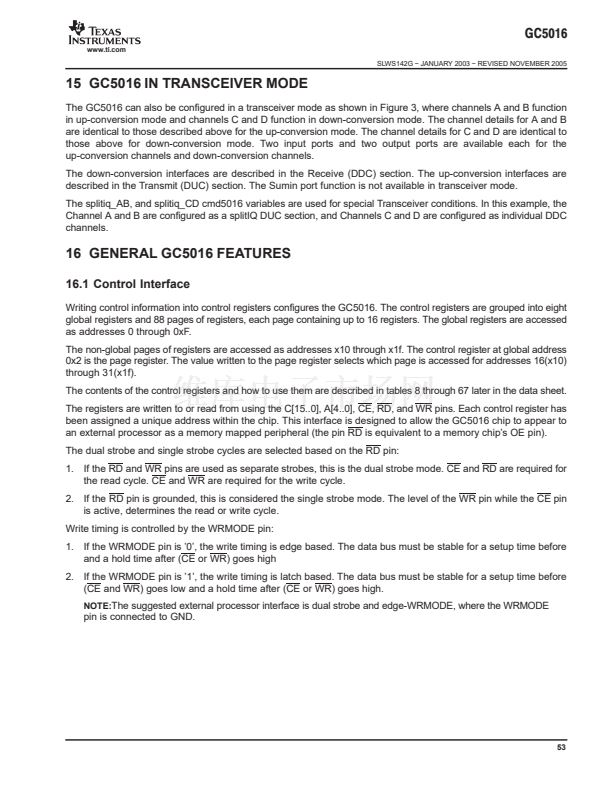

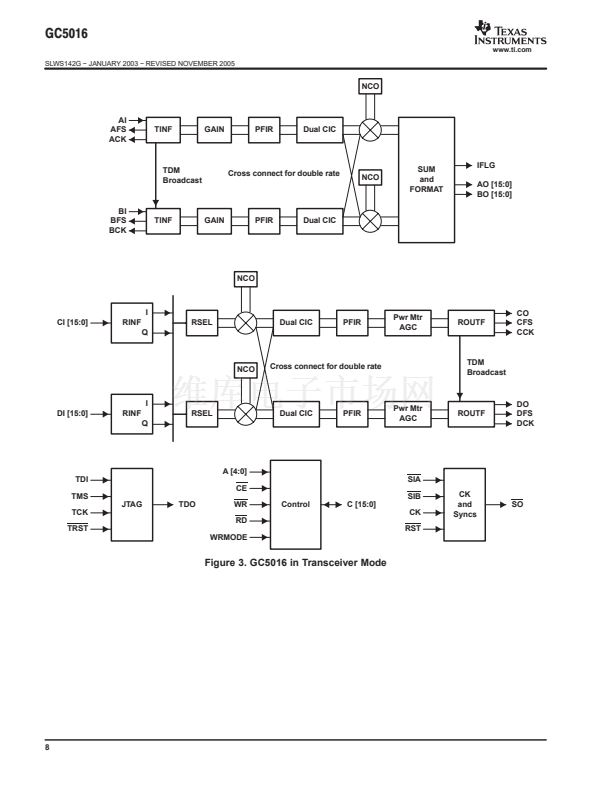

GC5016 in Transceiver Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .

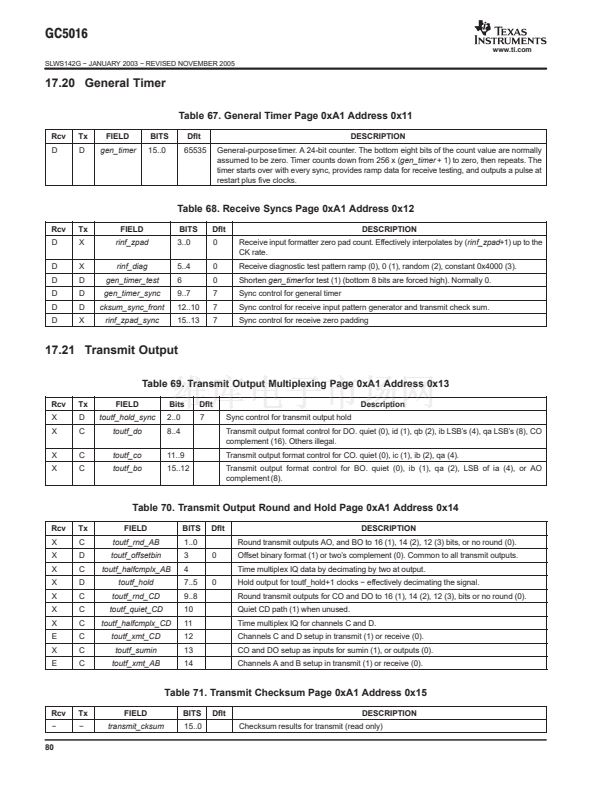

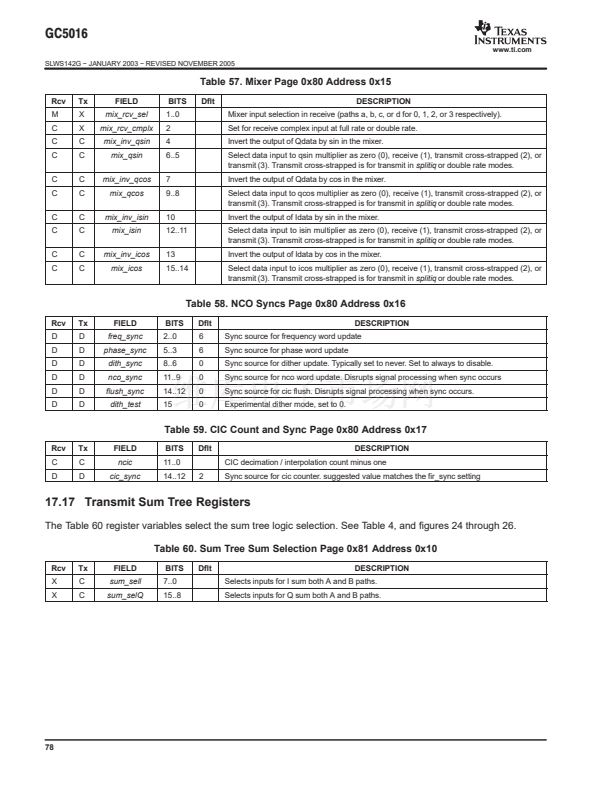

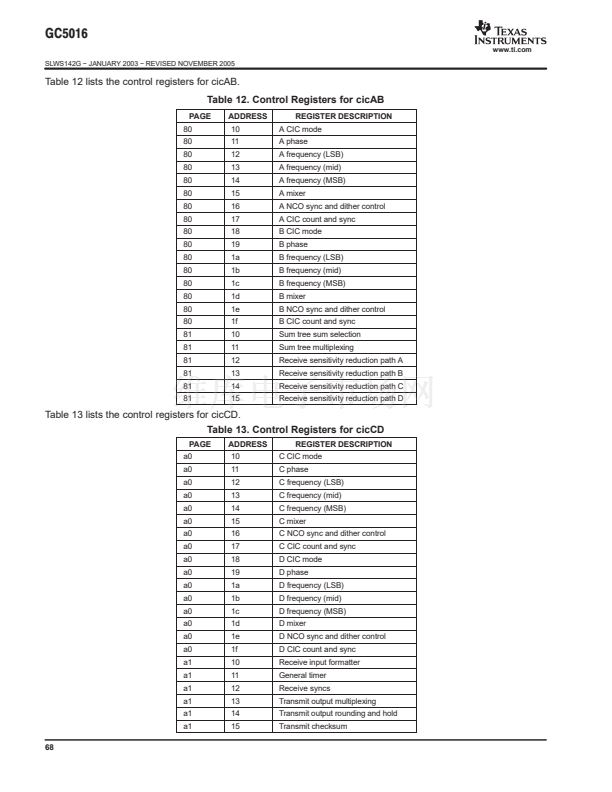

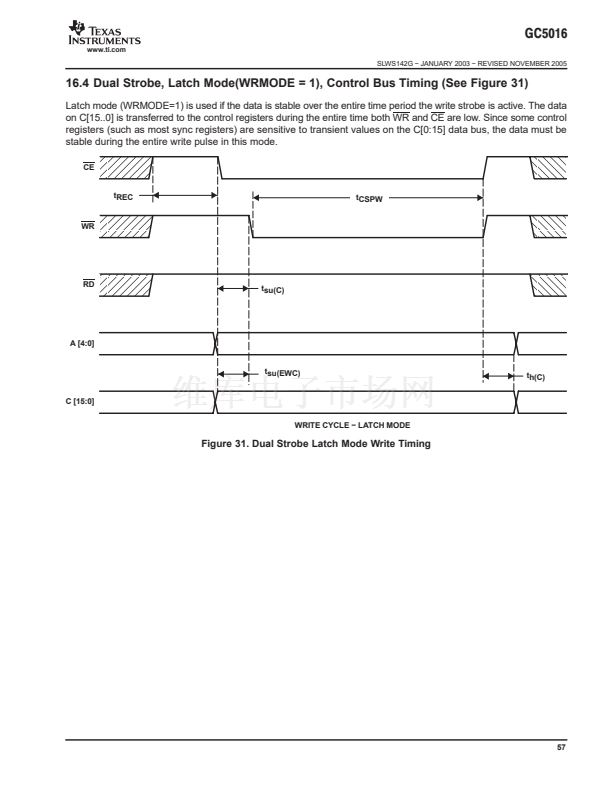

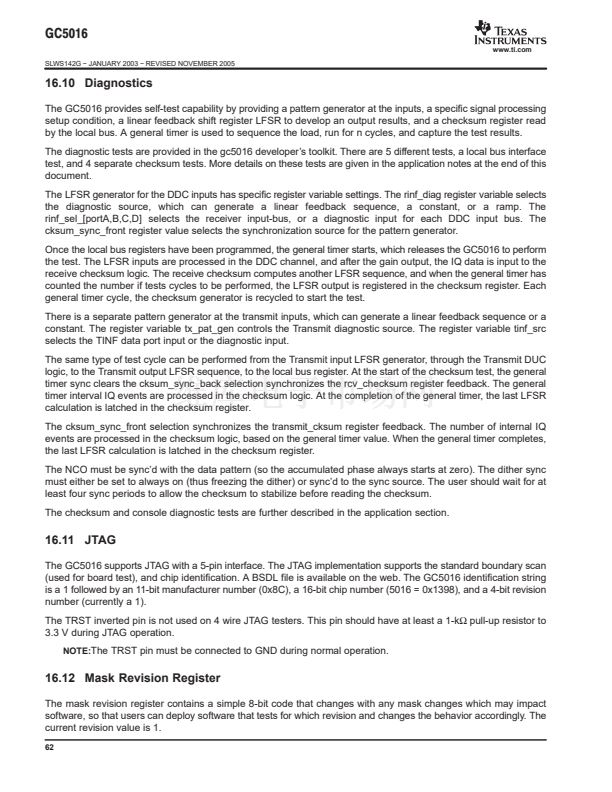

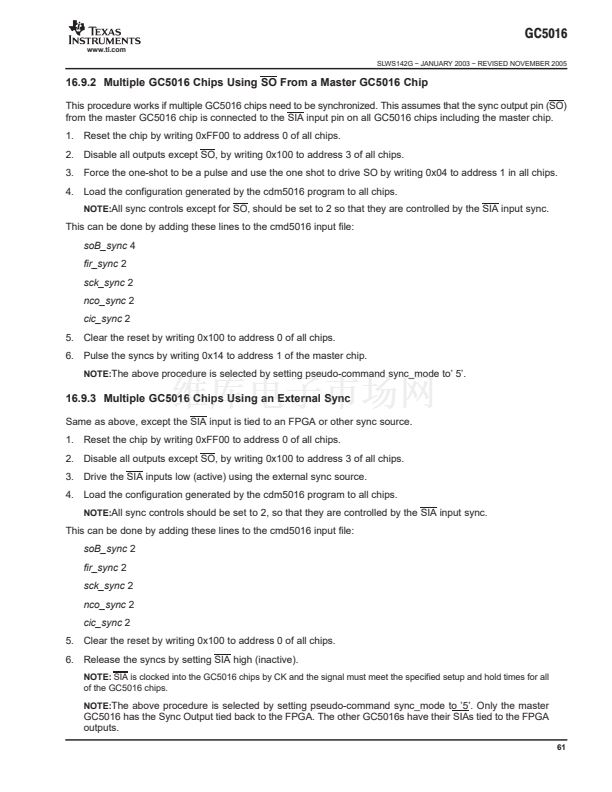

General GC5016 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

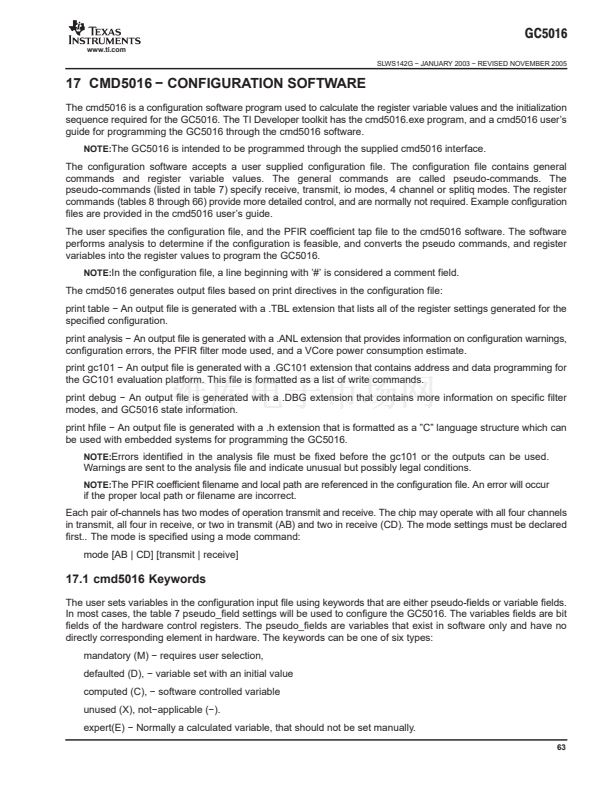

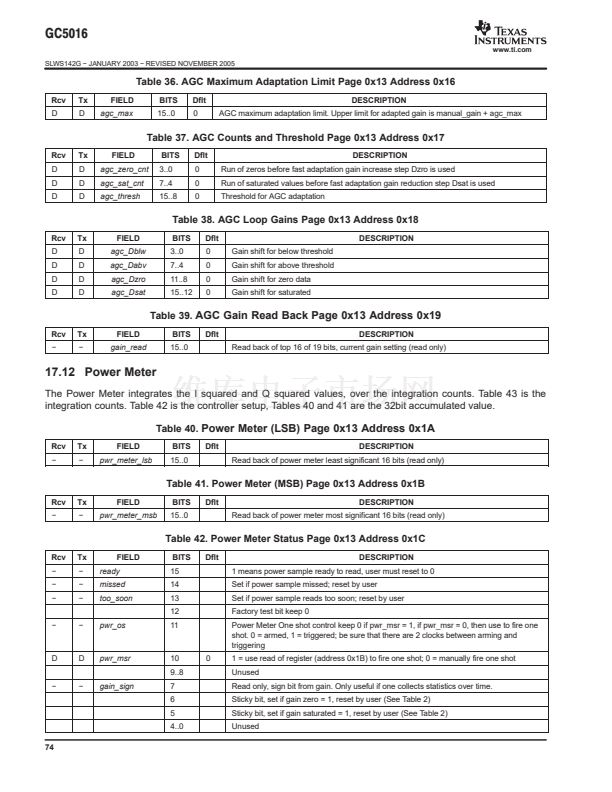

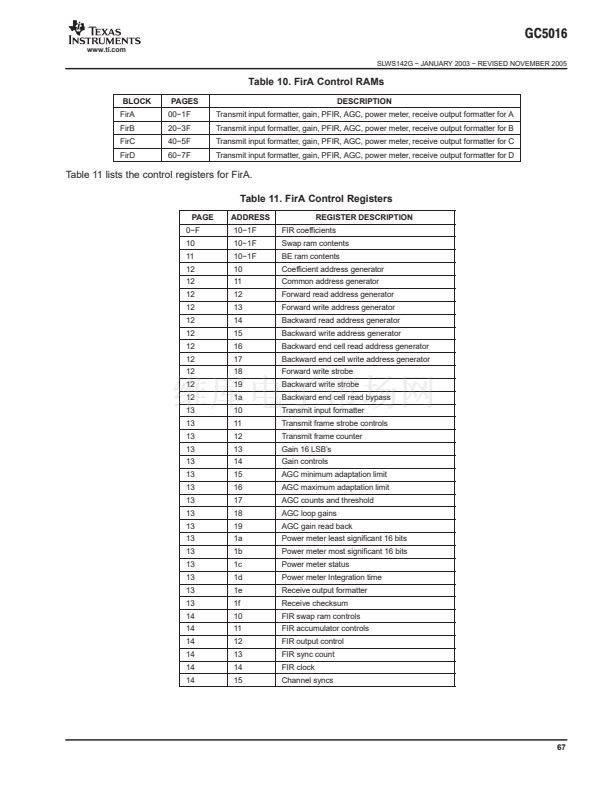

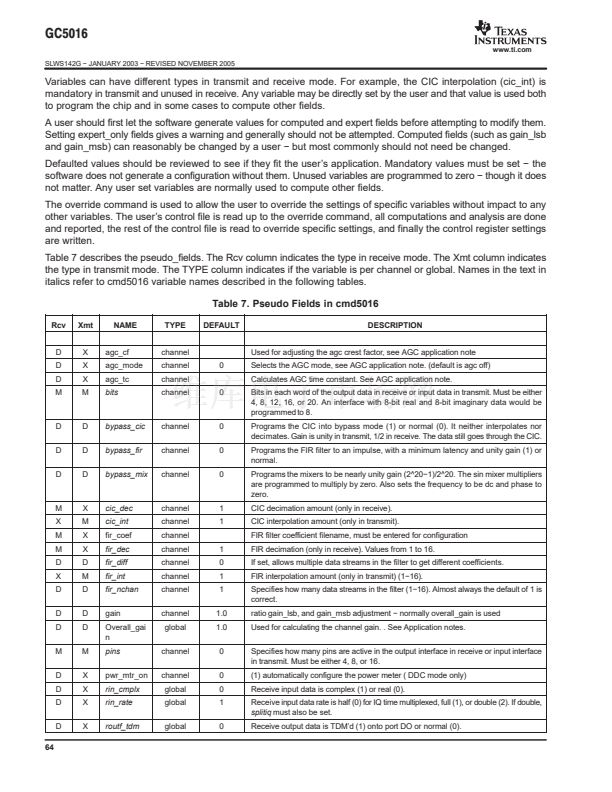

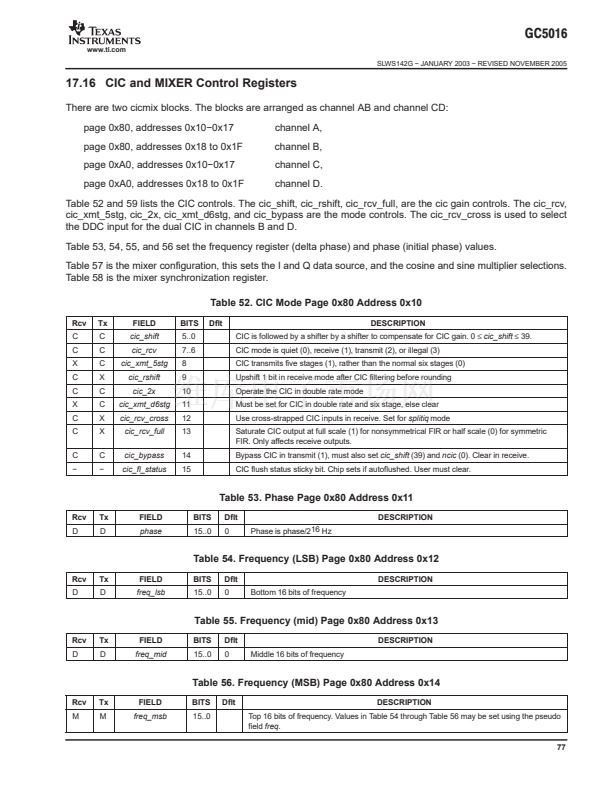

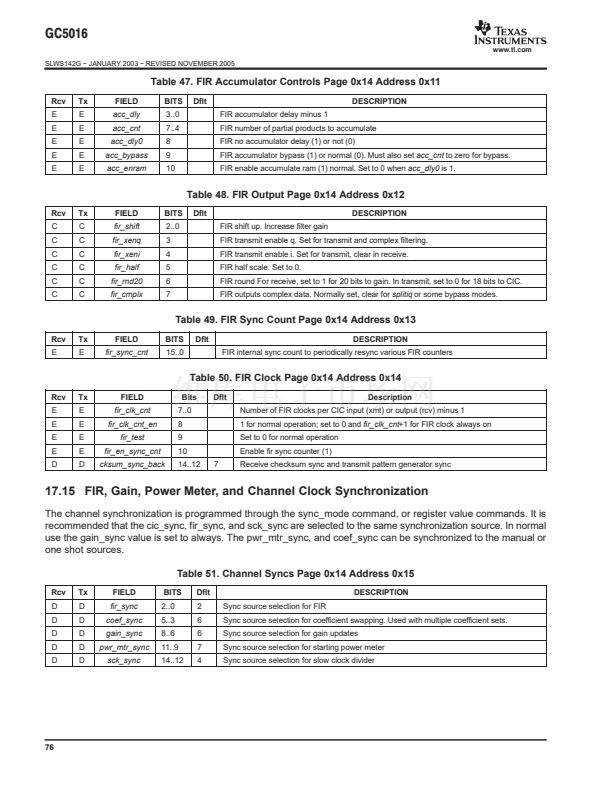

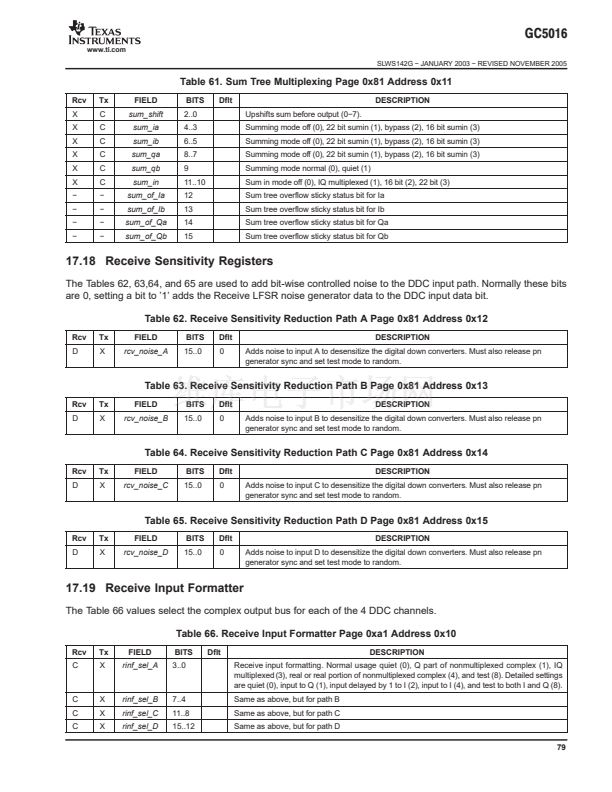

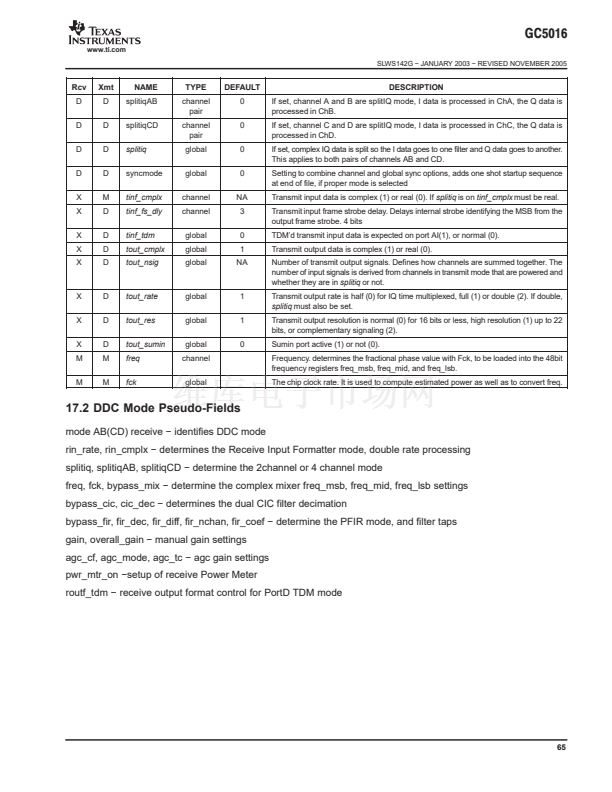

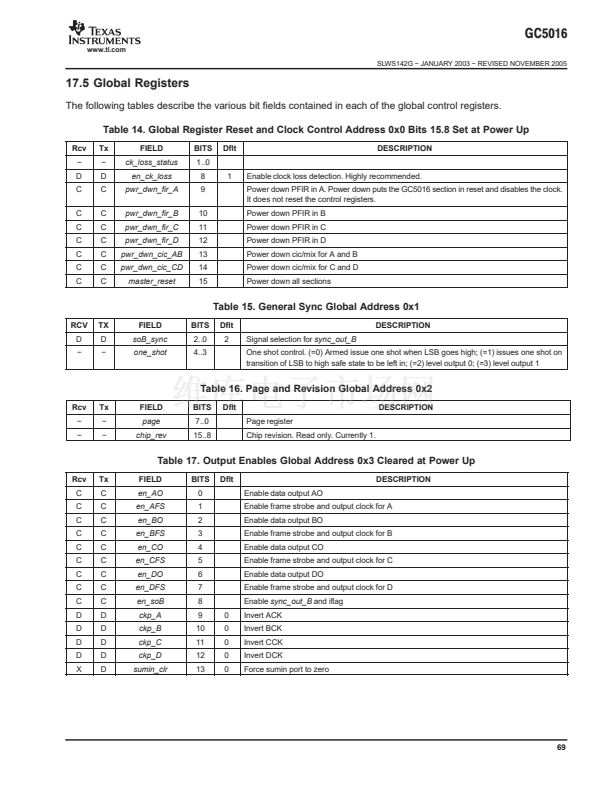

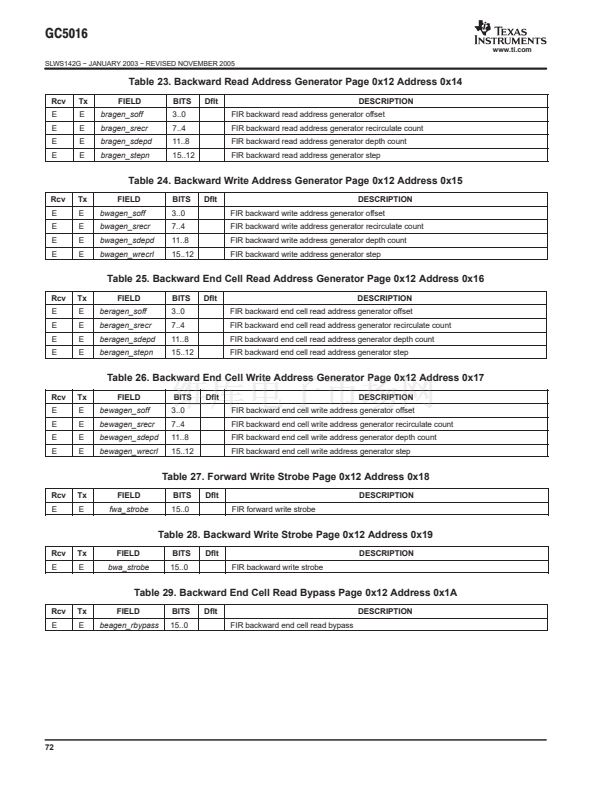

Configuration Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

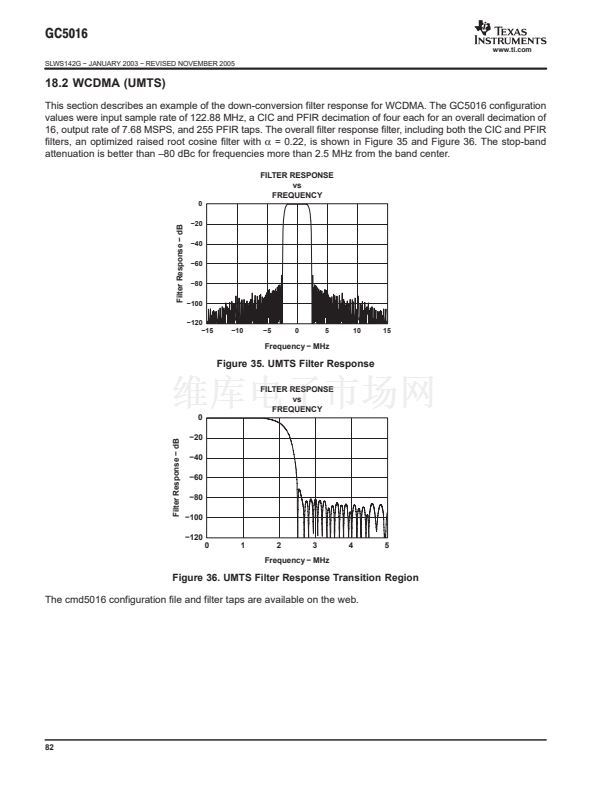

Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

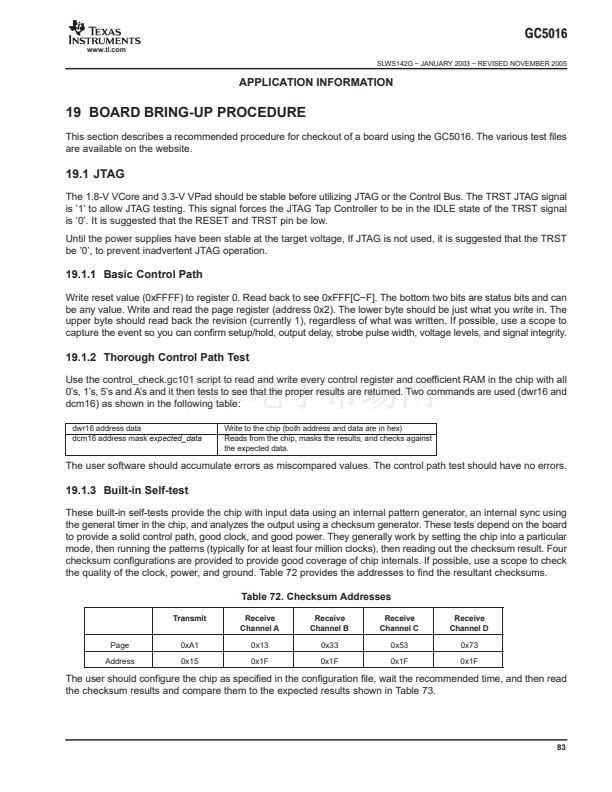

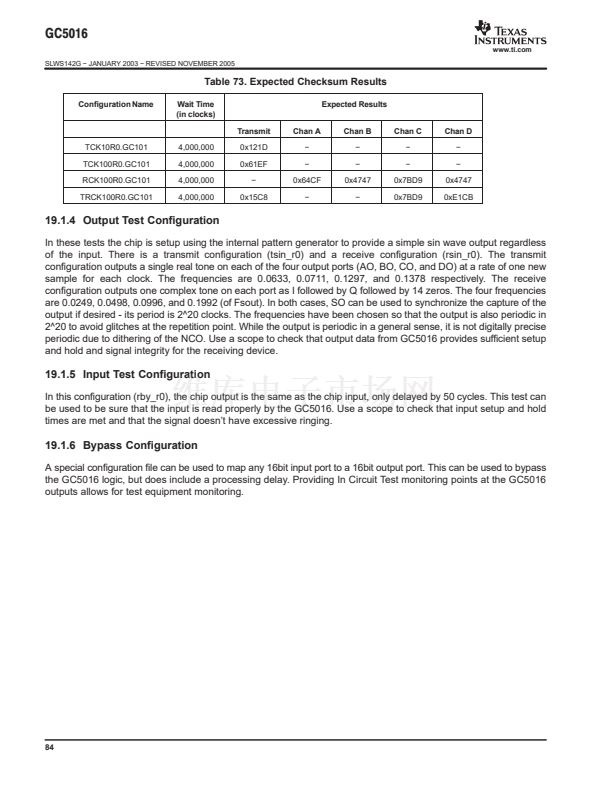

Board Bring-Up Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

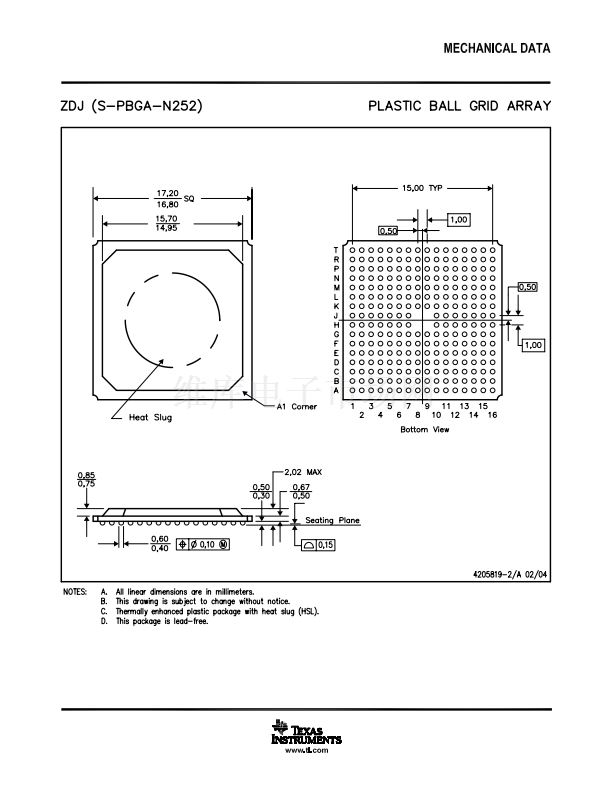

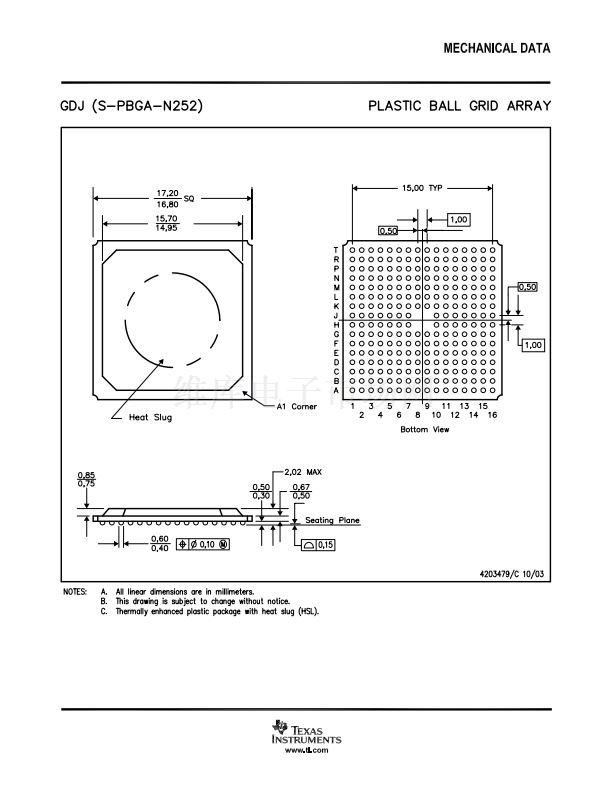

Mechanical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
11
33
53
53
63
81
83
85
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments
semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date. Products
conform to specifications per the terms of Texas Instruments standard warranty.
Production processing does not necessarily include testing of all parameters.
Copyright
錚?/div>
2003 鈭?2005, Texas Instruments Incorporated

GC5016-PBZ 產品屬性

  • RFID Technology and Applications

  • 90

  • RF/IF 和 RFID

  • RF 混頻器

  • GC5016

  • 手機，CDMA2000，W-CDMA

  • -

  • 4

  • -

  • -

  • 升/降頻器

  • -

  • -

  • 托盤

  • 252-BGA 裸露焊盤

  • 252-BGA（17x17）

  • 296-31329-ND - KIT WIDEBAND DGTL REPEATER DEMOGC5016SEK-ND - EVAL KIT FOR GC5016GC5016EVM-ND - EVAL MODULE FOR GC5016
