SPICE MODELS: GBU4005 GBU401 GBU402 GBU404 GBU406 GBU408 GBU410
GBU4005 - GBU410
4.0A GLASS PASSIVATED BRIDGE RECTIFIER
Features
路
路
路
路
路
路
路
路
路
路
路
路
路
路
路
路
路
路
Glass Passivated Die Construction
High Case Dielectric Strength of 1500VRMS
Low Reverse Leakage Current
Surge Overload Rating to 150A Peak
Ideal for Printed Circuit Board Applications
UL Listed Under Recognized Component
Index, File Number E94661
Lead Free Finish, RoHS Compliant (Note 4)
L
A
B
K
C
GBU
Dim
A
B
M
Min
21.8
3.5
7.4
1.65
2.25
1.95
1.02
4.83
17.5
18.3
3.30
0.46
0.76
Max
22.3
4.1
7.9
2.16
2.75
2.35
1.27
5.33
18.0
18.8
3.56
0.56
1.0
C
D
E
F
Mechanical Data
Case: GBU
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Plated Leads. Solderable per MIL-STD-202,
Method 208
e
3
Lead Free Plating (Tin Finish)
Polarity: Marked on Body
Mounting: Through Hole for #6 Screw
Mounting Torque: 5.0 Inch-pounds Maximum

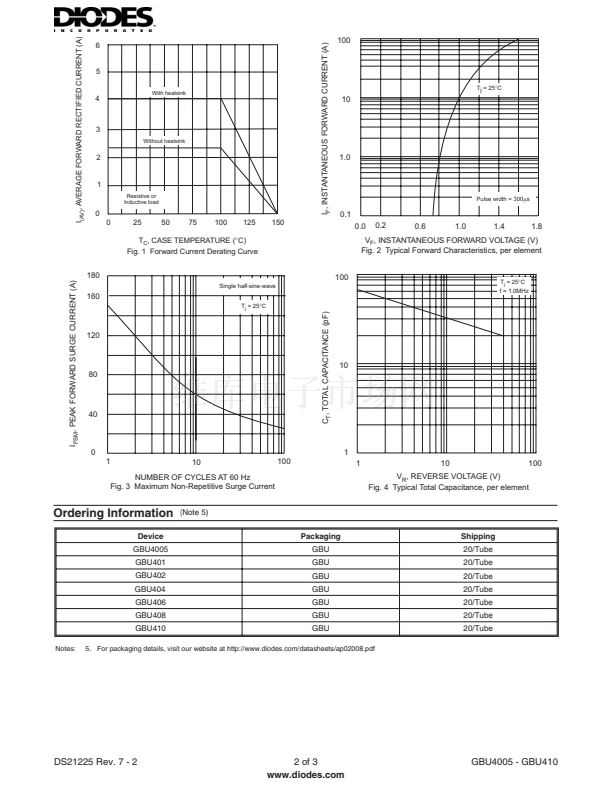

Ordering Information: See Last Page
Marking: Date Code and Type Number
Weight: 6.6 grams (approximate)
-
J
~
~
+
D
E
F
N
G
P
G
H
J
K
L
M
N
P
3.2 X 45擄
H
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Single phase, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Rectified Current (Note 1) @ T
C
= 100擄C
Non-Repetitive Peak Forward Surge Current 8.3ms
single half sine-wave superimposed on rated load
Forward Voltage (per element)
Peak Reverse Current
at Rated DC Blocking Voltage
I
2
t Rating for Fusing (Note 2)
Typical Total Capacitance per Element (Note 3)
Typical Thermal Resistance Junction to Case (Note 1)
Operating and Storage Temperature Range
@ I
F
= 2.0A
@ T
C
= 25擄C
@ T
C
= 125擄C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
(AV)
I
FSM
V
FM
I
R
I
2
t
C
T
R
qJC
T
j,
T
STG
GBU
4005
50
35
@ T
A
= 25擄C unless otherwise specified
GBU
401
100
70
GBU
402
200
140
GBU
404
400
280
4.0
150
1.0
5.0
50
93
80
2.2
-55 to +150
GBU
406
600
420
GBU
408
800
560
GBU
410
1000
700
Unit
V
V
A
A
V
mA
A
2
s
pF
擄C/W
擄C
Notes:
1. Unit mounted on 50mm x 50mm x 1.6mm copper plate heatsink.
2. Non-repetitive, for t > 1.0ms and < 8.3ms.
3. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
4. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see
EU Directive Annex Notes 5 and 7.
DS21225 Rev. 7 - 2
1 of 3
www.diodes.com
GBU4005 - GBU410
茫
Diodes Incorporated
1
2
3
