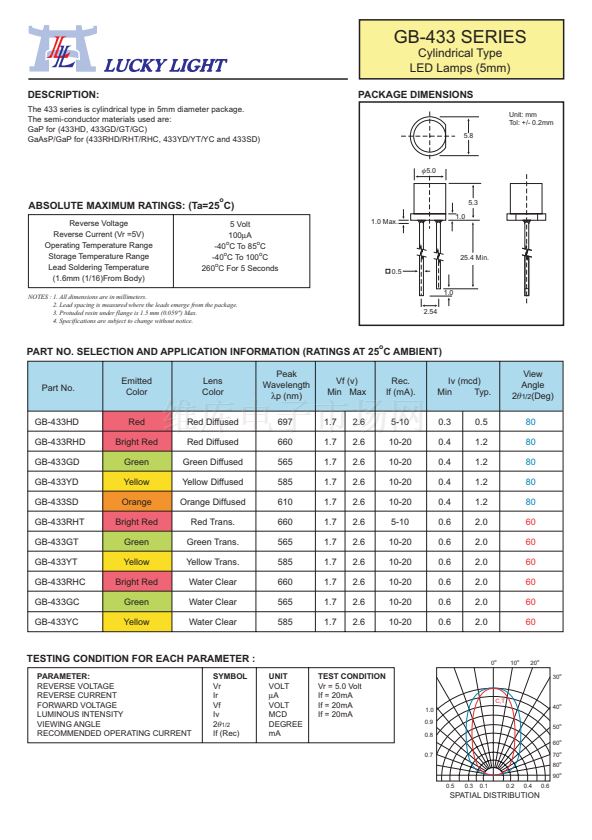

GB-433 SERIES
Cylindrical Type
LED Lamps (5mm)
DESCRIPTION:
The 433 series is cylindrical type in 5mm diameter package.
The semi-conductor materials used are:
GaP for (433HD, 433GD/GT/GC)
GaAsP/GaP for (433RHD/RHT/RHC, 433YD/YT/YC and 433SD)
PACKAGE DIMENSIONS
Unit: mm
Tol: +/- 0.2mm
5.8
蠁5.0
ABSOLUTE MAXIMUM RATINGS: (Ta=25 C)
Reverse Voltage
Reverse Current (Vr =5V)
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature
(1.6mm (1/16)From Body)
5 Volt
100碌A
o
-40 C To 85
o
C
-40
o
C To 100
o
C
o
260 C For 5 Seconds
1.0 Max.
1.0
o
5.3
25.4 Min.
0.5
1.0
2.54
NOTES : 1. All dimensions are in millimeters.
2. Lead spacing is measured where the leads emerge from the package.
3. Protuded resin under flange is 1.5 mm (0.059") Max.
4. Specifications are subject to change without notice.
PART NO. SELECTION AND APPLICATION INFORMATION (RATINGS AT 25 C AMBIENT)
Emitted
Color
Red
Bright Red
Green
Yellow
Orange
Bright Red
Green
Yellow
Bright Red
Green
Yellow
Lens
Color
Red Diffused
Red Diffused
Green Diffused
Yellow Diffused
Orange Diffused
Red Trans.
Green Trans.
Yellow Trans.
Water Clear
Water Clear
Water Clear
Peak
Wavelength
位p
(nm)
697
660
565
585
610
660
565
585
660
565
585
Vf (v)
Min Max
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
2.6
Rec.
If (mA).
5-10
10-20
10-20
10-20
10-20
5-10
10-20
10-20
10-20
10-20
10-20
Iv (mcd)
Min
Typ.
0.3
0.4
0.4
0.4
0.4
0.6
0.6
0.6
0.6
0.6
0.6
0.5
1.2
1.2
1.2
1.2
2.0
2.0
2.0
2.0
2.0
2.0
View
Angle
2胃
1/2
(Deg)
80
80
80
80
80
60
60
60
60
60
60
o
Part No.
GB-433HD
GB-433RHD
GB-433GD
GB-433YD
GB-433SD
GB-433RHT
GB-433GT
GB-433YT
GB-433RHC
GB-433GC
GB-433YC
TESTING CONDITION FOR EACH PARAMETER :
PARAMETER:
REVERSE VOLTAGE
REVERSE CURRENT
FORWARD VOLTAGE
LUMINOUS INTENSITY
VIEWING ANGLE
RECOMMENDED OPERATING CURRENT
SYMBOL
Vr
Ir
Vf
Iv
2胃
1/2
If (Rec)
UNIT
VOLT
碌A
VOLT
MCD
DEGREE
mA
TEST CONDITION
Vr = 5.0 Volt
If = 20mA
If = 20mA
If = 20mA
0
o
10
o
20
o
30
o
C,T
1.0
0.9
0.8
40
o
50
o
60
o
0.7
70
o
80
o
90
o
0.5
0.3
0.1
0.2
0.4
0.6
SPATIAL DISTRIBUTION
1
