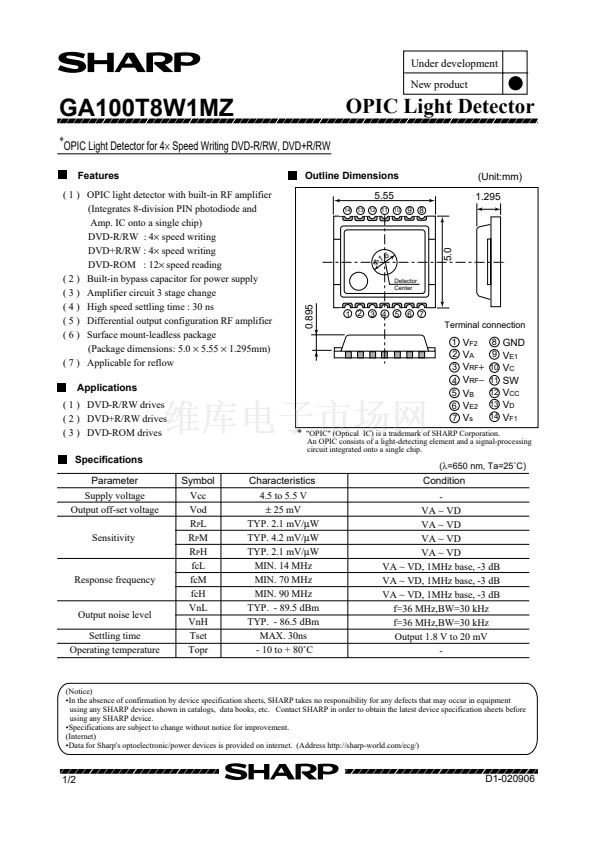

Under development
New product
GA100T8W1MZ
*
OPIC Light Detector for 4脳 Speed Writing DVD-R/RW, DVD+R/RW
Features
( 1 ) OPIC light detector with built-in RF amplifier
(Integrates 8-division PIN photodiode and
Amp. IC onto a single chip)
DVD-R/RW : 4脳 speed writing
DVD+R/RW : 4脳 speed writing
DVD-ROM : 12脳 speed reading
( 2 ) Built-in bypass capacitor for power supply
( 3 ) Amplifier circuit 3 stage change
( 4 ) High speed settling time : 30 ns
( 5 ) Differential output configuration RF amplifier
( 6 ) Surface mount-leadless package
(Package dimensions: 5.0
脳
5.55
脳
1.295mm)
( 7 ) Applicable for reflow
Applications
( 1 ) DVD-R/RW drives
( 2 ) DVD+R/RW drives
( 3 ) DVD-ROM drives
Specifications
Parameter
Supply voltage
Output off-set voltage
Sensitivity
Symbol
Vcc
Vod
R
P
L
R
P
M
R
P
H
fcL
fcM
fcH
VnL
VnH
Tset
Topr
Characteristics
4.5 to 5.5 V
鹵
25 mV
TYP. 2.1 mV/碌W
TYP. 4.2 mV/碌W
TYP. 2.1 mV/碌W
MIN. 14 MHz
MIN. 70 MHz
MIN. 90 MHz
TYP. - 89.5 dBm
TYP. - 86.5 dBm
MAX. 30ns
- 10 to + 80藲C
OPIC Light Detector
Outline Dimensions
5.55
14
13 12 11 10
(Unit:mm)
1.295
9 8
桅
1
.6
Detector
Center
0.895
1 2
3 4
5
6 7
5.0
Terminal connection
1
2
3
4
5
6
7
V
F2
8
GND
9
V
E1
V
A
V
RF
+
10
V
C
V
RF
鈭?/div>
11
SW
12
V
CC
V
B
V
E2
13
V
D
14
V
F1
V
s
*
"OPIC" (Optical IC) is a trademark of SHARP Corporation.
An OPIC consists of a light-detecting element and a signal-processing
circuit integrated onto a single chip.
(位=650 nm, Ta=25藲C)
Condition
-
VA ~ VD
VA ~ VD
VA ~ VD
VA ~ VD
VA ~ VD, 1MHz base, -3 dB
VA ~ VD, 1MHz base, -3 dB
VA ~ VD, 1MHz base, -3 dB
f=36 MHz,BW=30 kHz
f=36 MHz,BW=30 kHz
Output 1.8 V to 20 mV
-
Response frequency
Output noise level
Settling time
Operating temperature
(Notice)
鈥n the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment
using any SHARP devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before
using any SHARP device.
鈥pecifications are subject to change without notice for improvement.
(Internet)
鈥ata for Sharp's optoelectronic/power devices is provided on internet. (Address http://sharp-world.com/ecg/)
1/2
D1-020906
1
2
3
