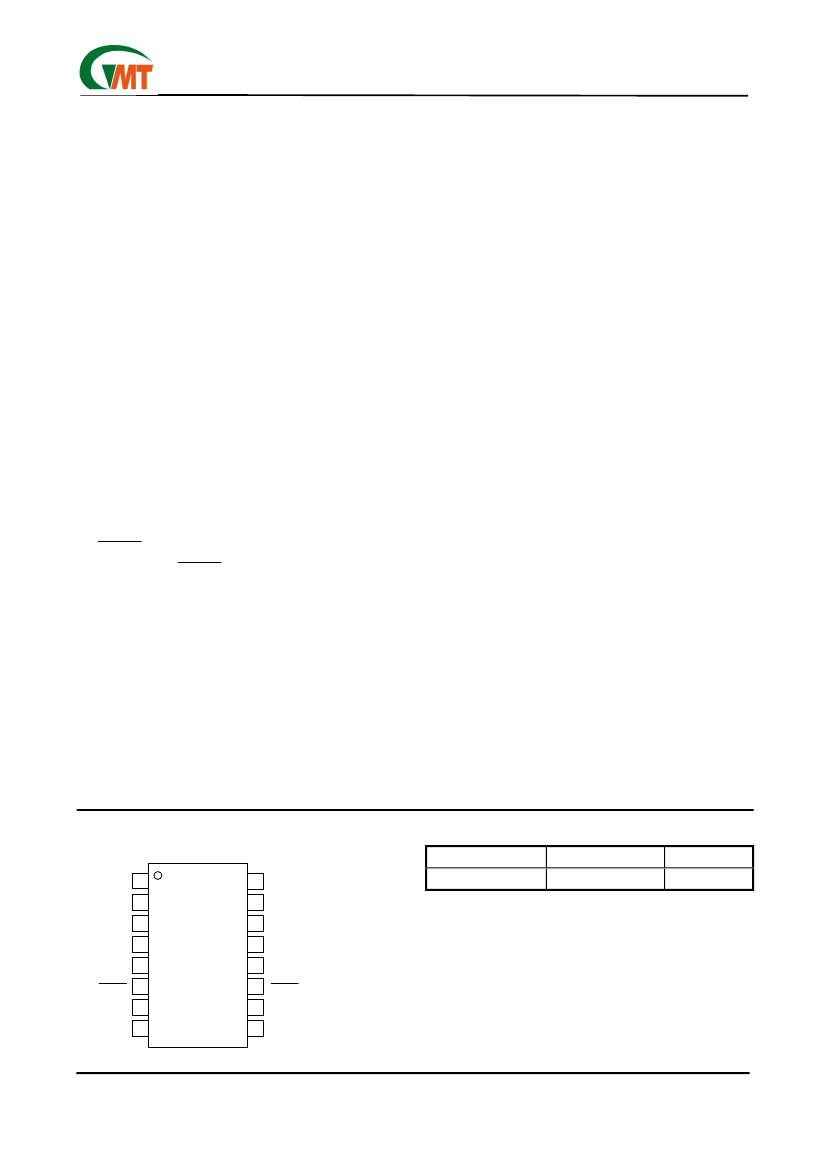

Global Mixed-mode Technology Inc.
Two Remote Temperature Sensors and One Fan Con-
troller with SMBus Serial Interface and System Reset
Circuit

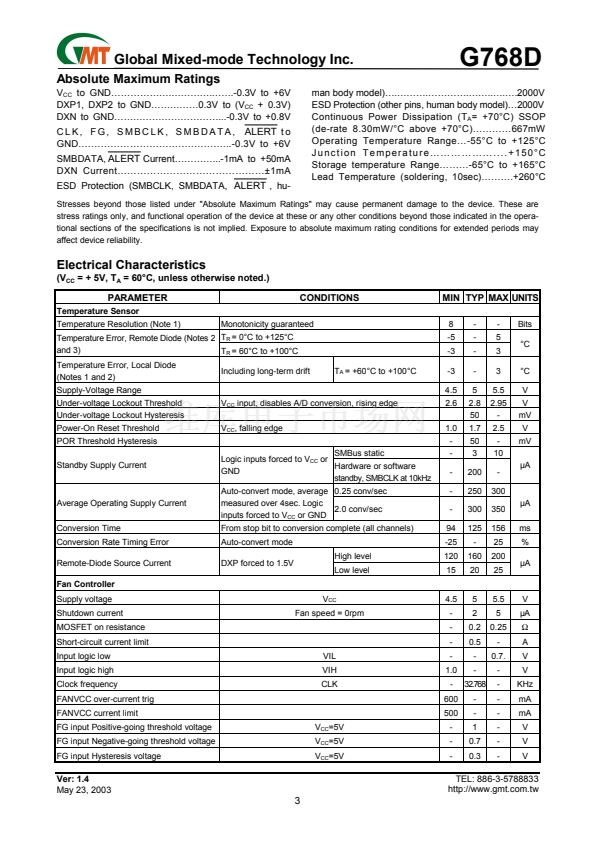

Features
Measures Two Remote Temperatures
No Calibration Required
SMBus 2-Wire Serial Interface
Programmable Under/Over-temperature Alarms
Programmable Thermal Shutdown Signal
Supports SMBus Alert Response
Accuracy: 鹵5擄C (-40擄C to + 125擄C, remote)
鹵3擄C (+60擄C to + 100擄C, remote)
+4.5V to +5.5V Supply Range
Fan speed control range: 3,000 to 30,000 rpm
Fan speed accuracy: 鹵2%
Built-in MOSFET switch
Internal current-limit and over-temperature
protection for fan control
Watchdog for fan control
Alarm for fan failure
Precision Monitoring of 5V Power-Supply
Voltage
340ms Typical Power-On Reset Pulse Width
RESET Output
Guaranteed RESET Valid to V
CC
=1V
Power Supply Transient Immunity
No External Components needed for reset
function
Small, 16-Pin SSOP Package
G768D

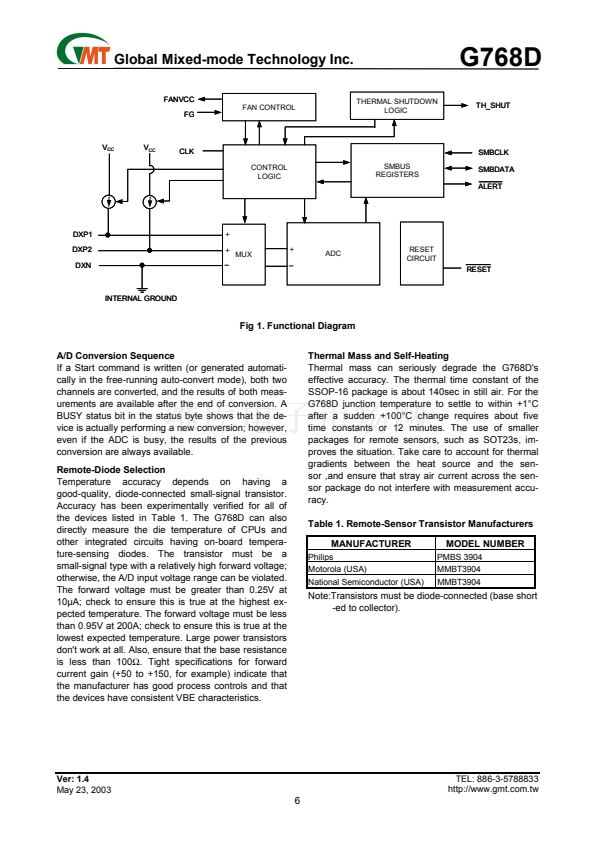

General Description
The G768D contains a precise digital thermometer, a
fan controller, and a system-reset circuit.
Except for one less fan controller, G768D is backward
compatible with G768B. G768D has 2 more functions,
fan-failure detection and programmable thermal shut-
down signal.

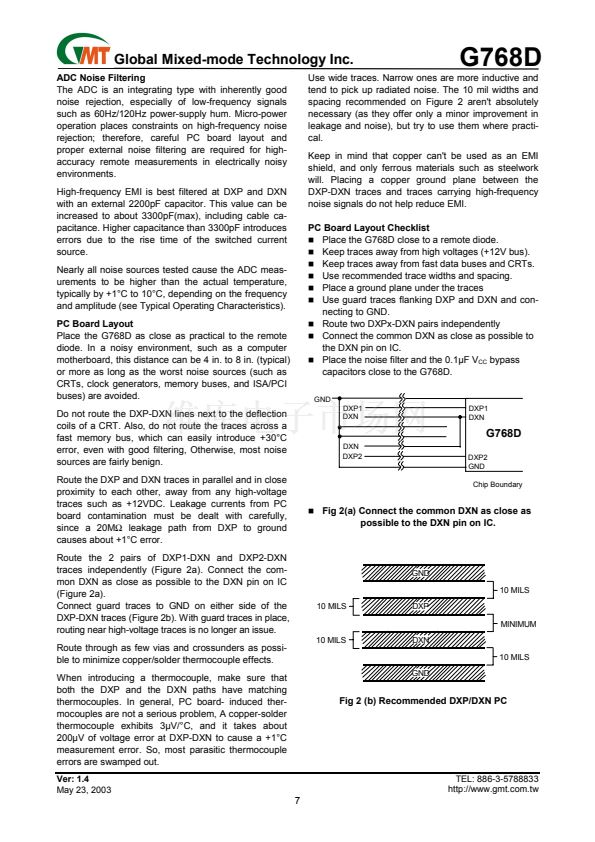

The thermometer reports the temperature of 2 remote
sensors. The remote sensors are diode-connected
transistors typically a low-cost, easily mounted
2N3904 NPN type that replace conventional thermis-
tors or thermocouples. Remote accuracy is 鹵5擄C for
multiple transistor manufacturers, with no calibration
needed. The remote channel can also measure the die
temperature of other ICs, such as microprocessors,
that contain an on-chip, diode-connected transistor.

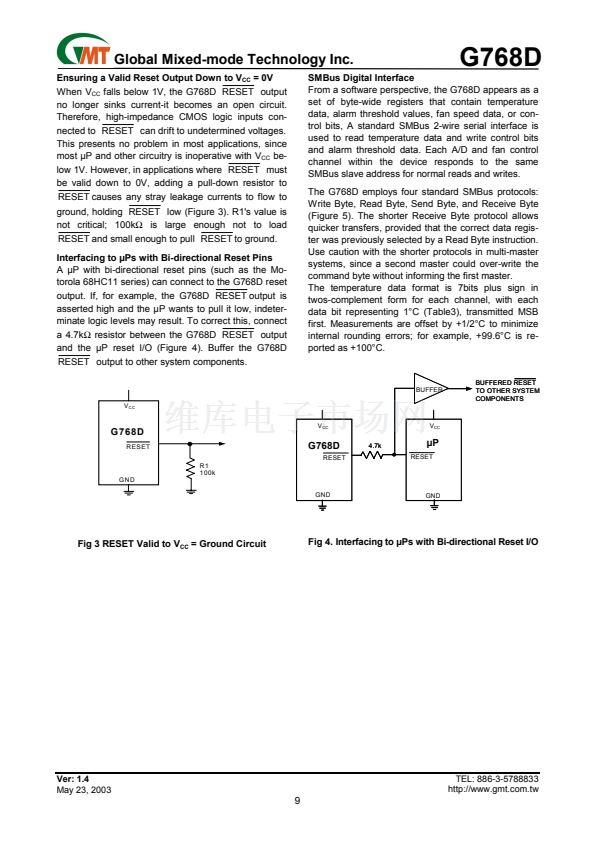

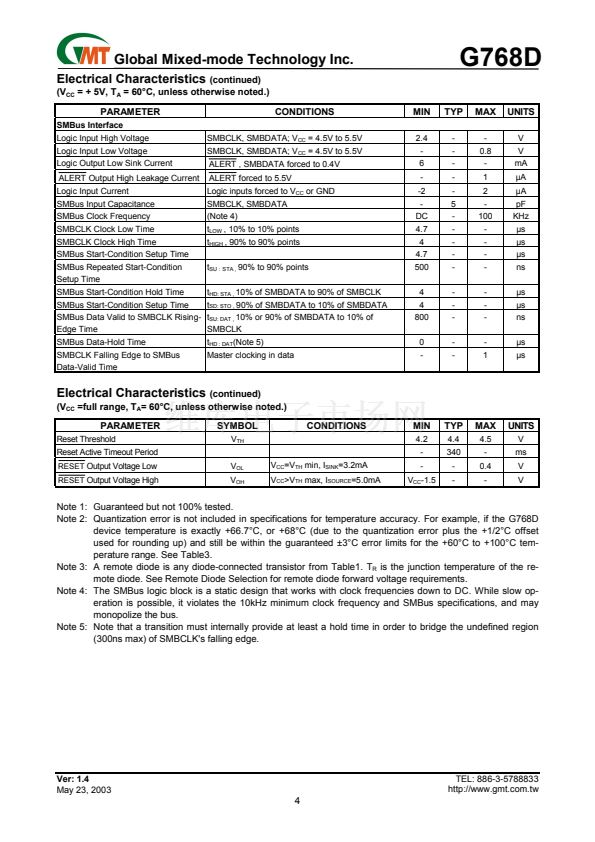

The 2-wire serial interface accepts standard System
Management Bus (SMBus
TM
) Write Byte, Read Byte,
Send Byte, and Receive Byte commands to program
the alarm thresholds and to read temperature data.
The data format is 7 bits plus sign, with each bit cor-
responding to 1擄C, in two鈥檚-complement format.
Measurements can be done automatically and
autonomously, with the conversion rate programmed
by the user or programmed to operate in a single-shot
mode. The adjustable rate allows the user to control
the supply-current drain.

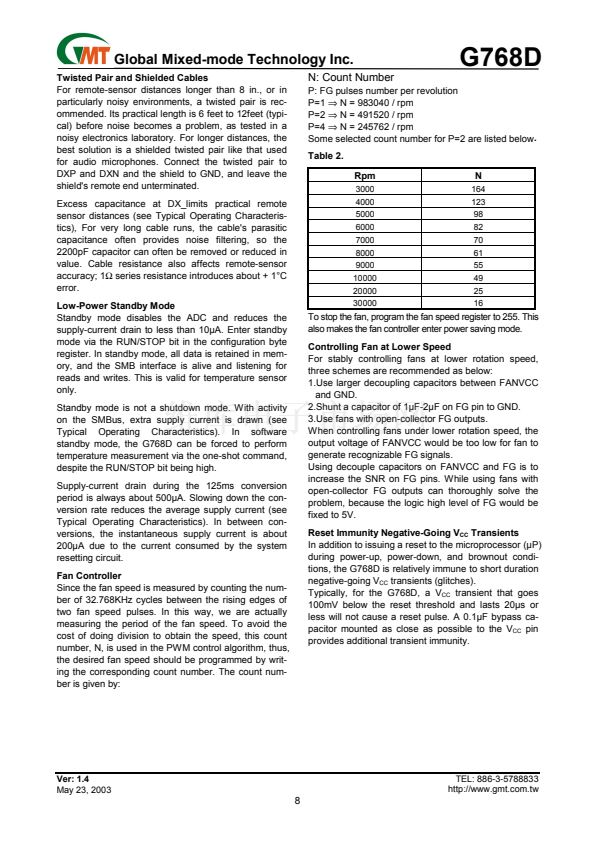

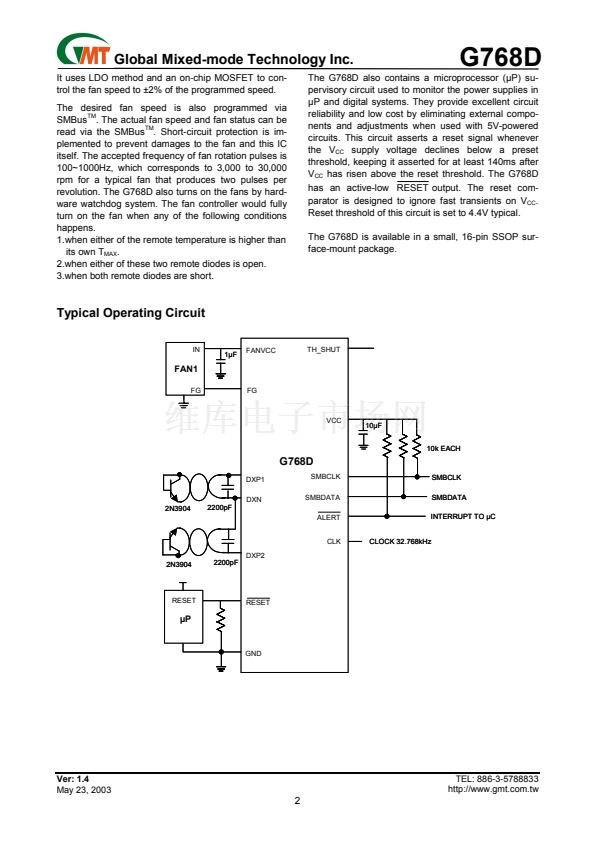

G768D also contains a fan speed controller. It connects
directly to the fans and performs closed-loop control of
the fan speed independently. The only external compo-
nent required is a 10碌F capacitor per channel. It deter-
mines the current fan speed based on the fan rotation
pulses and an externally supplied 32.768KHz clock.
Applications
Desktop and Notebook
Central Office Computers
Telecom Equipment
Smart Battery Packs
Test and Measurement
LAN Servers
Multi-Chip Modules
Industrial Controls
Pin Configuration
G768D
FANVCC
Vcc
DXP1
DXN
DXP2
RESET
DGND
AGND
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
TH_SHUT
Vcc
SMBCLK
NC
SMBDATA
ALERT
FG
CLK

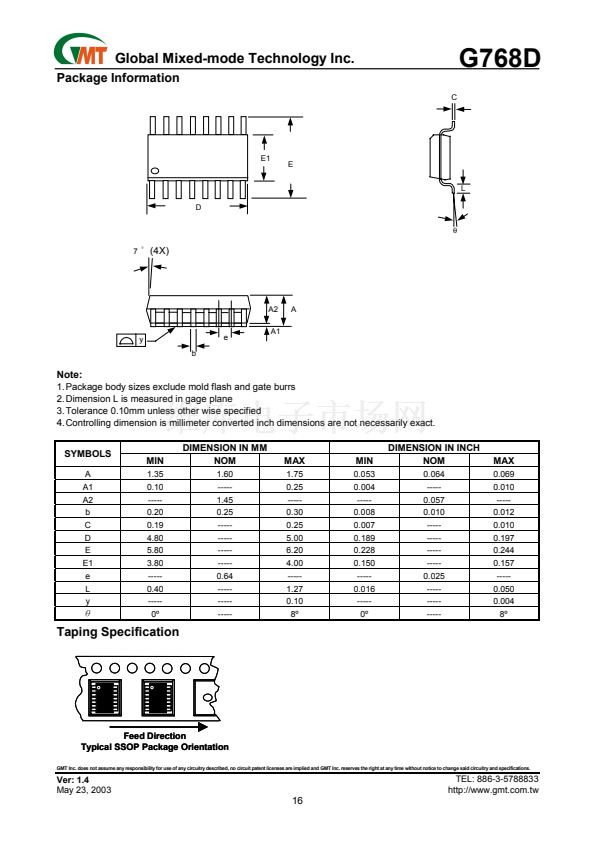

Ordering Information
ORDER NUMBER
G768D
TEMP. RANGE
-55擄C to +125擄C
PACKAGE
SSOP-16L
SSOP-16L
Ver: 1.4
May 23, 2003
TEL: 886-3-5788833
http://www.gmt.com.tw
1
