Power PCB Relay
s
Reduced board space ideal for high-
G6D
density mounting (45% smaller than
the surface area of G6B)
s
Slim package: measures 6.5 W x 17.5 L
x 12.5 H mm (0.26 x 0.69 x 0.49 in)
s
Switches loads up to 5 A, 250 VAC/
30 VDC
s
Fully sealed construction allows
automatic soldering and cleaning
s
Long service life: up to 300,000 opera-
tions with a 2 A, 250 VAC/30 VDC load
s
Rated for D150 pilot duty by UL, CSA
s
Optional mounting socket simplifies
relay installation and servicing of
finished equipment
Ordering Information
To Order: Select the part number and add the desired coil voltage rating, (e.g., G6D-1A-
DC12
).
Type
Standard
Contact form
SPST-NO
Terminal
PCB
Construction
Fully sealed
Part number
G6D-1A
s
ACCESSORIES
Connecting Socket
Description
PCB mount socket for G6D relay
Part number
P6D-04P

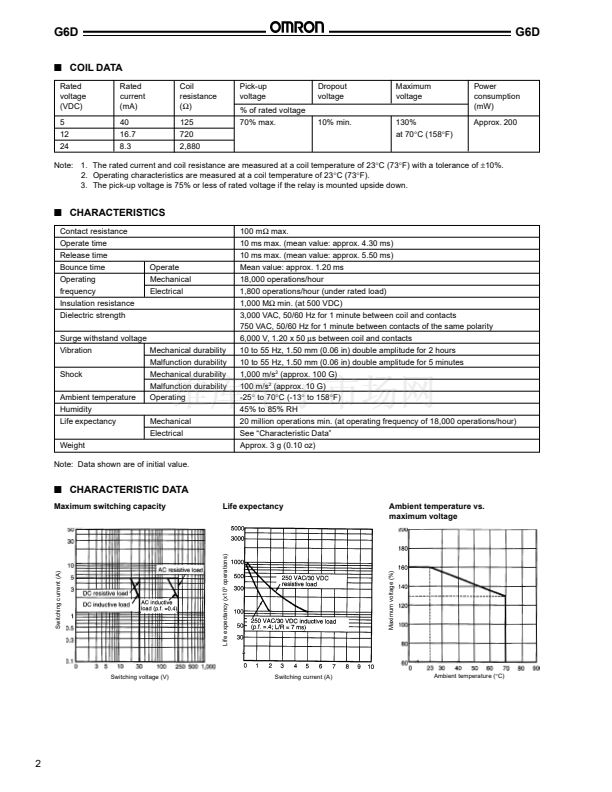

Specifications
s
CONTACT DATA
Load
Rated load
Contact material
Carry current
Max. operating voltage
Max. operating current
Max. switching capacity
Min. permissible load
Resistive load (p.f. = 1)
5 A at 250 VAC, 30 VDC
Ag alloy
5A
250 VAC, 30 VDC
5A
1,250 VA, 150 W
10 mA at 5 VDC
Inductive load (p.f. = 0.40, L/R = 7 ms)
2 A at 250 VAC, 30 VDC
500 VA, 60 W
