Power PCB Relay

Low-cost relay for electric appliances

PCB + Quick Connect Terminals

Withstands surges of 10,000 V for

G5J

1 minute

TV 8 available

Ordering Information

To Order: Select the part number and add the desired coil voltage rating, (e.g., G5J-1-TP-M-DC12).

Terminal

PCB + Quick Connect

Contact form

SPST-NO

Construction

Unsealed

Part number

G5J-1-TP-M

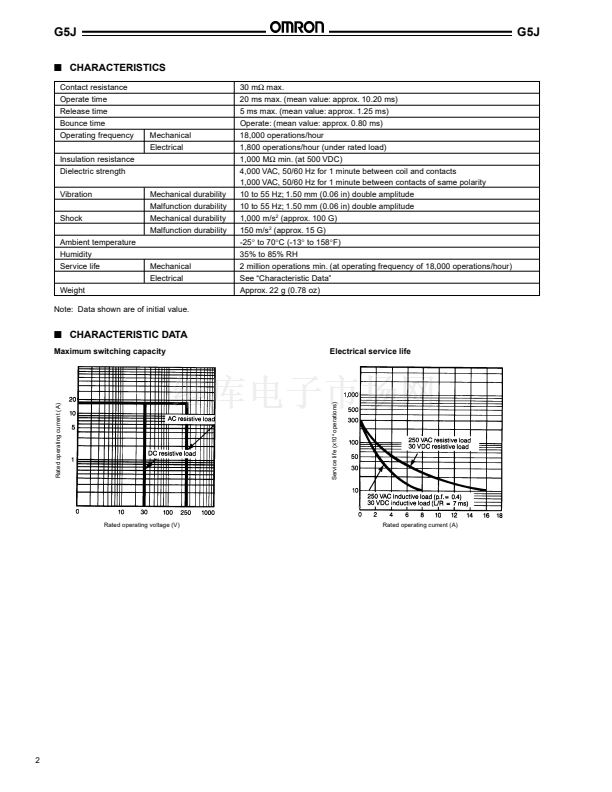

Specifications

CONTACT DATA

Load

Rated load

Contact material

Carry current

Max. operating voltage

Max. operating current

Max. switching capacity

Min. permissible load

Resistive load (p.f. = 1)

16 A at 250 VAC, 16 A at 30 VDC

AgCdO

16 A

250 VAC, 30 VDC

16 A

4,000 VA, 480 W

100 mA, 5 VDC

COIL DATA

Rated

voltage

(VDC)

Rated

current

(mA)

138.9

58.3

38.9

29.2

Coil

resistance

(鈩?

206

463

822

Coil inductance

(Ref. value) (H)

Armature OFF

鈥?/div>

1.74

鈥?/div>

6.74

Armature ON

鈥?/div>

1.44

鈥?/div>

5.22

Pick-up

voltage

70% max.

Dropout

voltage

10% min.

Maximum

voltage

110%

at 70擄C

(158擄F)

Power

consumption

(mW)

Approx. 700

% of rated voltage
